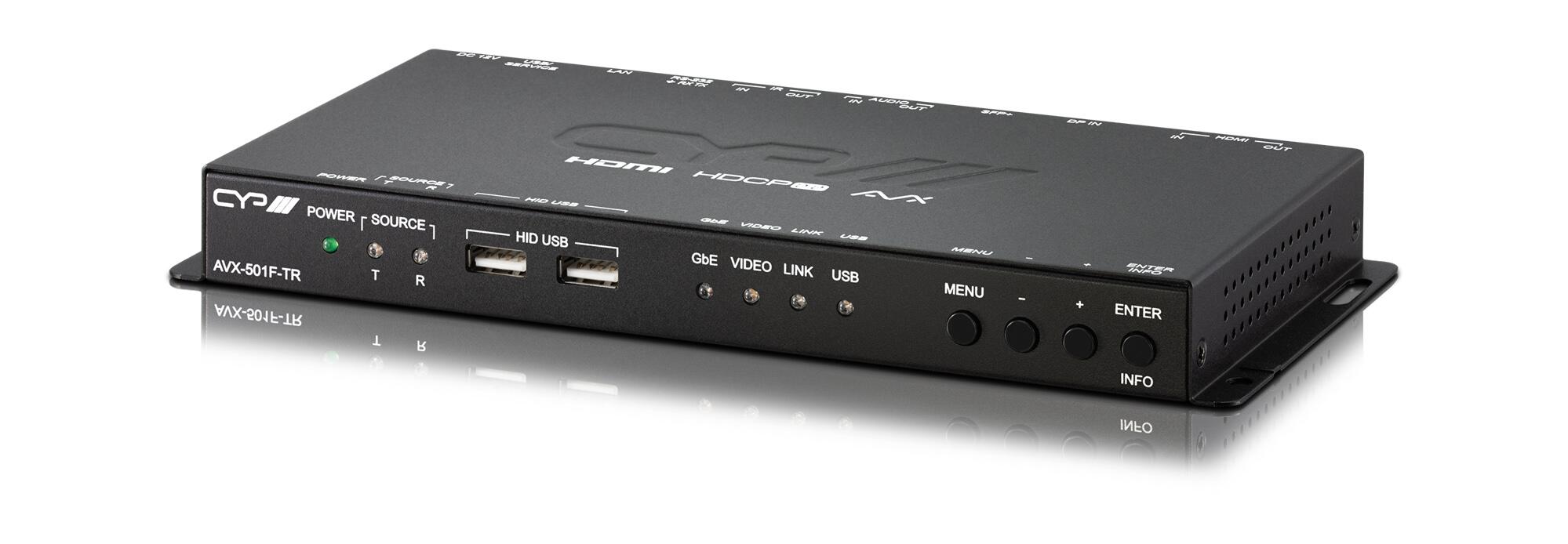

AVX-501F-TR – AVX Full 4K switching AV over Fiber Transceiver with USB {End of Life}

HDMI 2.0 and DVI 1.0 compatible: HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant: HDCP 2.2 and HDCP 1.x compliant 1 HDMI and 1 DisplayPort input: 1 HDMI and 1 DisplayPort input 1 HDMI output (in TX mode this output can be used as a local monitor out) : 1 HDMI output Supports up to 4K60, 4:4:4, 8-Bit (18Gbps) Point to point extension of audio, video, Gigabit Ethernet, USB and control signals Almost Zero latency transmission for all signal types Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K Audio down-mixing engine from multi-channel PCM audio to stereo Ultra-light compression, lossless for most content Extension up to 30km (maximum distance depends on the SFP module and type of fiber used) Up to 300m transmission with supplied SFP module (and OM3 fiber cable, not supplied) Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x Display Port [1x Display Port Uncompressed AV]1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x Phoenix (3 pin) [1x RS-232]1x RJ45 [1x LAN Serving]2x USB Type A [2x USB Hub Propriety Data]1x USB Mini B [1x Service Port Propriety Data] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x SFP [1x SFP LC/PC-LC/PC Duplex MM OM3]1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] POE PSU PoE PSU 12V/3A Dimensions 231.5mm [W] x 25mm [H] x 108mm [D] Net Weight 580g Gross Weight 1.74kg
