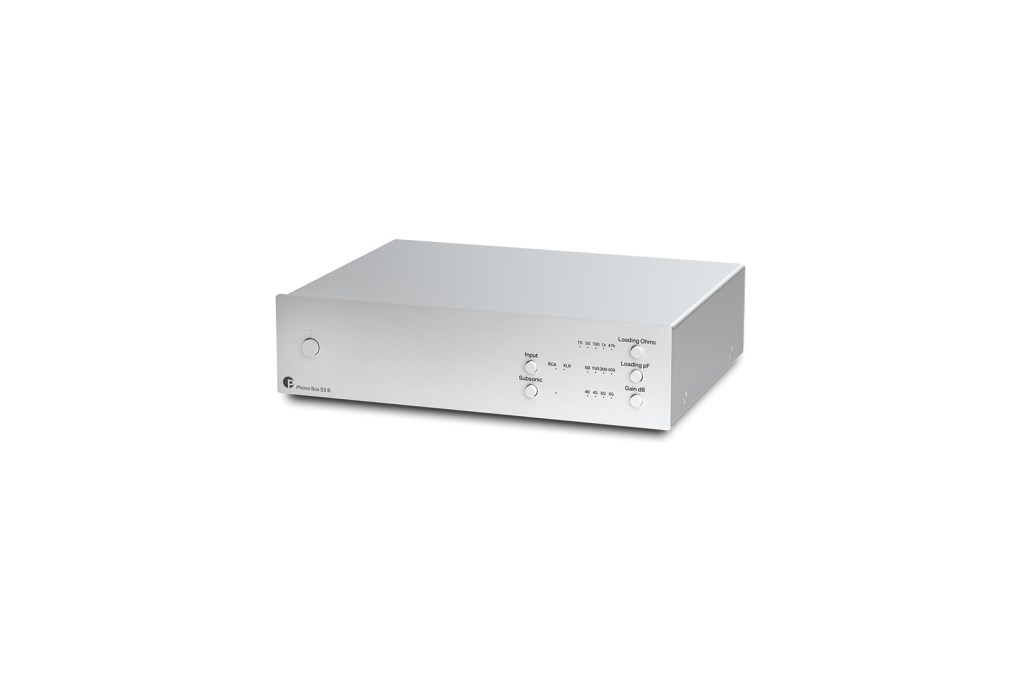

Description The new S3 phono stage. The symmetrical design is the real standout feature! Connect your turntable with the 5-pin mini XLR cable & profit of the balanced signal path. The gain stage of the new Phono Box S3 B uses a fully discrete layout. A discrete circuit is composed of electronic components which are disparate, individual devices. Semi-passive EQ After treating the balanced /- signals independently they are added back together and are processed by thesemi-passive RIAA equalization stage. By keeping the gain stage fully symmetrical, we can optimize the signal-to-noise ratios and keep interference to a minimum, giving the EQ section the best source to work its magic on. Input impedance10, 50, 100, 1k, 47k ohmsInput capacitance50, 150, 300, 400 pFGain ( 6dB using XLR Out)40, 45, 60, 65 dBSNR MM (40dB)103dBV, 110dBV – ‚A‘ weightedSNR MC (60dB)85dBV, 90dBV – ‚A‘ weightedTHD at 1 kHz<0,001% MM, < 0,005% MCTHD (20Hz-20kHz)<0,008% MM, < 0,01% MCRIAA-equalization curve accuracy<0,3dB / 20Hz – 20kHzSubsonic filterat 20Hz with 18dB/octaveInput1x 5-pin mini XLR / 1x pair RCA phono socketsLine-level output1x pair RCA, 1x pair XLRPower supply DC18V/500mAPower consumption18V/170mA DC, <0.5 W in standbyDimensions206 x 55 x 153 (164 with sockets) mmWeight930g without power supply
