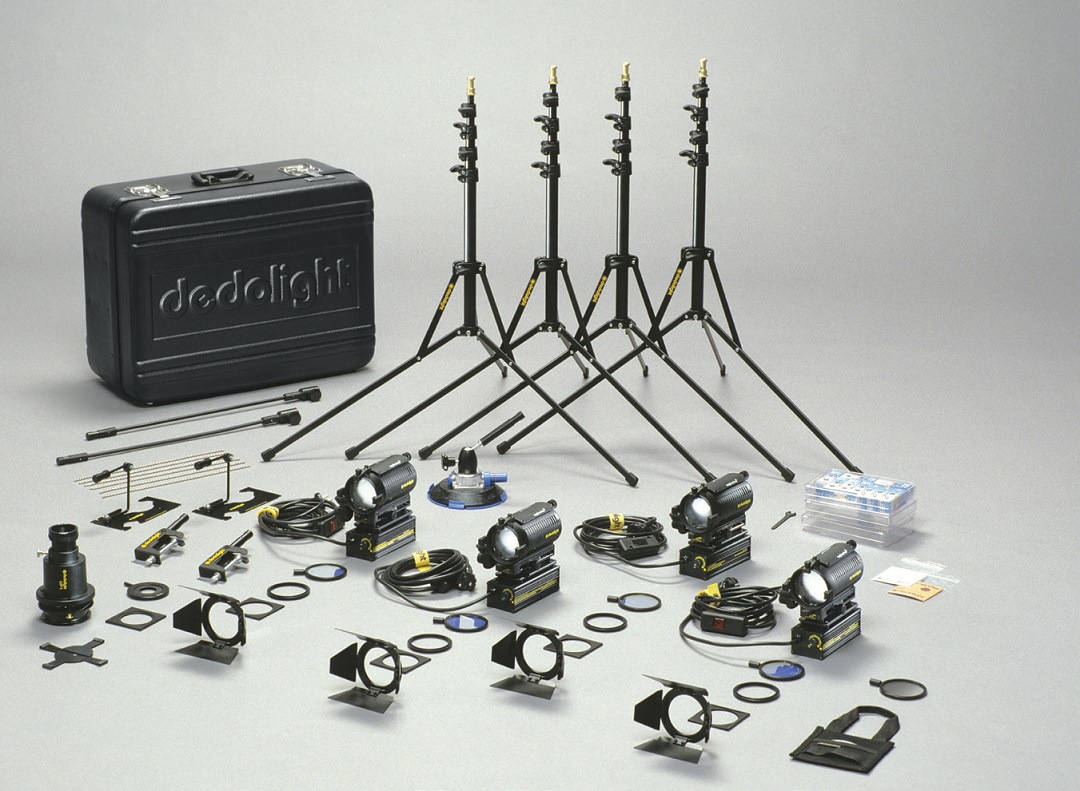

Dedolight 4-light Kit (DL150) Manufacturer: Dedolight Website (Commercial/Pro): Dedolight Commercial Website Product Overview: This Dedolight 150W Tungsten Master 4-Light Kit enables a photographer or videographer ample lighting with full dimming, color and shape control over the lights. It’s a complete lighting kit centered around the DLH4 light head. The DLH4 is extremely compact, yet with its dual-lens concept provides superb light output. With a 150W lamp in the flood position, its light output is greater than a 300W Fresnel studio fixture. In the spot position, it equals or exceeds a 1000W Fresnel studio fixture. The inexpensive lamps provide exceptional economy, coupled with outstanding life expectancy. The slide-control dimmers operate from 220-240 Volts AC. Each light (output) can be individually and independently switched in four distinct steps, each increasing color temperature and output. The multi-voltage DIMTA3 power supply allows individual dimming of the 4 lamp heads. Each of the four connector sockets has its own individual four-position control knob which changes the color temperature of the light (from 3400° to 3200° or 3000° Kelvin) and can turn off all power to the head it controls. This kit supplies barndoors, warming, cooling and diffusion gels, a projection attachment, framing shutter blades, iris, gobo holder, innovative grip equipment for mounting heads in awkward places, light stands, many extra bulbs and a hard transport case. Powering Options The DLH4 offers a wide range of powering options, from battery to AC power with color temperature control Mirror A high quality mirror reflects light through meniscus and condenser lenses, providing a much higher light output than would be expected Advanced Optical Design Due to an advanced optical design, these heads create a flat, even bright light, with a narrow beam spread Clean Beam Precision lighting by a clean beam with practically no stray light Special Bulbs 150 watt special blackened bulbs work efficiently with the spotlights’ design Rating Each Fixture: 150 watts max as suppliedEach Dimmer: 230VAC Socket (Lampholder) 2-pin G6.35 Lens (Condenser) Dual lens concept Reflector (Mirror) High quality mirror Mounting Fits any standard 5/8″ stand or stud Yoke Not Applicable Cable 4- 26.2′ (8 m) head to dimmer Focusing Continuously variable Weight Each Fixture: 1.2 lbs (0.54 kg)Each Dimmer: 1.1 lb (0.5 kg) Dimensions Each Fixture: 6.75 x 4.9 x 4.25″ (17 x 12.4 x 10 cm) Each Dimmer: 6.7 x 2.8 x 1.6″ (17 x 7 x 4 cm) Kit Weight 37.5 lbs (17 kg) Kit Dimensions 22.5 x 17 x 8.75″ (57 x 43 x 22 cm)
