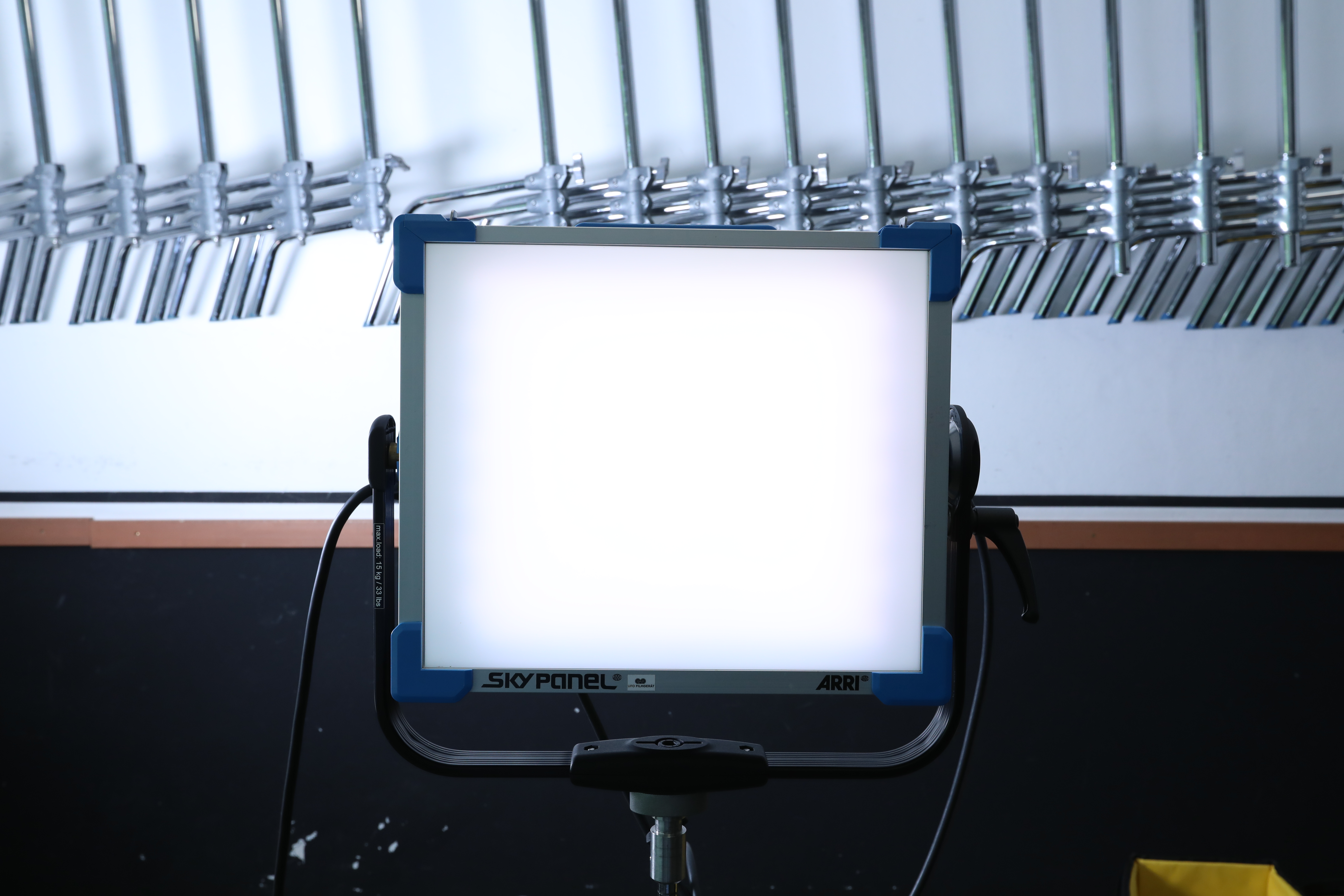

ARRI SkyPanel S30-C LED Softlight Manufacturer: ARRI Website (Commercial/Pro): ARRI Commercial Website Product ID: MP13128 Alternative Product Name: Sky Panel, LED Light Product Overview: The new ARRI SkyPanel is an exceptionally versatile LED soft light – compact, fully tuneable and delivering light of unsurpassed power and quality. Because different application areas call for different lighting needs, SkyPanel has been designed as a series of fixtures. The S30 is small and more portable version. Beam Angle 110° Color Temperature 2800 to 10,000K ± 100K (With 200K Shift over Lifetime) Color Accuracy Standard CRI 95 TLCI 91 Cooling System None Dimming Yes, 0 – 100% (Continuous) Display None Housing Material Not Specified by Manufacturer Lumens Not Specified by Manufacturer Photometrics Not Specified by Manufacturer Expected Lamp Life 50,000 Hours (L70) Rectangular Panel Size 14 x 11.8″ / 35.5 x 30.0 cm Fixture Dimensions 15.6 x 13.5 x 5.2″ / 39.7 x 34.2 x 13.3 cm 20.0 x 22.0 x 5.2″ / 50.7 x 55.9 x 13.3 cm (Including Yoke) Fixture Weight 17.2 lb / 7.8 kg (Including Yoke) CONNECTORS Battery Plate Not Specified by Manufacturer Power Input Connector 3-Pin XLR, 4-Pin XLR DMX Connector 5-Pin XLR, EtherCON Service Connector USB Type-A MOUNTING Fixture Mount Combination 1-1/8″ Stud and 5/8″ Receiver Accessory Mount None YOKE Yoke Material Aluminum Yoke Type Yoke/Bracket Tilt 180° REMOTE OPERATION Remote Control Type DMX POWER AC Input Power 90 to 250 VAC, 50 / 60 Hz DC Input Power 48 VDC Power Source AC, External Battery Max Power Consumption 200 W CABLE Cable Type powerCON to NEMA 5-15 POWER SUPPLY Power Supply Power Connector powerCON Power Supply Dimensions 15.0 x 4.6 x 3.5″ / 38.3 x 11.6 x 9.0 cm Power Supply Weight 5.5 lb / 2.5 kg PHYSICAL IP Rating IP20 Operating Temperature -4 to 113°F / -20 to 45°C
