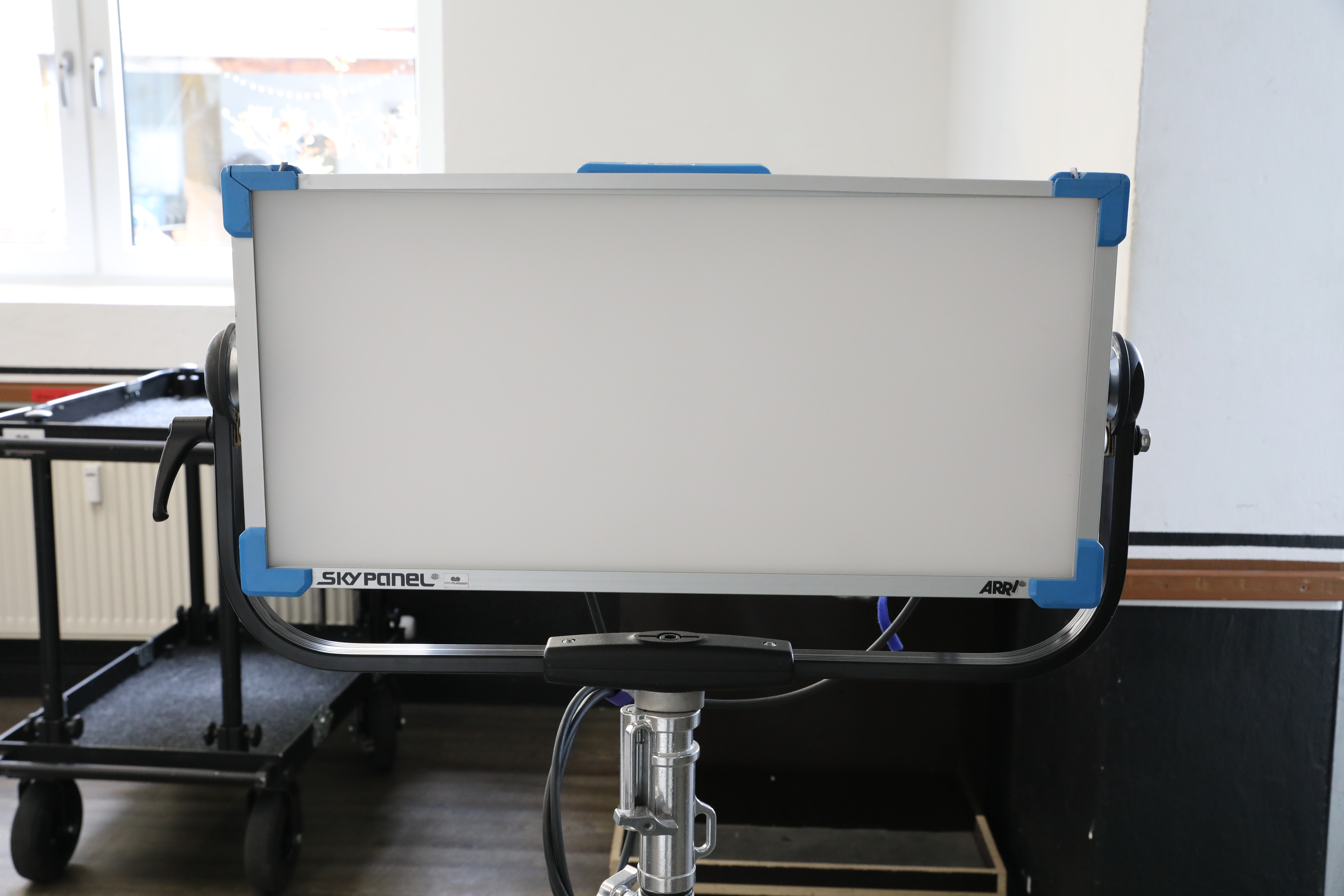

ARRI SkyPanel S60-C LED Softlight Manufacturer: ARRI Website (Commercial/Pro): ARRI Commercial Website Product ID: MP13499 Alternative Product Name: Sky Panel, LED Light Product Overview: The SkyPanel S60 features a light aperture of 645 x 300 mm and accommodates the vast majority of applications. Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. This range of illumination and color gives users an unprecedented amount of control. Beam Angle 115° Color Temperature 2800 to 10,000K ± 100K (With 200K Shift over Lifetime) Color Accuracy Standard CRI 95 Cooling System None Dimming Yes, 0 – 100% (Continuous) Display None Housing Material Not Specified by Manufacturer Lumens Not Specified by Manufacturer Photometrics Not Specified by Manufacturer Expected Lamp Life 50,000 Hours Rectangular Panel Size 25.4 x 11.8″ / 64.5 x 30 cm Fixture Dimensions 27.0 x 17.0 x 5.2″ / 688.0 x 433.0 x 133.0 mm Fixture Weight 26.5 lb / 12 kg Connectors Battery Plate Not Specified by Manufacturer Power Input Connector 3-Pin XLR DMX Connector 5-Pin XLR, EtherCON Service Connector USB Type-A Mounting Yoke Mount TVMP/ Hex Bolt Fixture Mount 1-1/8″ Stud Accessory Mount None Yoke Yoke Material Steel Yoke Type Not Specified by Manufacturer Remote Operation Remote Control Type DMX Power AC Input Power 90 to 250 VAC, 50 / 60 Hz DC Input Power 48 VDC Power Source AC, External Battery Max Power Consumption Not Specified by Manufacturer Cable Cable Type powerCON to NEMA 5-15 Power Supply Power Supply Power Connector powerCON Power Supply Weight 11 lb / 5.0 kg Physical IP Rating -4 to 113°F / -20 to 45°C
