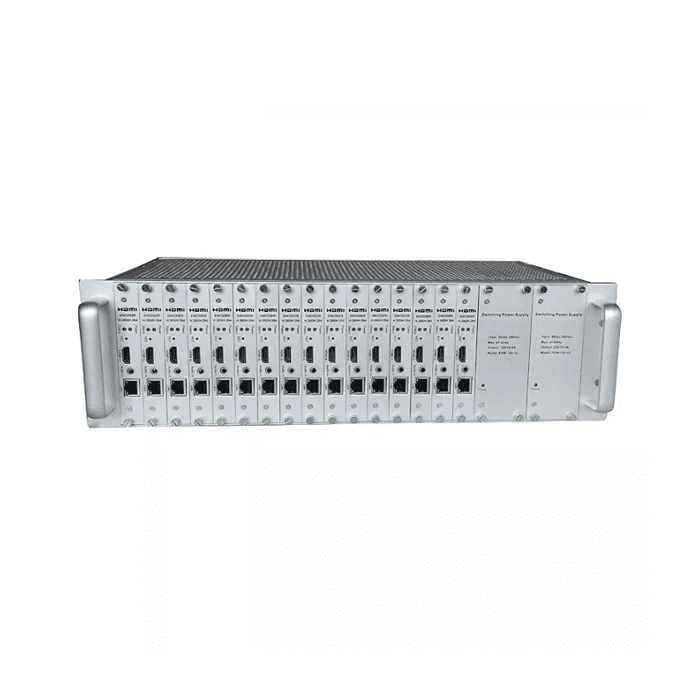

Weight 8 kg Dimensions 30 × 48.2 × 13.3 cm Model SBS VE1630 Video Input interface 16×HDMI Video Support resolution 1080P\1080i\720P ,1600×1200\1400×1050\1440×900\1280×1024\ 1280×960\1280×800\1024×768\800×600 etc. Frame rate 30/60 frame Output interface 16×Ethernet port(RJ45) Video encoding H.265 Main Profile H.264 Baseline Profile H.264 Main Profile H.264 High Profile Code Rate control 16kbps- 12Mbps Code Rate CBR/VBR Audio Input interface 16×External audio Audio encoding ACC, MP3 Sampling rate Auto Audio Bit-rate Option 32k,44.1K,48K,64K,96K,128K,160K,192K,384K Audio Sampling Accuracy 24 Bit Audio Data-rate 64Kb/s to 384Kb/s Network RJ45 10M/1000M Ethernet port Program streaming HTTP, RTSP, RTMP, RTMPS,HLS, FLV,ONVIF(UDP/RTP) Control Panel Web panel ( Language is English), remote upgrade Dimension(W*L*H) 483*300*130mm Gross Weight 8kg Temperature 0 ~ 45℃(for working),-20~60℃(for storing) Humidity <90%, non-condensing Input Voltage AC 110V~220V Power Consumption 5W/Channel
