8 Ports GPON OLT Photon

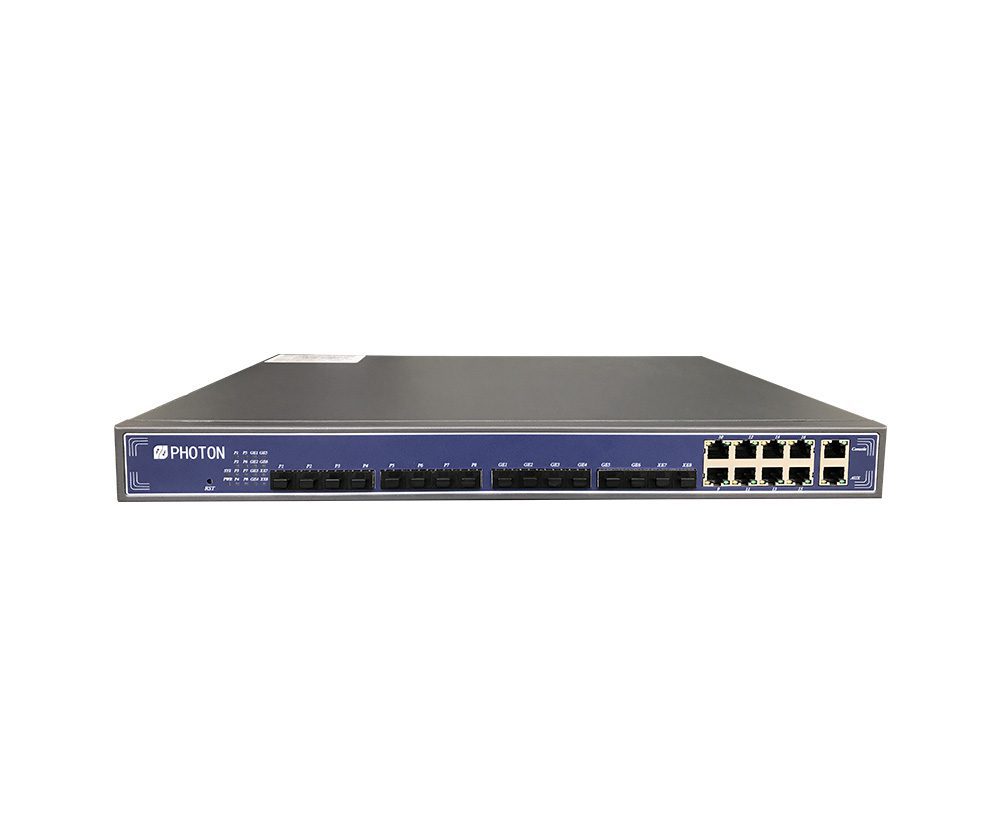

Product Description PTF3708E GPON OLT, which provides 8 GPON ports, 8 GE copper RJ45 ethernet ports, 6 SFP(GE) and 2SFP (10GE) optical uplink ports , it has high reliability, highly dense broadband access and robust switching and routing abilities, is a new generation of broadband and multiservice access OLT devices oriented towards the service-integrated network. PTF3708E OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time. Independent 1U chassis equipment with 8 PON ports, each port supports up to 128 ONUs, the whole device supports up to 1024 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It is appropriate to be deployed in compact room environment. The OLTs can also be used for “Triple-Play” applications. Features: Ø 1U 19 inch standard box GPON OLT with 8 PON ports Ø Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements Ø L3 function, support static route, ARP proxy, hardware Host Routes, hardware Subnet Routes Ø Tcont DBA, Gemport traffic Ø QoS based on port, VID, TOS and MAC address(16K Mac address) Ø Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ Ø Support IGMP snooping, IGMP Proxy Ø Specialized design for system breakdown prevention to maintain stable system Ø Support port-based rate limitation and bandwidth control Ø Support data encryption, multi-cast, port VLAN, separation, RSTP, etc Ø Support Dynamic Bandwidth Allocation (DBA) Ø Support ONU auto-discovery/link detection/remote upgrade of software Ø Support ONT automatically discovery, auto configuration Ø Support ONT firmware can be auto upgraded, download ONT firmware to OLT from web/tftp/ftp Ø Support SNMP, telnet, CLI, OMCI/OAM and Web management Ø Support power-off alarm function, easy for link problem detection Ø Support broadcasting storm resistance function Ø Firewall function Ø Support remote software upgrade Ø Two power supply redundancy design Technical parameters Items Unit Specifications PON standard. GPON ITU-T G.984.x PON interface 8*GPON SFP Ports (Class C ),  Receiving sensitivity: ≤-30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: 3～ 7dBmTransmission distance: 20KM. Max splitting ratio1:128 Speed Downstream 1.244G Upstream 2.488G Wavelength nm Tx1310, Rx 1490 Uplink GE 8*copper Ethernet ports 10/100/1000M auto-negotiation SFP GE 6*SFP(GE) SFP 10GE 2* SFP (10GE) Layer 3 Support static route, ARP proxy, hardware Host Routes, hardware Subnet Routes Management Ports 1*10/100BASE-T out-band port, 1*CONSOLE port Management Mode SNMP、Telnet、CLI、WEB、SSH v1/v2 Backplane Gbps 128 MAC table K 16 Operating condition ℃ Operating temp: -5 ~ 55 Storing condition ℃ Storing temp: -40 ~ 85 Humidity % 5~90(non-condensing) Power consumption W ≤45 Dimension mm 442mm×320mm×44mm（L×W×H） Net weight Kg 3.1Kg Shipping packaging Description Quantity Weight Carton Size Shipping packaging 1pcs /ctn 6.94kg/ctn 575*500*115mm 5pcs /ctn 34.95kg/ctn 645*597*525mm
