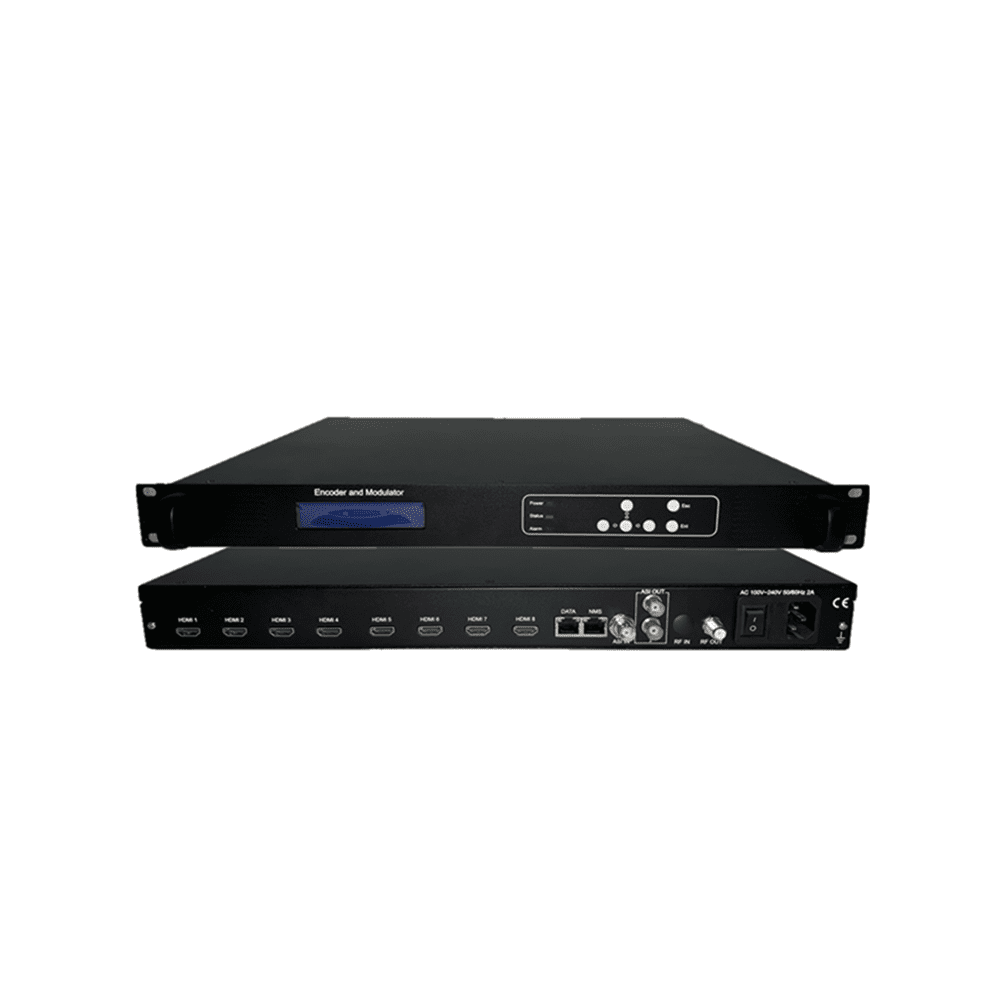

Key Features ●4/8 HD MI input, MPEG-4 AVC/H.264 Video encoding ●IP output over UDP and RTP protocol, support unicast and multicast ●2 carrier RF output ,(DVB-C、DVB-T、ATSC、ISDB-T optional) ●1 ASI input for re-multiplexing ●2 ASI Independent output as copy of MPTS ●Support “Null PKT Filter” function ●Support PID Remapping/ PCR accurate adjusting ●PID pass ●LCD、key function ●Control via web management, and easy updates via web Specification Input 4/8 HD MI (support HDCP) ASI input IP input over UDP and RTP protocol Output 2 carrier RF output（DVB-C/DVB-T/ATSC/ISDBT/DMBT） 2 ASI output (optional) IP output（SPTS and MPTS）UDP and RTP protocol Video Encoding MPEG-4 AVC/H.264 Resolution 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, Bit-rate 1Mbps~19Mbps（each channel) Rate Control CBR/VBR GOP Structure IBBP Audio Encoding MPEG1 Layer2 Sampling rate 44.1KHz Bit-rate 64kbps,96kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps Resolution 24-bit Audio Gain 0-255 Adjustable Multiplexing Maximum PID Remapping 180 output pids per channel Function PID remapping ( automatically or manually) Accurate PCR adjusting Modulator DVB-T RF output 2 DVB-T carrier Standard EN300744 FFT mode 2K,4K,8K Bandwidth 6M, 7M, 8M Constellation QPSK, 16QAM, 64QAM Guard Interval 1/4, 1/8, 1/16, 1/32 FEC 1/2, 2/3, 3/4, 5/6, 7/8 MER ≥42 dB RF frequency 50~960MHz, 1KHz step RFoutput level -34~ -10 dBm, 0.1db step DVB-C RF output 2 DVB-C carrier Standard EN300 429/ITU-T J.83A/B/C MER ≥40db RF frequency 50~960MHz, 1KHz step RFoutput level -26~-1dBm , 0.1dBm step Symbol Rate 5.0Msps~7.0Msps,1ksps stepd J.83A J.83B/J.83C Constellation 16/32/64/128/256QAM 64/256 QAM Bandwidth 8M 6M ATSC RF output 2 ATSC carrier Standard ATSC A/53 Bandwidth 6M Constellation 8VSB FEC RS(208 188) Trellis MER ACL ≥40dB -55 dBc RF frequency 50~960MHz, 1KHz step RF output level -20~ 10dbm (for all carriers), 0.5db stepping ISDB-T RF output 2 ISDB-T carrier Standard ARIB STD-B31 Bandwidth 6M Constellation QPSK, 16QAM, 64QAM Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode 2K, 4K, 8K Code rate 1/2, 2/3, 3/4, 5/6, 7/8 MER ≥40dB RF frequency 50~960MHz, 1KHz step RF output level -20dBm~ 10dBm, 0.1dB stepping System function Network management(WEB) Chinese and English language Ethernet software upgrade Miscellaneous Dimension(W×L×H) 482mm×455mm×44.5mm weight 7 kg Environment 0~45℃(work)；-20~80℃(storage) Power requirements AC100~240V，50/60Hz
