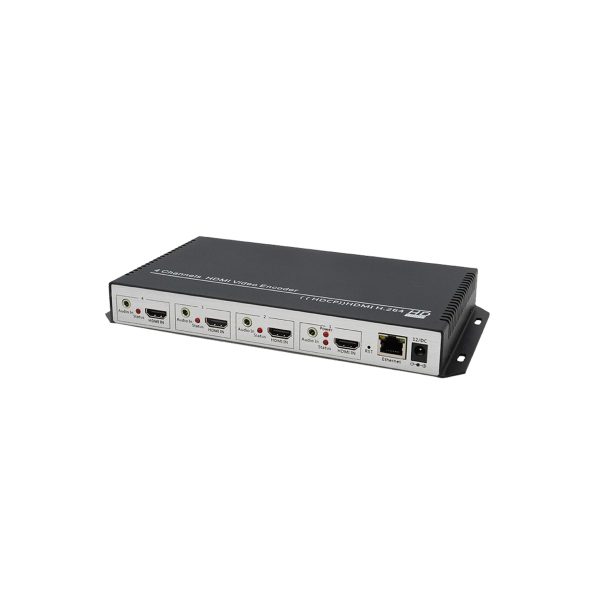

4 Channel Video Encoder Orivision ZY-EH404

4 Channel video encoder is a high-definition video encoding and multiplexing professional product, the product has 4 channels HDMI video input and audio input, each channel HDMI input support 1 main-stream and 1 sub-stream output, support H.264 encoding format, and encoding of video and audio. Output TS dual bit stream design, according to different requirement to set the output of each channel resolution, Support for maximum resolution of 4K . The device has a high integration, low cost advantages, can be widely used in various digital television broadcast system. Support 1U structure. ·H.264, Baseline, Profile encoding ·H.264, Main, Profile encoding ·H.264, High, Profile encoding ·Audio encoding supports AAC/MP3 ·CBR/VBR/ABR rate control, 16kbit/s ~ 25Mbit/s ·Network interface adopts 100/1000M adaptive / full duplex mode ·4 channel HDMI input, 4 channel audio input ·Supports high-definition video input of up to 4K@30hz for 1 channels, the other channels up to 1080P@60hz ·Supports image parameter settings ·Supports the HDCP protocol and supports Blu ray HD ·Supports HTTP, UTP, RTSP, RTMP, RTMPS and ONVIF protocols ·WEB interface, Chinese and English configuration interface optional ·WEB interface authority management ·Supports WAN Remote Administration (WEB) ·Supports dual bitstream output ·Main bitstream and sub bit stream can be transmitted using different network protocols ·Supports streaming resolution settings ·Supports the GOP frame rate setting ·Supports bit stream to increase watermark function, XY axis can be set ·Supports a key recovery default configuration ·Supports set-top box decoding ·Design of L low power consumption power   Product Parameters Model ZY-EH404 Video Input interface 4*HDMI Support HDCP Support resolution 3840*2160@30HZ1080P1080i720P , 1600x12001400x10501440x900 1280x10241280x9601280x8001024x768 800×600 Frame rate 30 frame Output interface 1*Ethernet port(RJ45) Video encoding H.264 Baseline Profile H.264 Main Profile H.264 High Profile Code Rate control 16kbps- 25Mbps Code Rate CBR/VBR Audio Input interface 4*External audio, HDMI built-in Audio Audio encoding ACC, MP3 Sampling rate Auto Bit-rate Option 32k,44.1K,48K,64K,96K,128K,160K,192K,384K Sampling Accuracy 24 Bit Audio Data-rate 64Kb/s to 384Kb/s Network RJ45 10M/1000M Ethernet port Program streaming HTTP, RTSP, RTMP, RTMPS, HLS, FLV,ONVIF(UDP/RTP) Control Panel Web panel ( Language is English), remote upgrade Firmware Update Enable by uploading files to the dashboard General Dimension(W*L*H) 23.8*12.2*2.8cm Gross Weight 0.4kg Temperature 0 ~ 45℃(for working),-20~60℃(for storing) Humidity <90%, non-condensing Input Voltage DC 12V/1A Power Consumption 5W
