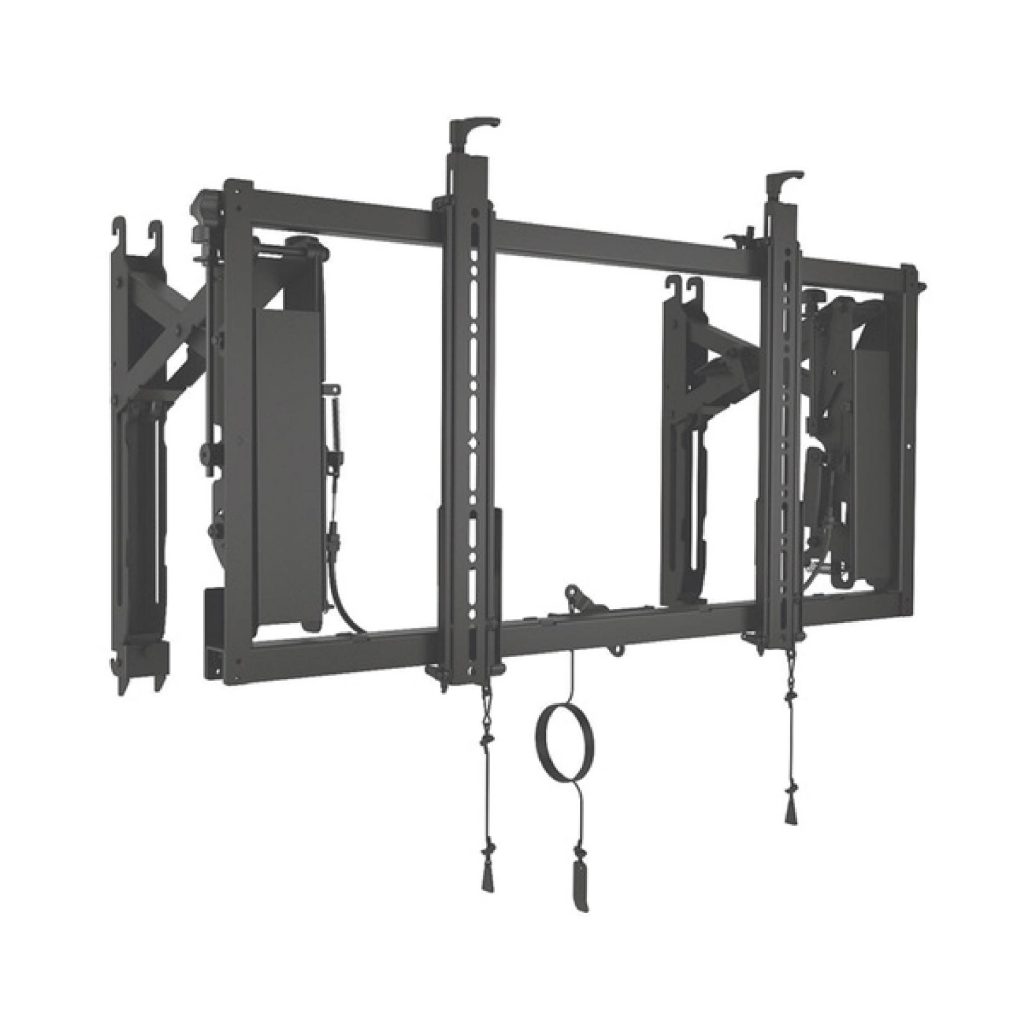

SPEED Hang units on a single strut channel for quick row leveling No need for horizontal spacers Vertical measurement is simply the height of the display to the next rail Compatible with most (W x D) 1-5/8″ x 13/16″ sizes of channel strut Reduces installation time – especially for XL and recessed configurations Tool-free ClickConnect™ latching secures displays PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount ALIGNMENT PowerZone™ Adjustments Height adjustment ±1″ on each interface Tilt adjustment at single pivot point, protects displays from twisting Depth can be set between 4″ and 7.4″ from the wall, providing a range of “home positions” ideal for recessed installations Both sides adjust independently, compensating for imperfections in the wall Walls can be out of alignment by up to 2″ (horizontally) 3 levels of lateral adjustment Mount left/right along rail Interface left/right along mount Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions SERVICEABILITY RapidDraw™ Display Release Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4″ for service Protects displays by not requiring an aggressive push to release/pop-out Releases only on demand, preventing accidental pop-outs The 10′ (304.8 cm) cord can be set up to pull for release from any 90 degree angle Kickstand provides 20 degrees of bottom tilt access RIGIDITY Rigid frame keeps displays where you set them, even after extending for service Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes MISCELLANEOUS Security – pad lock ¼” shank diameter Safety tested Universal interface Each mount comes out of the box with adjustments set in the exact same position For more information, visit : https://www.legrandav.com/products/chief/mounts/display/video_wall/lvs_video_wall_system
