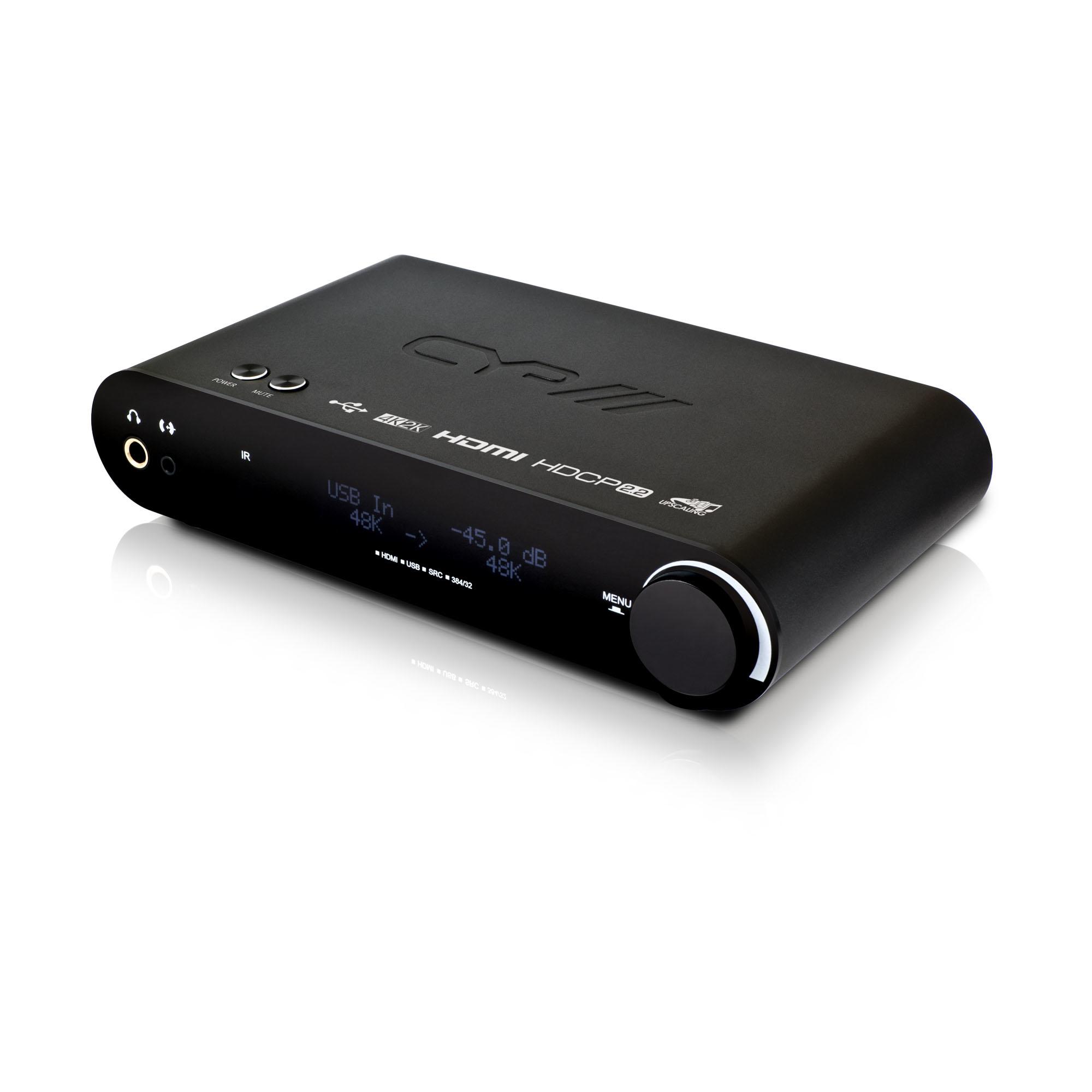

AU-D250-4K22 – Advanced DAC with Full 4K HDMI Switching and Audio Breakout {End of Life}

HDMI2.0, HDCP 2.2 and DVI compatible Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings Audio format conversion Professional analogue signal handling and conversion between balanced and unbalanced output signals Easy integration of USB, HDMI, L/R Stereo, Digital Optical and Coaxial sources onto speakers or headphones (6.35mm Jack) HDMI bypass function including the ability to embed and de-embed audio Analogue to Digital conversion (ADC) Digital to Analogue conversion (DAC) Digital inputs can be SRC to 44.1, 48, 88.2, 96, 176.4, 192 and 384kHz via DSP Engine Supports Analogue L/R input/output, XLR, and 6.3mm headphone outputs HDMI Audio output can either output the incoming embedded HDMI (Bypass Mode) or insert the selected audio signal (Ext Audio Mode) Supplied with IR Remote Control Inputs  1x 3.5mm Stereo mini-jack [1x Line in Stereo(L/R)]4x HDMI [4x HDMI 2.0 Uncompressed AV and Data]1x Toslink [1x Optical 2 Channel LPCM]1x RCA [1x Coaxial 2 Channel LPCM]1x USB Type B [1x USB (2.0) Audio] Outputs  1x 3.5mm Stereo mini-jack [1x Headphone out Stereo(L/R)]1x HDMI [1x HDMi 2.0 Uncompressed AV and Data]1x RCA [1x Coaxial 2 Channel LPCM]1x Toslink [1x Optical 2 Channel LPCM]2x RCA [1x Analogue audio Stereo (L/R)]2x XLR [1x Analogue Stereo (Balanced)] PSU  5V/3A Dimensions  223mm [W] x 43mm [H] x 124mm [D]  Net Weight  900g Gross Weight  1.56kg
