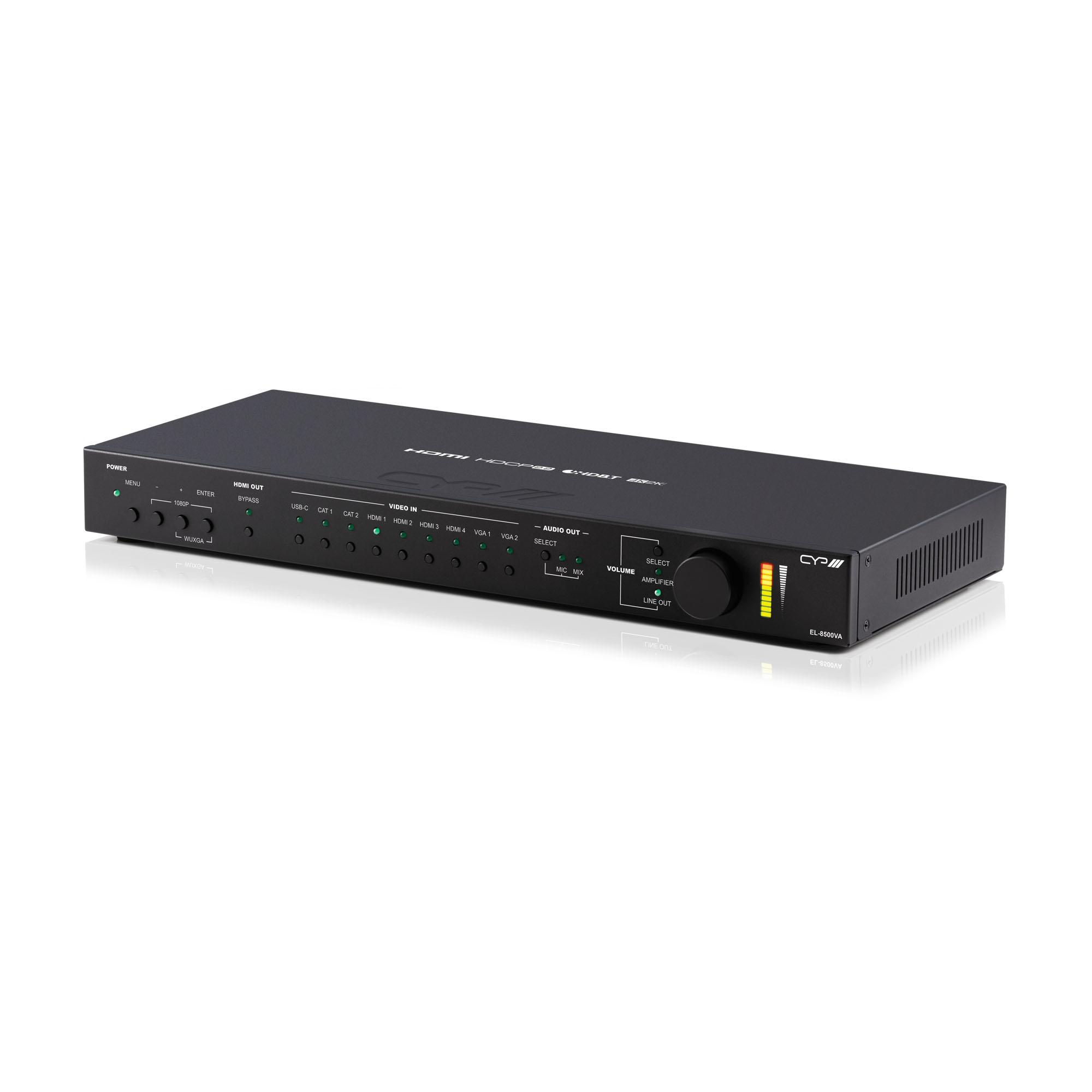

EL-8500VA – Advanced Multi-format 4K Presentation Switch with HDBaseT inputs, Audio/Mic I/O & a built-in audio amplifier

Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT outputs  Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output Note: The HDBaseT output will automatically down-convert 4K50/60(4:4:4) sources to 4K50/60(4:2:0) to maintain compatibility HDBaseT output transmits video and audio over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream Audio mixer function allows the mixing of audio from any analogue input with the microphone input Built in 2 x 20 watts audio amplifier Trigger Control Keypad support for easy, single-button, function activation (Optional) Supports standard 48V PoH from the HDBaseT output (PSE) to a connected HDBaseT receiver (PD) (compatible receivers only) Comprehensive EDID and HDCP management (HDCP 2.2) Controllable via front panel controls with OSD, RS-232, Telnet, Web GUI, and triggers USB for service/firmware updates Inputs  4x HDMI [4x HDMI Uncompressed AV and Data]2x RJ45 [2x HDBaseT HDMI & Propriety Data]2x 15pin Dsub [2x VGA RGBHV]1x 6.35mm Stereo Jack [1x Microphone]6x 3.5mm Stereo mini-jack [6x Stereo(L/R)]1x Phoenix (10 pin) [1x Trigger In (8)]1x 9pin Dsub [1x RS-232 Control RS-232 Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x RJ45 [1x Control IP]1x USB-C [1x USB-C / Thunderbolt] Outputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x RJ45 [1x HDBaseT HDMI & Propriety Data]2x 3.5mm Stereo mini-jack [2x Stereo(L/R)]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] POE PSU PoH PSU 24V/6.25A Dimensions  432mm [W] x 43mm [H] x 174mm [D]  Net Weight  2.6kg Gross Weight  4.24kg Product Stock Category Core Product
