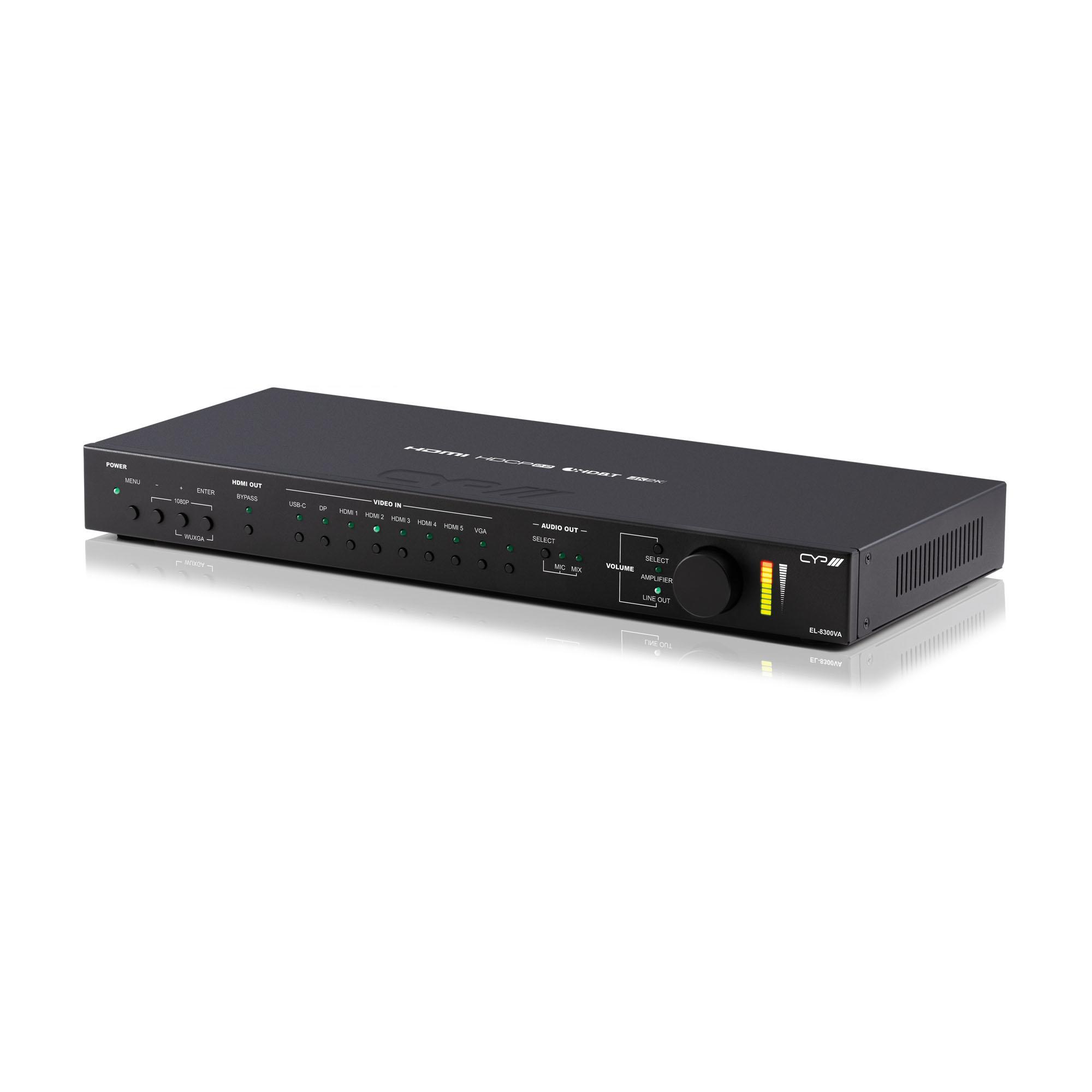

EL-8300VA – Advanced Multi-format 4K Presentation Switch with Audio/Mic I/O & a built-in audio amplifier

8x2 Presentation switcher with HDMI, DisplayPort, VGA and USB-C inputs HDMI 2.0, DVI 1.0 and HDCP 2.2 compliant HDBaseT and HDMI mirrored outputs with scaling functionality Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output (HDMI) HDBaseT output transmits video and audio over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K; Auto conversion of 6G signals for HDBaseT output compatibility Audio DSP function allows the mixing of audio from different audio input types plus microphone input balancing Built in 2 x 20 watts audio amplifier Trigger Control Keypad support for easy single-button control, function activation (Optional) Control is via OSD, RS-232, Telnet, Web GUI and triggers Comprehensive EDID and HDCP management Supports standard PoH from the unit to connected HDBaseT Receivers (compatible receivers only) USB Type-C port provides up to 60W of power to connected devices Inputs  1x USB-C [1x USB-C / Thunderbolt]5x HDMI [5x HDMI Uncompressed AV and Data]1x Display Port [1x Display Port Uncompressed AV]1x 15pin Dsub [1x VGA RGBHV]1x 6.35mm Stereo Jack [1x Microphone]6x 3.5mm Stereo mini-jack [6x Analogue Stereo(L/R)]2x Phoenix (2 pin) [2x Contact Closure Relay Outputs]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x Phoenix (4 pin) [1x RS-232 local control]1x Phoenix (4 pin) [1x RS-232 HDBaseT pathway] Outputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x Phoenix (5 pin) [1x Analogue Stereo (Balanced or Unbalanced)]2x Phoenix (2 pin) [1x Speaker Level Stereo Output] PSU 24V/6.25A Dimensions  432mm [W] x 43mm [H] x 174mm [D]  Net Weight  2.56kg Gross Weight  4.18kg Product Stock Category Core Product
