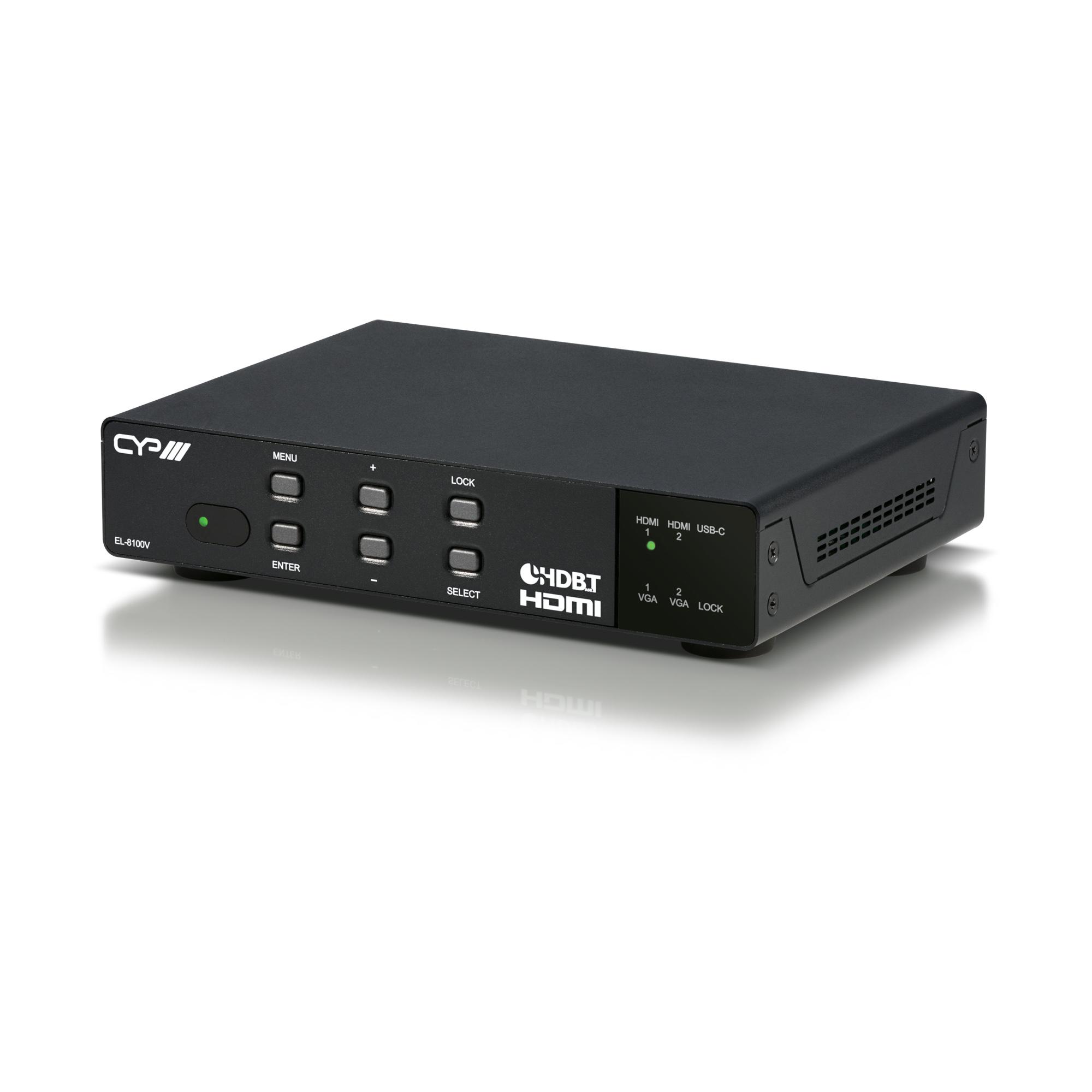

EL-8100V – Advanced 4K Multi-Format to HDMI/HDBaseT Presentation Switch with Mic/Audio I/O
$15.74
$19.05
HDMI 2.0 and DVI 1.0 compliant HDCP 1.x and 2.2 compliant Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT outputs HDBaseT output extends video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6a/7 HDBaseT feature support: HD Video & Audio, 100BaseT Ethernet, PoH(PSE), and Control (Bi-directional IR/RS-232 pass-through) Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video input (HDMI, USB-C) and output (HDMI) VGA input supports resolutions up to 1080p60/WUXGA (RB) Supports pass-through of LPCM 2.0 digital audio Supports audio embedding, de-embedding microphone input supports 48V phantom power (optional) Audio mixer function allows the mixing of audio from any LPCM 2.0 audio source with the microphone input with auto-gain functionality and auto-ducking function Comprehensive HDCP and EDID management USB Type-C port provides up to 60W of power to connected devices Trigger input connection supports direct input selection IR remote control provides discrete input source selection Controllable via front panel controls with OSD, RS-232, Telnet, Web GUI, and triggers Inputs 2x HDMI [2x HDMI Uncompressed AV and Data]1x USB-C [1x USBC USB-C / Thunderbolt]2x 15pin Dsub [2x VGA RGBHV]1x 6.35mm Stereo Jack [1x Microphone]3x 3.5mm Stereo mini-jack [3x Analogue Stereo(L/R)]1x Phoenix (6 pin) [1x Direct switching control port]1x 9pin Dsub [1x RS-232 Data]1x RJ45 [1x LAN serving and IP Control IR Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x USB Type A [1x Service Port Propriety Data] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] PSU 24V/5A Dimensions 219mm [W] x 43mm [H] x 156mm [D] Net Weight 1.36kg Gross Weight 3.2kg Product Stock Category Special Order
