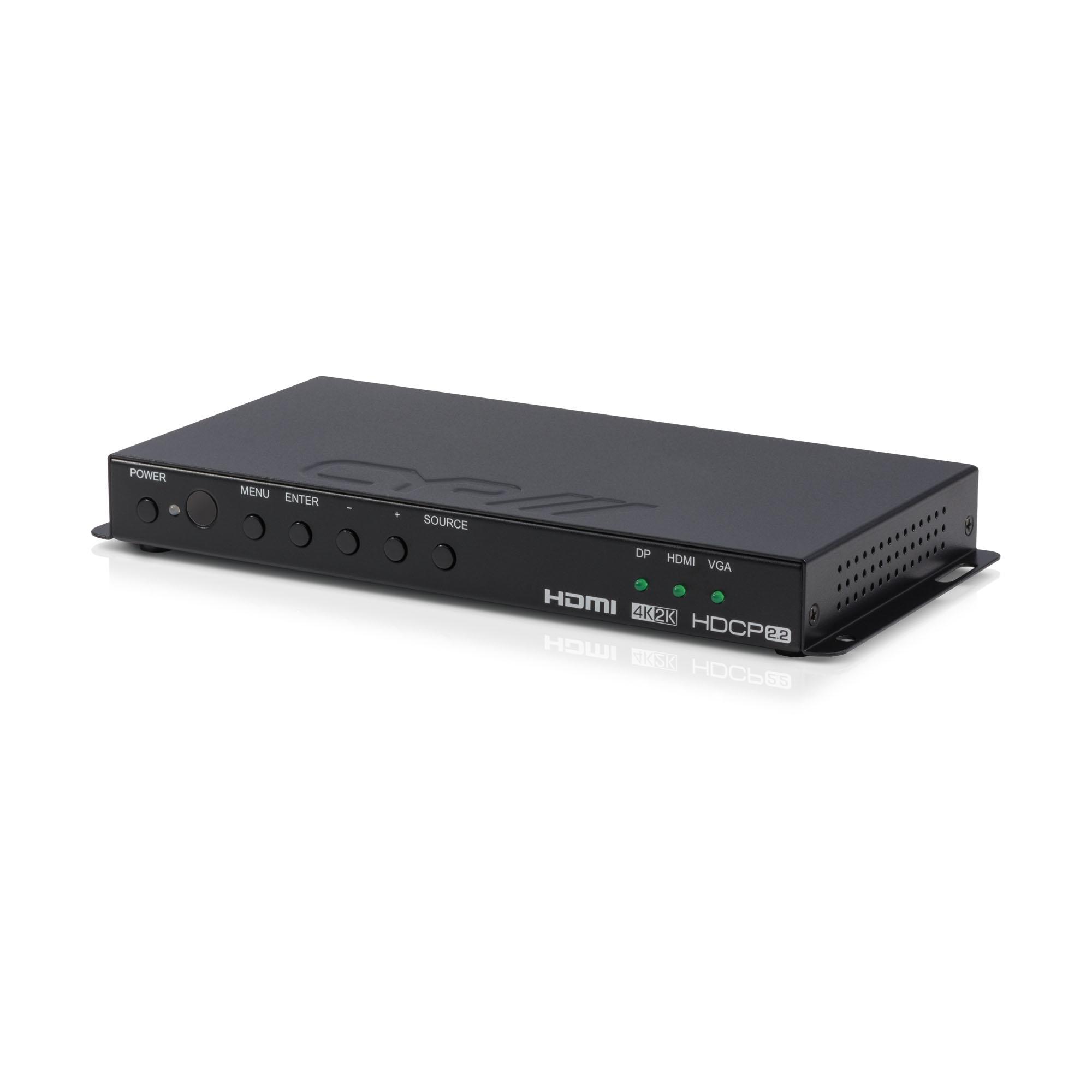

EL-6010-4K22 – Full 4K multi-format Switching Scaler with Audio I/O
$24
$42.72
Supports multiple input formats - HDMI, DisplayPort and VGA HDMI 2.0, HDCP 2.2, HDCP 1.4 and DVI 1.0 compliant Supports video resolutions up to 4K@60Hz (YUV 4:4:4) Auto source detection: Automatically switches to the most recently connected input Wide range of aspect ratio settings including: full screen, 16:9, 16:10 and 4:3 Direct adjustment of contrast, brightness, hue and saturation Audio mute function Analogue stereo audio output with volume control EDID management support Comprehensive user interface options including: Front panel with OSD, Web GUI, telnet, RS-232, and IR remote Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x Display Port [1x Uncompressed AV]1x 15pin Dsub [1x VGA RGBHV]1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]1x 3.5mm Stereo mini-jack [1x RS-232]1x RJ45 [1x IP Control]1x USB Type A [1x Service Port Propriety Data] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)] PSU 5V/3A Dimensions 231.5mm [W] x 25mm [H] x 108mm [D] Net Weight 0.645kg Gross Weight 1.10kg Product Stock Category Special Order
