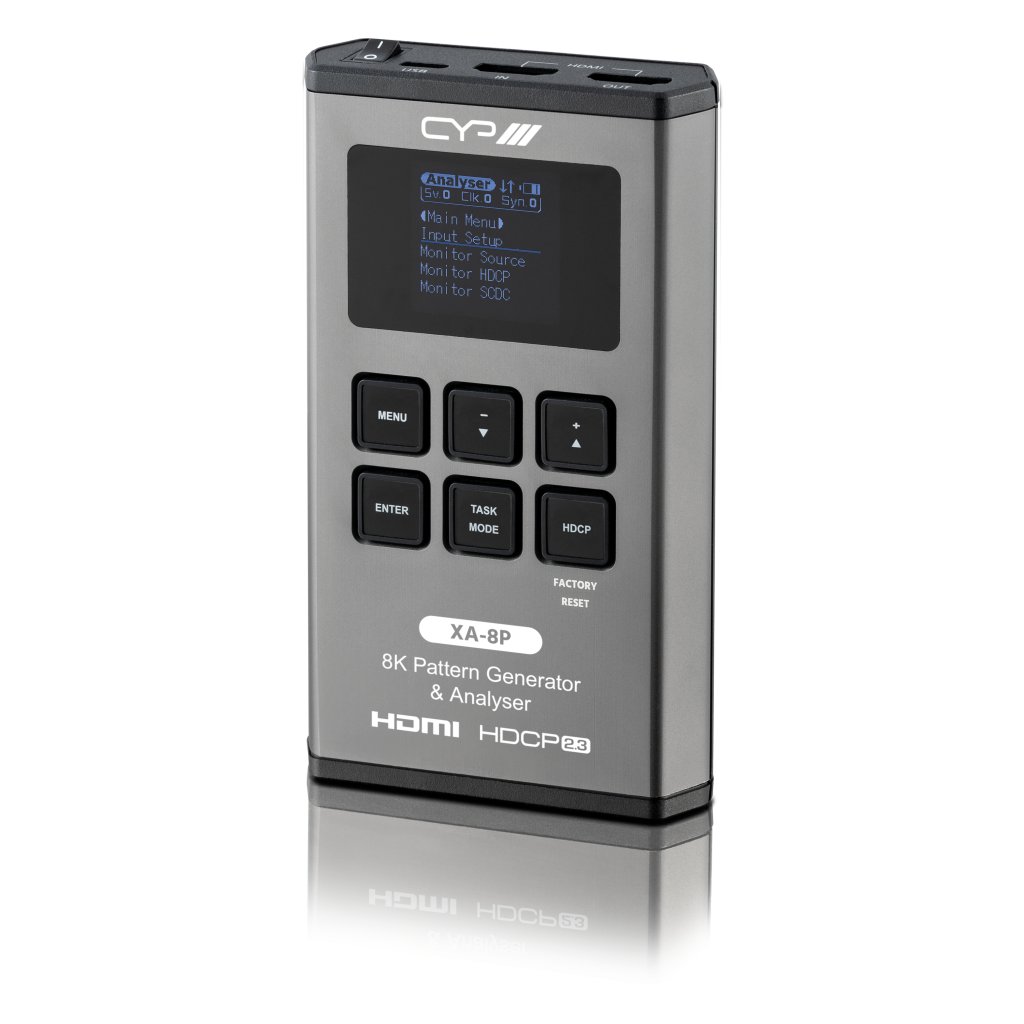

Generator (Test Pattern Mode) supports 40 selectable output resolutions up to 8K and 20 selectable test patterns Supports 40Gbps 8K UHD HDMI input and output Supports resolutions up to 7680×4320@60Hz (4:2:0, 8-bit) Analyzer mode supports 8K source video, audio, timing and packet analysis Comprehensive EDID management, analysis and emulation support with 12 built-in default EDIDs and 10 user-definable EDIDs Portable palm-sized design with easy to use front-panel controls OLED display with rapid updates of current status information HDCP and SCDC monitoring functions HDR bypass, analysis and generation function complies with the CEA standard HDR static metadata extensions CEA-861-G and CEA- 861.3 Supports generation of up to 8 channels of LPCM audio with adjustable sinewave frequencies for each channel Powered by a single Lithium-ion battery (not included) or an external USB-C power supply/power bank DVI 1.0 compliant with the use of an HDMI-DVI adaptor HDCP 1.4 and 2.3 compliant Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x USB-C [1x Multi use port - charging / serial / firmware Proprietary data] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data] PSU Battery Powered,USB powered Dimensions 80mm [W] x 124mm [H] x 24mm [D] Net Weight 320g Gross Weight 440g Product Stock Category Core Product
