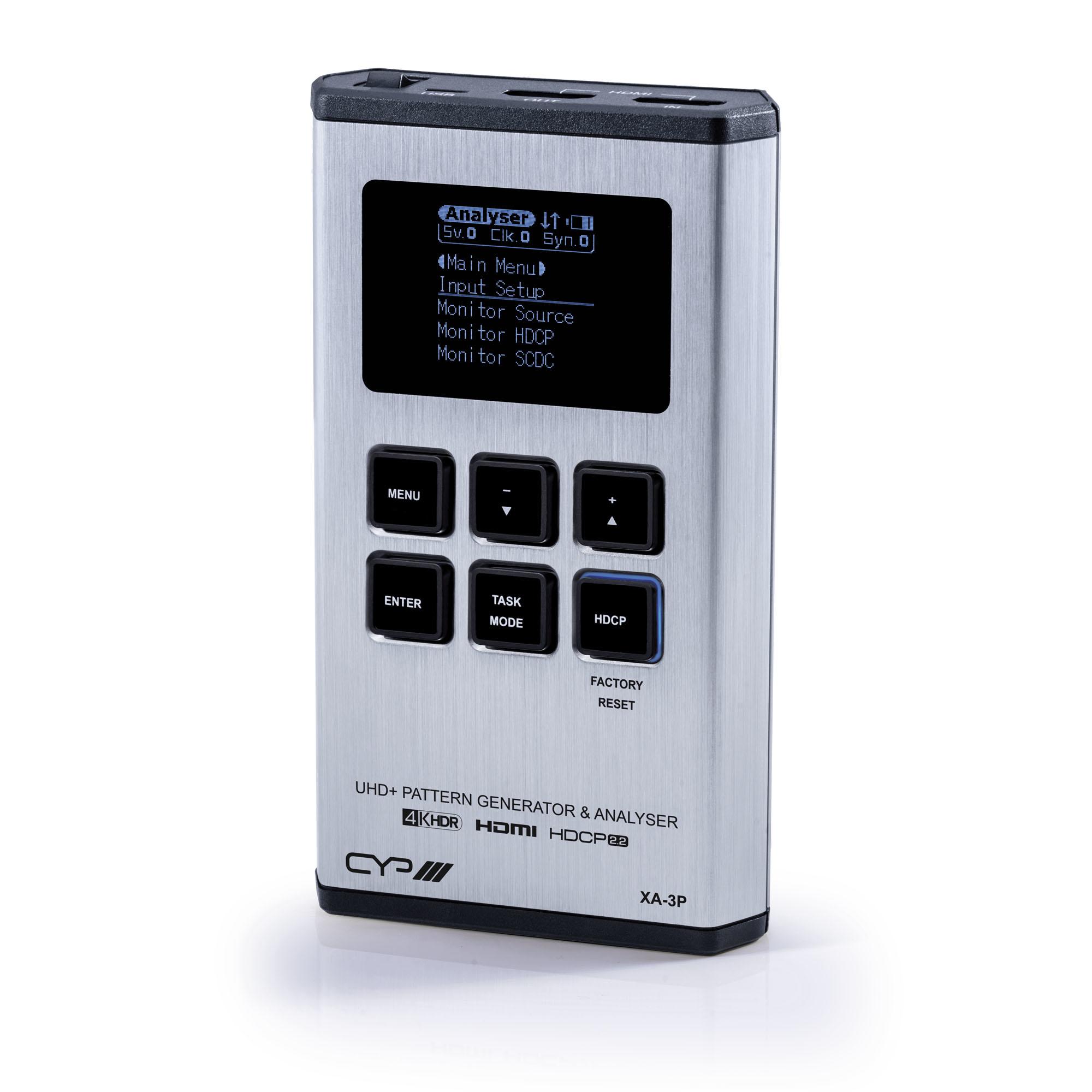

XA-3P – Battery powered 4K HDMI Pattern Generator, Analyser & Cable Tester
$23.58
$30.42
HDMI I/O with 18Gbps (6G) 4KUHD Support HDCP v1.4 and v2.2 Compliant Supports HD resolutions up to 3840x2160 @ 60Hz (YUV 4:4:4, 8-bit) and 4096x2160 @ 60Hz (YUV 4:4:4, 8-bit) Supports video pass through Built in Down-Scaler 4K to 1080p SCDC input/output monitor HDMI Packet data analysis 23 selectable output resolutions available in test pattern mode 11 selectable output patterns available in test pattern mode HDMI 2.0 Cable Test option with support for 5v and Hot-Plug detection Supports Generation of sinewave audio up to LPCM 8CH and analysis of the source audio signal EDID Management support with 10 pre-set default EDID's and 10 user EDID slots from connected sinks Battery Operated or USB powered LED display with real time data feedback and current status information Supports USB firmware update Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x USB Mini B [1x USB Power] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data] PSU USB powered, Battery Powered Dimensions 80mm [W] x 124mm [H] x 24mm [D] Net Weight 320g Gross Weight 480g Product Stock Category Core Product
