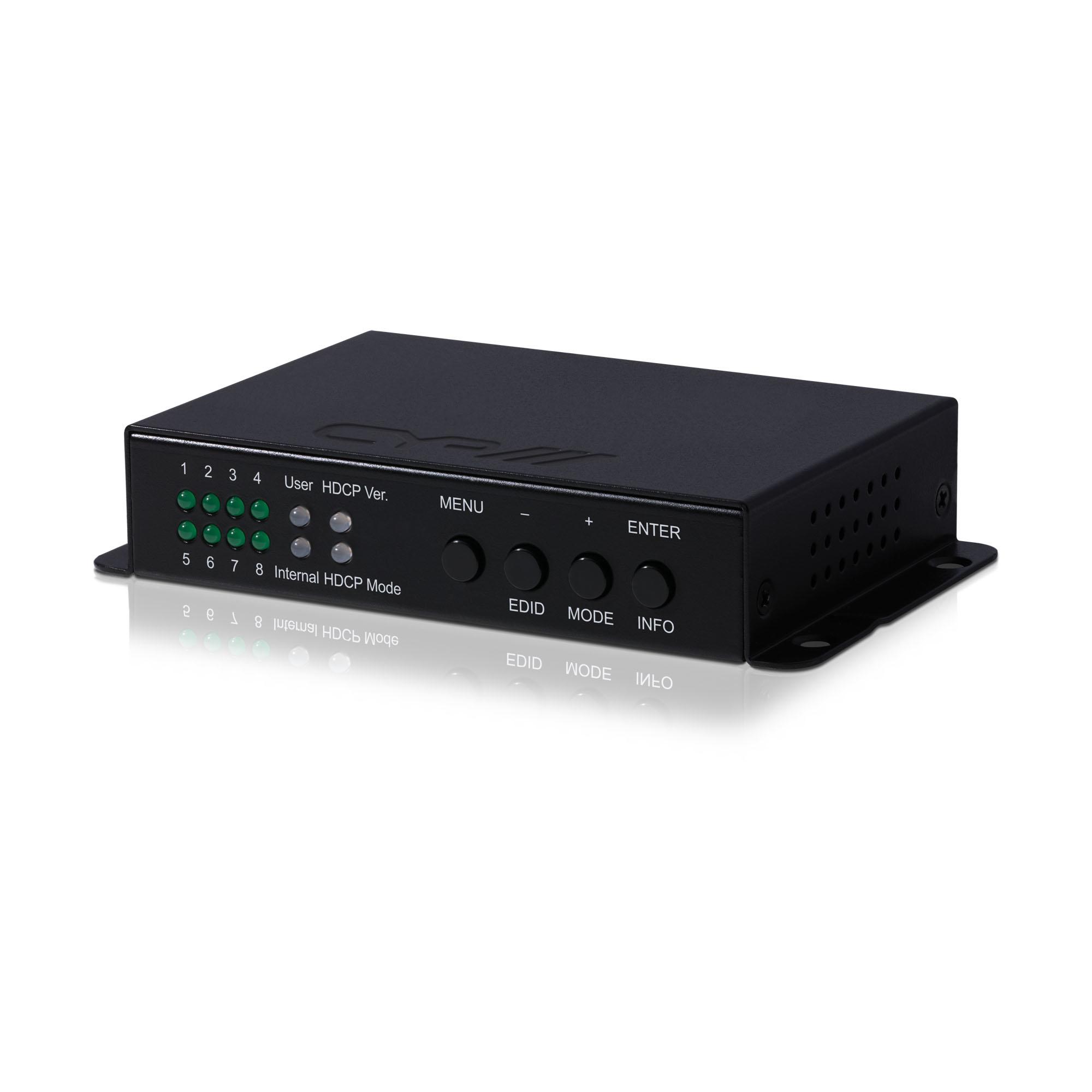

RE-EDID-4K22 – HDMI Full 4K EDID Manager with HDCP modes & downscaler

HDMI input and output with 18Gbps (6G) 4K UHD support HDCP 1.4 and 2.2 compliant Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit) Supports 48-bit Deep Colour up to 1080p@60Hz Supports Four different EDID modes : Read / Write / Emulate / Bypass modes Read Mode : Reads the TV/display’s EDID information Write Mode : Overwrites the TV/display’s EDID information (TV/display needs to be able to support overwrite function) 8 unique sets of EDID settings may be stored via the learning procedure.  Emulator Mode : Allows the source device to read the selected EDID information from the unit’s default or learnt EDID memory Bypass Mode : Allows the source device to read the EDID information from the TV/display directly Supports DVI sources when used with a DVI to HDMI adaptor (not supplied) Supports CEC functionality Inputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x USB 3 Type B [1x Service and PC port Power & Data] Outputs  1x HDMI [1x HDMI Uncompressed AV and Data] PSU 5V/2.6A Dimensions  128mm [W] x 25mm [H] x 75mm [D]  Net Weight  280g Gross Weight  620g Product Stock Category Core Product
