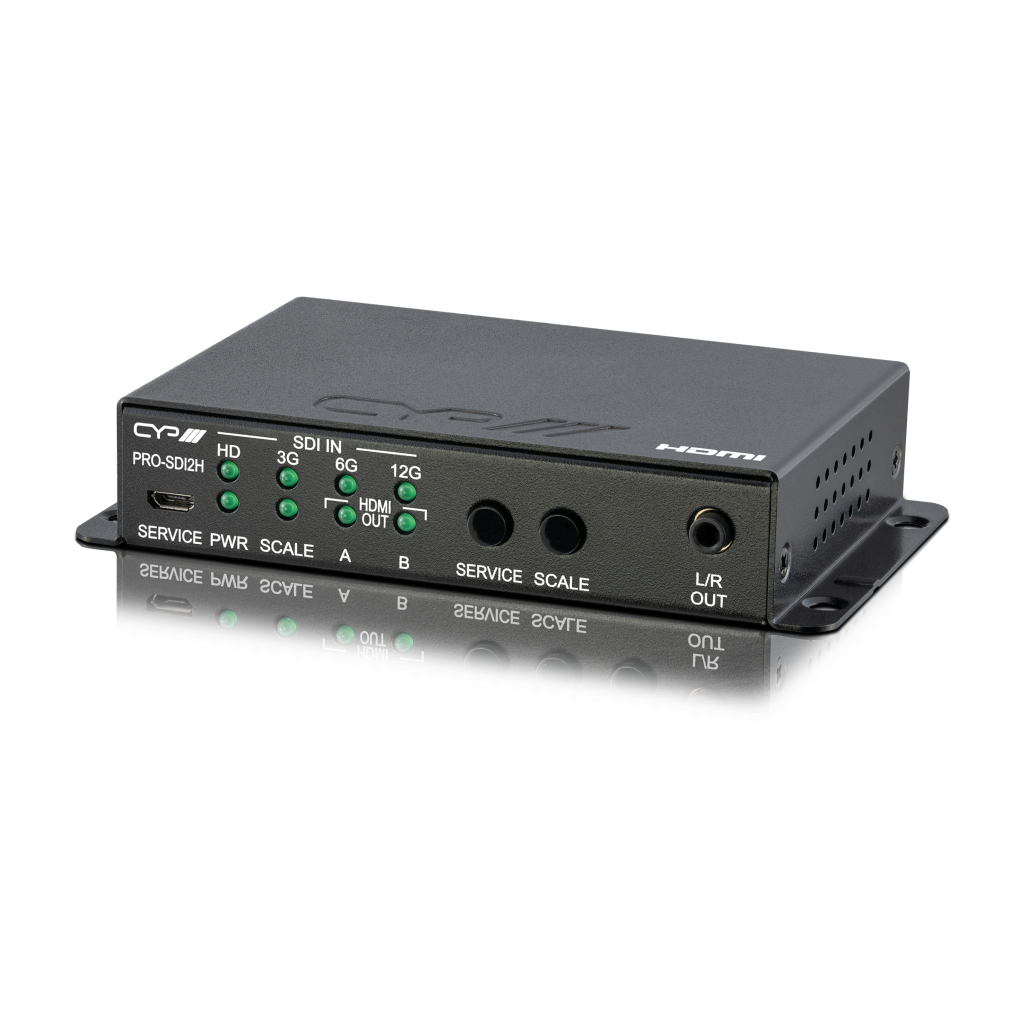

HDMI 2.0 and DVI 1.0 compliant 1 SDI video input 3 mirrored outputs (2×HDMI, 1×12G-SDI) & 1 analogue stereo audio output Supports up to 4K UHD (12Gbps, 4K@50/60Hz 4:2:2, 8-bit) digital video input SDI input supports the following SMPTE standards: ST 292-1 Level A, ST 425-1, ST 2081-10, ST 2082-10 Looped SDI output is re-clocked SDI signal extension distance varies based on signal type: 80 meters (12G-SDI), 100 meters (6G-SDI) 200 meters (3G-SDI), or 260 meters (HDSDI) 4K sources can be optionally downscaled to 1080p when output over the HDMI outputs to support lower cost local monitoring options Supports pass-through of LPCM audio (up to 8 channels) Controllable via front panel controls Inputs 1x BNC [1x SDI HD-SDI / 3G-SDI / 6G_SDI / 12G-SDI] Outputs 1x BNC [1x SDI HD-SDI / 3G-SDI / 6G_SDI / 12G-SDI]1x HDMI [1x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)] PSU 5V/2.6A Dimensions 128mm [W] x 25mm [H] x 75mm [D] Net Weight 340g Gross Weight 720g Product Stock Category Core Product
