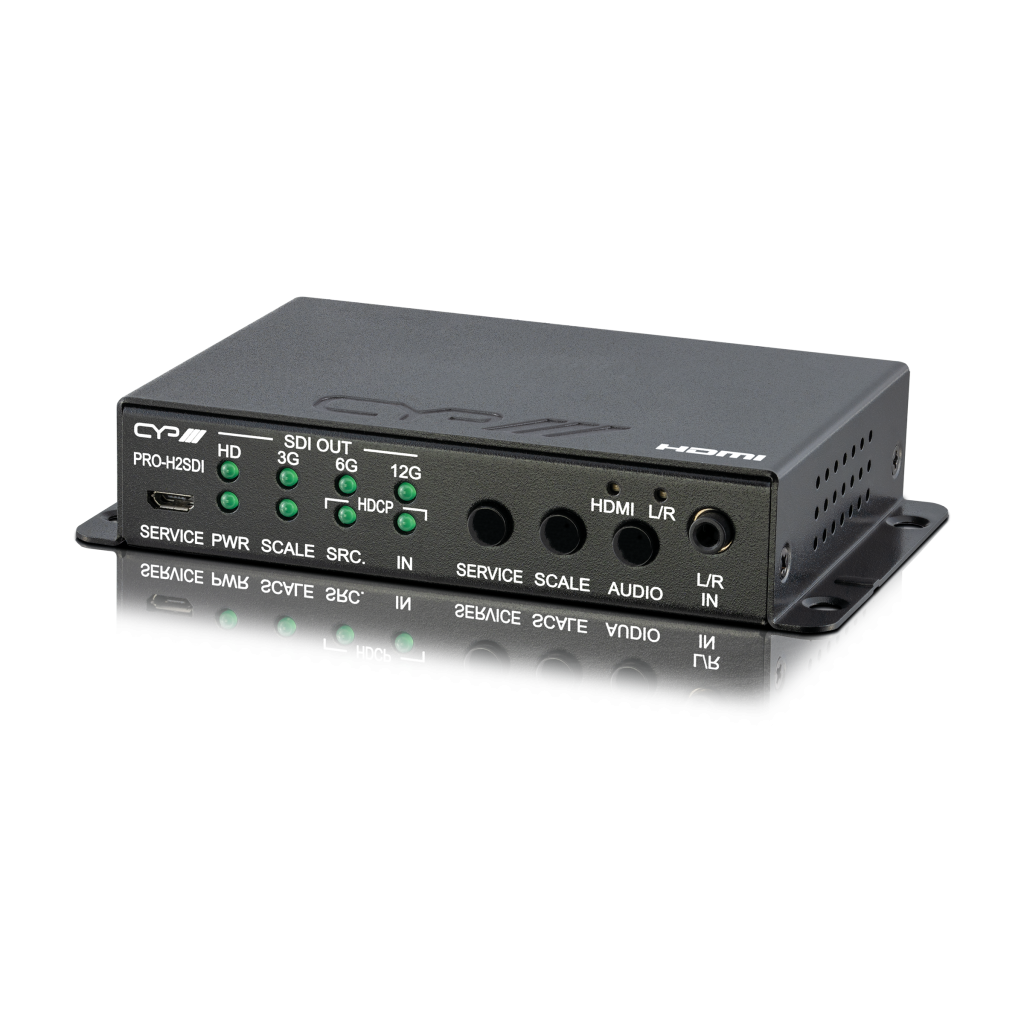

HDMI 2.0 and DVI 1.0 compliant HDCP 1.x and 2.2 compliant 1 HDMI video input & 1 analogue stereo audio input 3 mirrored outputs (2×12G-SDI, 1×HDMI) Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video input SDI output supports the following SMPTE standards: ST 292-1 Level A, ST 425-1, ST 2081-10, ST 2082-10 SDI signal extension distance varies based on signal type: 80 meters (12G-SDI), 100 meters (6G-SDI) 200 meters (3G-SDI), or 260 meters (HDSDI) 4K sources can be optionally downscaled to 1080p when output over the HDMI output to support lower cost local monitoring options Supports pass-through of LPCM audio (up to 8 channels) from the HDMI input, or 2 channels from the analogue audio input Controllable via front panel controls Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]2x BNC [2x SDI HD-SDI / 3G-SDI / 6G_SDI / 12G-SDI] PSU 5V/2.6A Dimensions 128mm [W] x 25mm [H] x 75mm [D] Net Weight 340g Gross Weight 760g Product Stock Category Core Product
