PRO-H2-3GSDI – HDMI to 3G-SDI Dual Output Converter
$14.96
$25.43

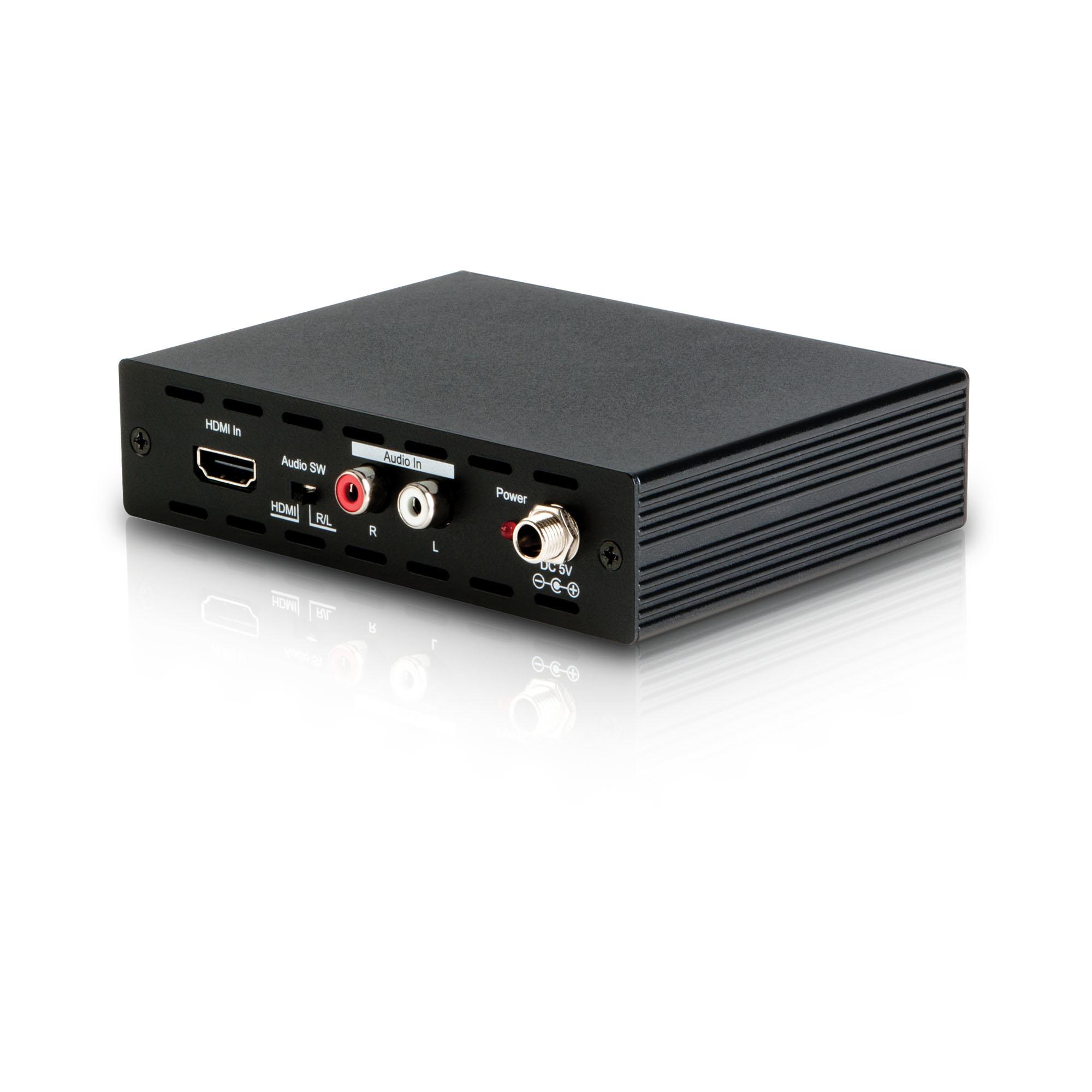

Supports HDMI timing: 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i 50/60, 1080p 50/60 This product does not process HDCP input. When receiving content that has HDCP encryption there will be no video outputted. Simultaneous display HDMI source on two SDI displays When a DVI signal goes through HDMI, the L/R audio can be sent with it to the 3G SDI output Integrated audio embedded up to 8 channel PCM 48kHz for HDMI or 2CH for DVI audio Choose between a selectable EDID and recordable EDID Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s Connect with other units (SDI to HDMI) to extend your signal over long distances Frequency Bandwidth 225MHz/link (HDMI 1.3) Auto video mode detection (3G/SD/HD) Supports signal transmission distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals Supplied with locking PSU Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]2x RCA [1x Analogue Stereo (L/R)] Outputs 2x BNC [2x SD-SDI / HD-SDI / 3G-SDI] PSU 5V/2.6A Dimensions 125mm [W] x 30mm [H] x 115mm [D] Net Weight 280g Gross Weight 600g Product Stock Category Core Product
