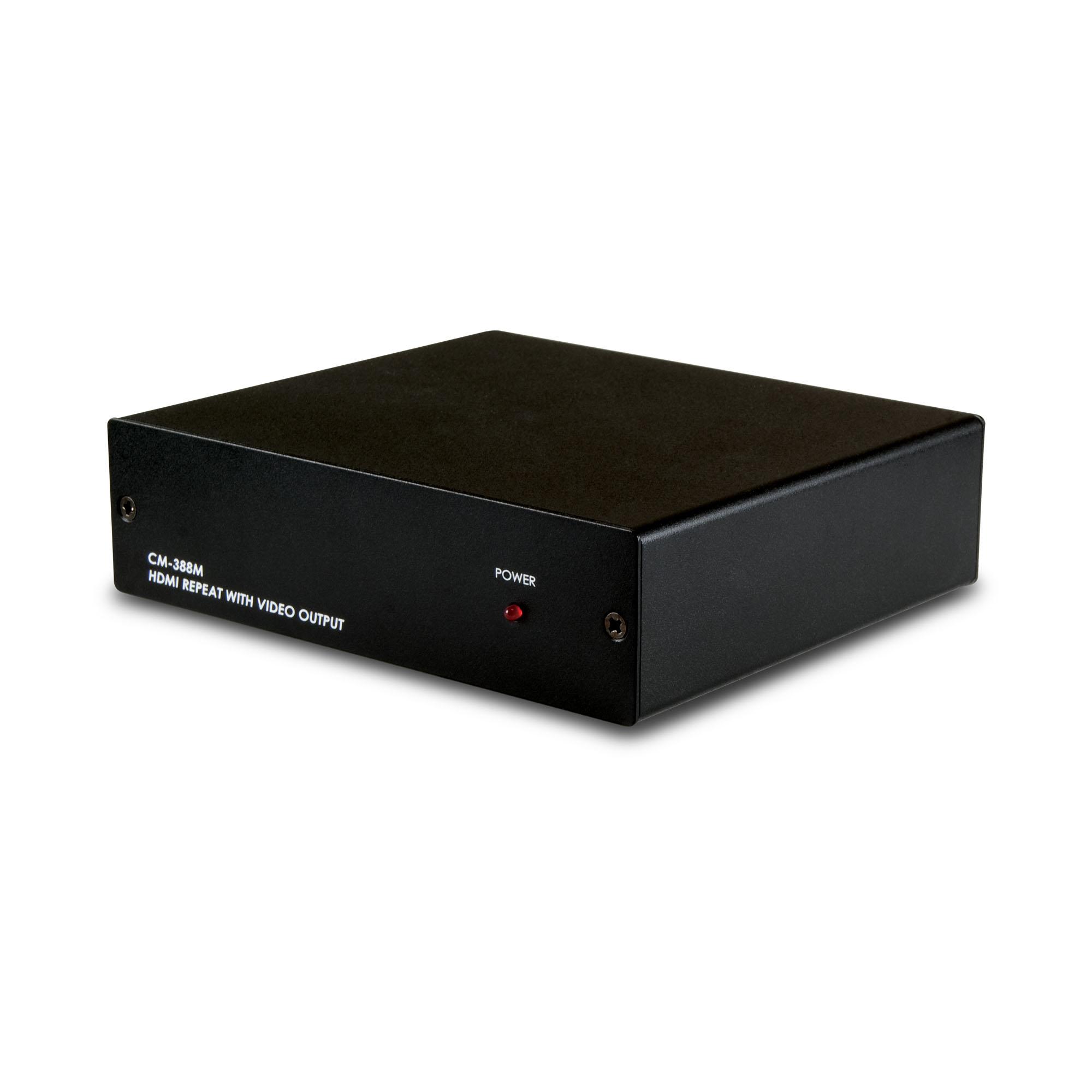

CM-388M – HDMI Down-Scaler with Bypass Output
$32.47
$60.72
HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant Convert HDMI source signals to Composite Video or S-Video, with selectable NTSC or PAL compatibility Converts digital audio from a HDMI source to analogue stereo audio HDMI bypass with simultaneous de-embedded S/PDIF Digital Audio via a Coaxial output Accepts a wide range of HDTV input resolutions, from 480i to 1080p@60Hz and PC from VGA@60Hz to WUXGA@60Hz (Reduced Blanking) Supports Coaxial input audio sample rate 44.1KHz, 48KHz and 96KHz When the signal from HDMI or DVI source is protected by HDCP (High bandwidth Digital Content Protection), the HDMI or DVI display needs to supports HDCP to be able to show picture When receiving content that is HDCP encrypted, the CV & SV output will not display images Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x RCA [1x Coaxial DTS / Dolby Digital / 2 Channel LPCM] Outputs 1x RCA [1x Coaxial DTS / Dolby Digital / 2 Channel LPCM]1x HDMI [1x HDMI (Bypass) Uncompressed AV and Data]1x RCA [1x Composite]1x S-video plug [1x S-video]4x RCA [2x Analogue Stereo (L/R)] PSU 5V/2.6A Dimensions 141mm [W] x 38mm [H] x 127mm [D] Net Weight 560g Gross Weight 940g Product Stock Category Special Order
Signal Management
