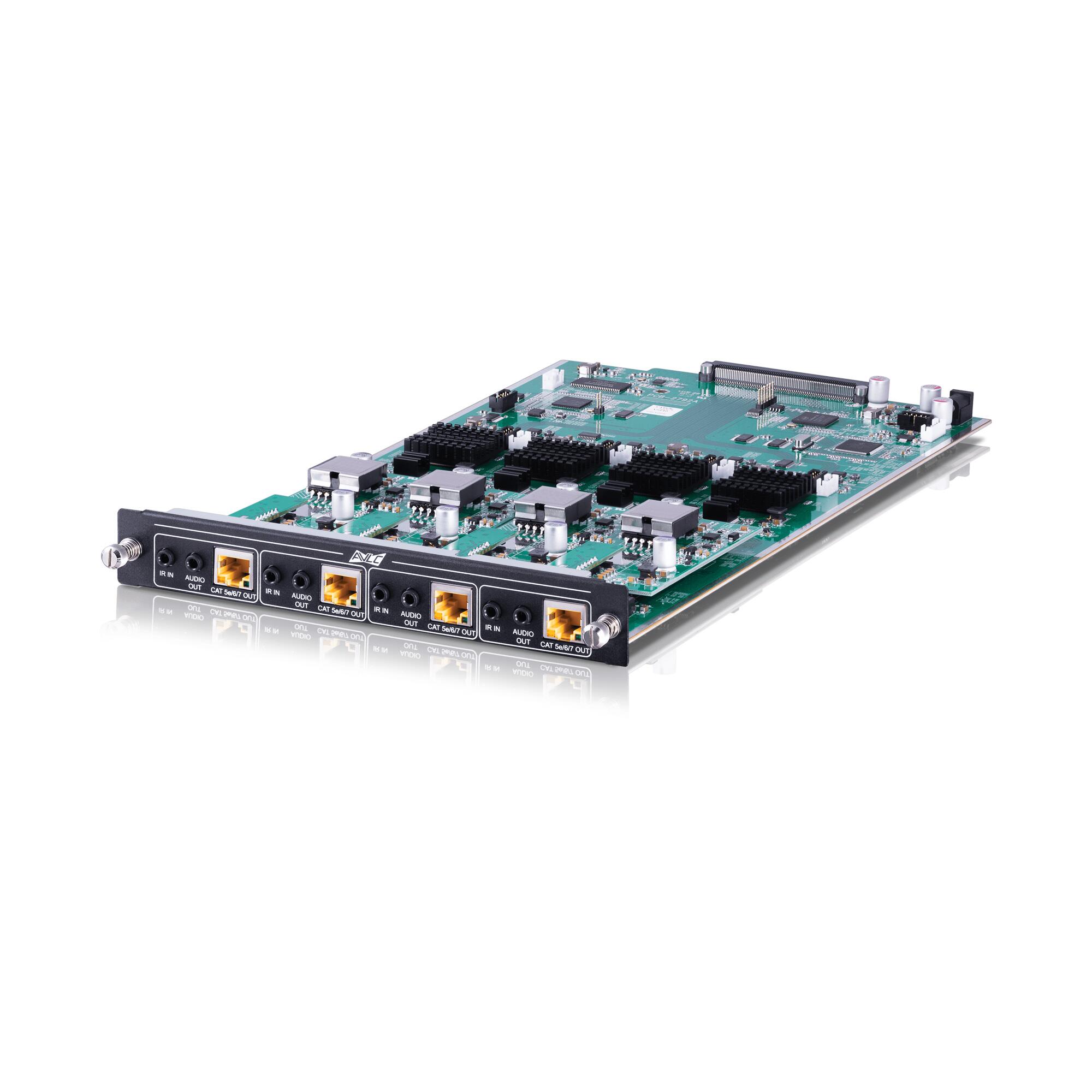

OUTX-2100-AVLC – HDBaseT2 Full 4K 4-port Output Card with AVLC for the MODX-1616

$19.23 $25.19
4 x HDBaseT Output Ports 4 x 3.5mm Analogue Audio Outputs HDBaseT™ 2.0 Technology HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through) Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video transmission AVLC (Adaptive Visually Lossless Compression) Supports 10-bit and 12-bit HDR (High Dynamic Range) Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit) Supports Deep Colour input and output up to 12-bit 4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings up to 70 Metres Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio Supports 3D signals 4 x IR Inputs Outputs  4x RJ45 [4x HDBaseT AVLC HDMI & Propriety Data]4x 3.5mm Stereo mini-jack [4x Infra Red Receiver]4x 3.5mm Stereo mini-jack [4x Stereo(L/R)] Dimensions   187.4mm [W] x 29.1mm [H] x 344.9mm [D]  Net Weight  680g Gross Weight  1.16kg Product Stock Category Core Product
