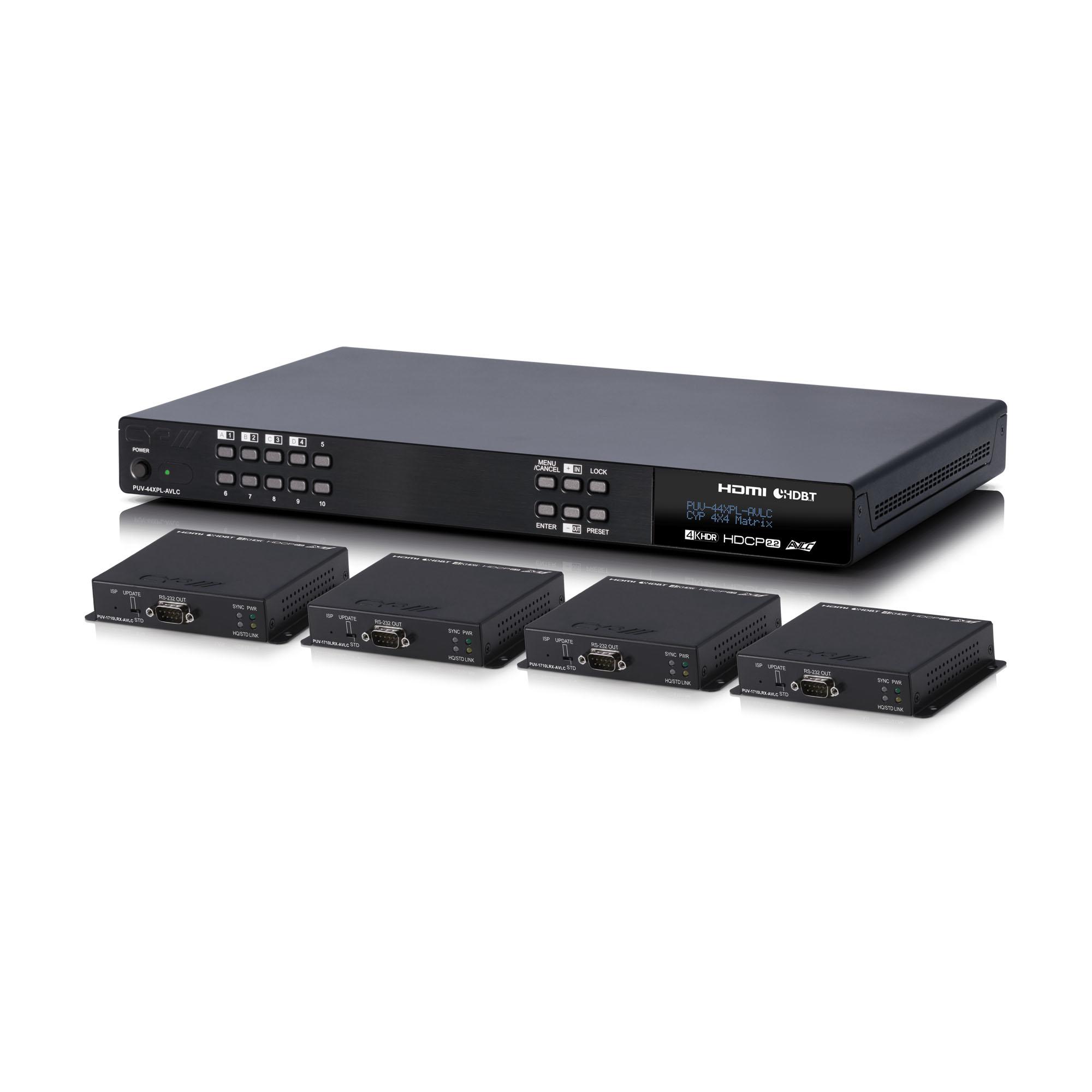

PUV-44XPL-AVLC-KIT – 4 x 4 HDMI Full 4K HDBase1 LITE Matrix with AVLC & Audio De-embedding: Inc. 4x PUV-1710LRX-AVLC Receivers

HDMI 2.0, HDCP1.4 and HDCP2.2 compliant  Routes 4 HDMI sources to 4 displays using 4 HDBaseT outputs High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through) Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input AVLC (Adaptive Visually Lossless Compression) Supports 10-bit and 12-bit HDR (High Dynamic Range) Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit) 4K 3G Timings and 1080p up-to 70 Metres, 4K 6G Timings up to 40 Metres Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio Supports HDCP repeating and CEC functions Control is via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI) 1U rack mounted design Inputs  4x HDMI [4x HDMI  Uncompressed AV and Data]5x 3.5mm Stereo mini-jack [5x Infra Red Receiver]1x 9pin Dsub [1x RS-232 Data]1x RJ45 [1x IP Control]1x USB Type A [1x Service Port Propriety Data] Outputs  4x RJ45 [4x HDBaseT - AVLC HDMI & Propriety Data]8x RCA [4x Analogue  Stereo (L/R)]5x 3.5mm Stereo mini-jack [5x Infra Red Emitter] POE PSU  PoH PSU 24V/6.25A Dimensions  438mm [W] x 44.5mm [H] x 270mm [D] Net Weight  3.56kg Gross Weight  8.76kg Product Stock Category Core Product
