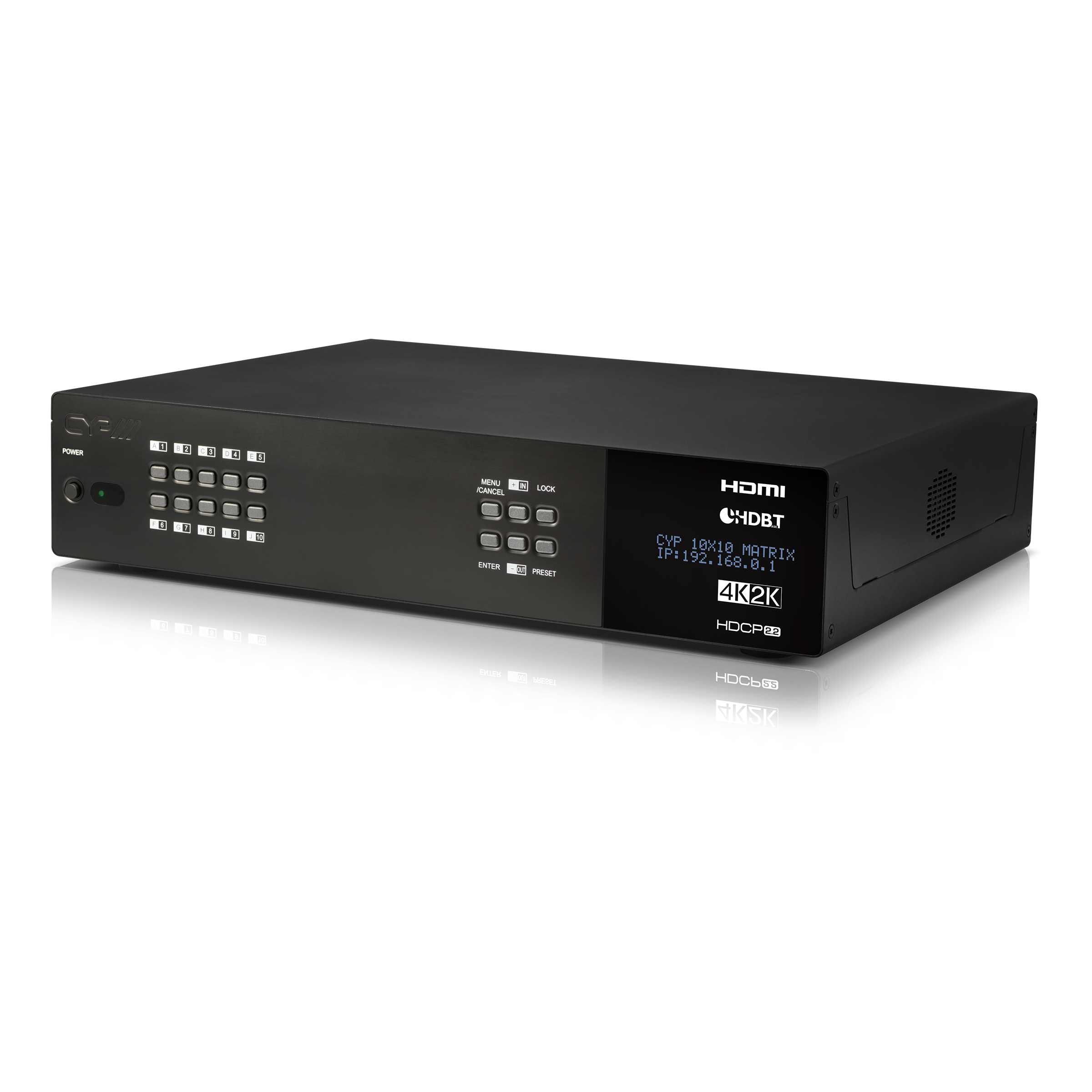

PUV-1082PL-4K22N 10 x 10 4K HDMI HDBaseT1 LITE Matrix with OAR, Audio I/O Zones and full Audio Matrix

HDMI 2.0, HDCP1.4 and HDCP2.2 compliant Routes ten HDMI sources to ten displays using eight HDBaseT outputs and two independent or mirrored HDMI outputs HDBaseT lite convergence: High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through) Supported HDBaseT resolutions: VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K@24Hz 4:2:2 HDR Supports resolutions up to 4K@60 (YUV 4:4:4) on HDMI output ports Supports automatic 4K@60 YUV 4:4:4 to YUV 4:2:0 conversion for HDBaseT outputs Supports automatic 4K HDR conversion for HDBaseT outputs as required Supports HDMI inputs and HDBaseT / HDMI outputs HEX based CEC messaging Supports HDBaseT output downscaling 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 40m via CAT6a/7 Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS X Supports audio matrix functionality enabling full audio management of the system including HDBaseT audio zone selection, fully independent audio only zones and HDMI audio embedding and de-embedding Supports Digital to Analogue Conversion (DAC) and Analogue to Digital Conversion (ADC) for audio integration Supports on-board audio over CAT inputs and outputs for transmission up to 150m Supports Volume, Mute, Treble, Bass, and Audio delay for lip-sync on direct audio outputs Supports Audio Pre-Gain level adjustment for all digital and analogue audio inputs HDBaseT outputs with Optical Audio Return (OAR) system Audio mixer function Advanced internal and external EDID management with 4 sets of configurable EDID settings Internal test pattern generation for self-testing and sink device testing. Bi-directional IR support over HDBaseT Control is via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI) Supports OSD for input and output naming plus banner text 2U rack mounted design Inputs 10x HDMI [10x HDMI Uncompressed AV and Data]8x RCA [4x Configurable Analogue Audio Stereo (L/R)]2x RJ45 [2x Bi-directional Audio plus Propriety Data]9x 3.5mm Stereo mini-jack [9x Infra Red Receiver]1x RJ45 [1x Control IP]1x 9pin Dsub [1x RS-232 Data]2x Toslink [2x Optical 2 Channel LPCM]2x RCA [2x Coaxial 2 Channel LPCM] Outputs 8x RJ45 [8x HDBaseT HDMI & Propriety Data]2x HDMI [2x HDMI Uncompressed AV and Data]24x RCA [12x Zone and Extended Audio Stereo (L/R)]11x 3.5mm Stereo mini-jack [11x Infra Red Emitter] POE PSU PoH PSU 24V/6.25A Dimensions 438mm [W] x 89mm [H] x 316mm [D]  Net Weight 6.22kg Gross Weight 10.65kg Product Stock Category Core Product
