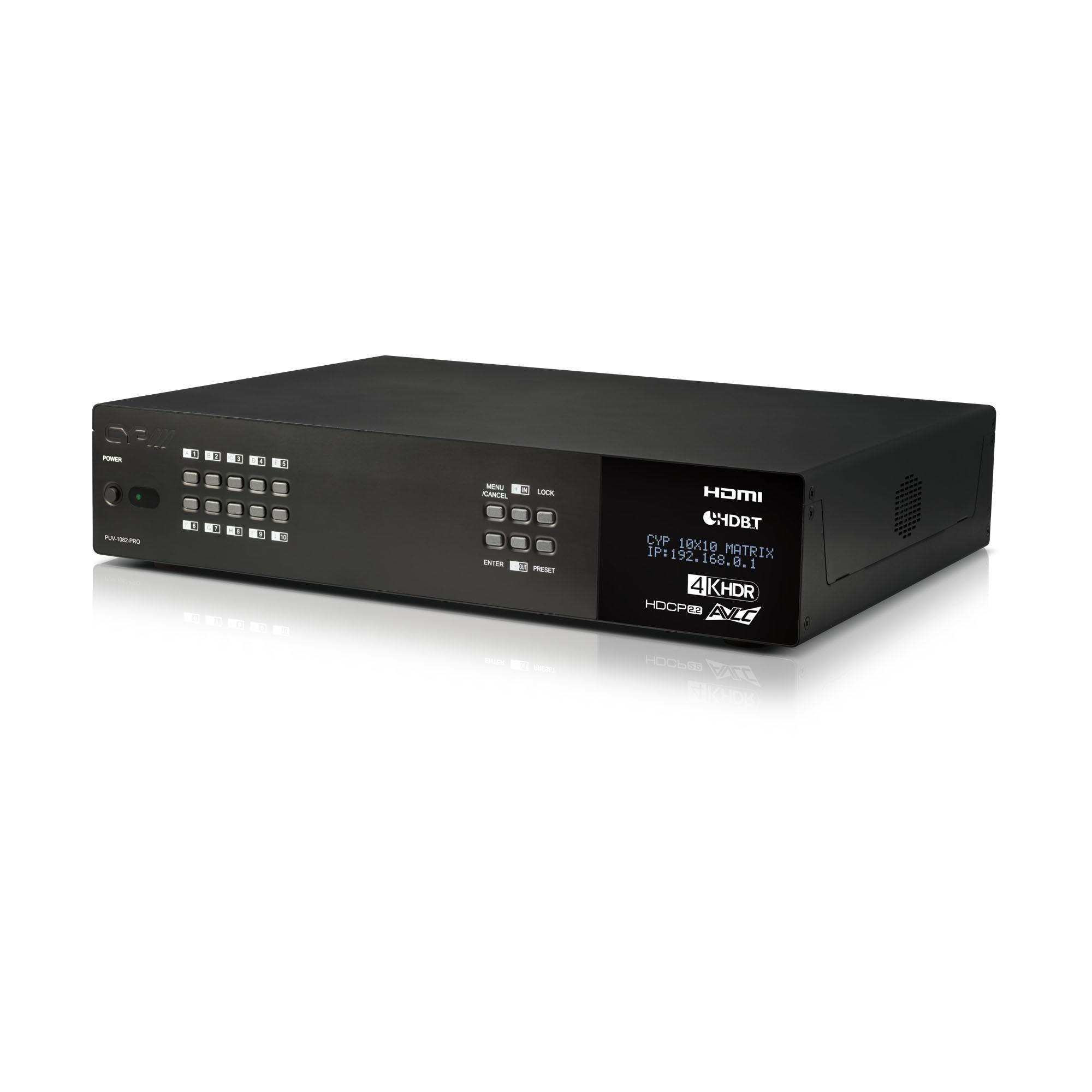

PUV-1082-PRO – 10 x 10 Full 4K HDMI HDBase1 with AVLC Matrix with OAR, Audio I/O Zones and full Audio Matrix

HDMI 2.0, HDCP1.4 and HDCP2.2 compliant Routes ten HDMI sources to ten displays using eight HDBaseT outputs and two independent HDMI outputs HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through) Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input AVLC (Adaptive Visually Lossless Compression) Supports 10-bit and 12-bit HDR (High Dynamic Range) Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit) 4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings up to 70 Metres Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio Supports audio matrix functionality enabling full audio management of the system including HDBaseT audio zone selection, and fully independent audio only zones Supports Digital to Analogue Conversion (DAC) and Analogue to Digital Conversion (ADC) for audio integration Supports on-board audio over CAT inputs and outputs for transmission up to 150m Supports Volume, Mute, Treble, Bass, and Audio delay for lip-sync on direct audio outputs Optical Audio Return (OAR) Advanced internal and external EDID management with 4 sets of configurable EDID settings Internal test pattern generation for self-testing and sink device testing. (Internal test patterns up to and including 4K signals) Supports HDCP repeating and CEC functions Control is via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI) 2U rack mounted design Inputs  10x HDMI [10x HDMI Uncompressed AV and Data]8x RCA [4x Configurable Analogue audio Stereo (L/R)]2x Toslink [2x Configurable Digital Optical audio DTS / Dolby Digital / 2 Channel LPCM / Dolby Digital Plus]2x RCA [2x Configurable Digital Coax audio DTS / Dolby Digital / 2 Channel LPCM / Dolby Digital Plus]2x RJ45 [2x Digital Audio Propriety Data]9x 3.5mm Stereo mini-jack [9x Infra Red Receiver]1x RJ45 [1x IP Control / LAN Serving]1x 9pin Dsub [1x RS-232 Data] Outputs  8x RJ45 [8x HDBaseT AVLC  HDMI & Propriety Data]2x HDMI [2x HDMI Uncompressed AV and Data]8x RCA [4x Analogue Stereo (L/R)]2x RJ45 [2x Digital Audio Propriety Data]11x 3.5mm Stereo mini-jack [11x Infra Red Emitter] POE PSU  PoH PSU  24V/6.25A Dimensions  438mm [W] x 89mm [H] x 316mm [D]  Net Weight  6.26kg Gross Weight  10.7kg Product Stock Category Core Product
