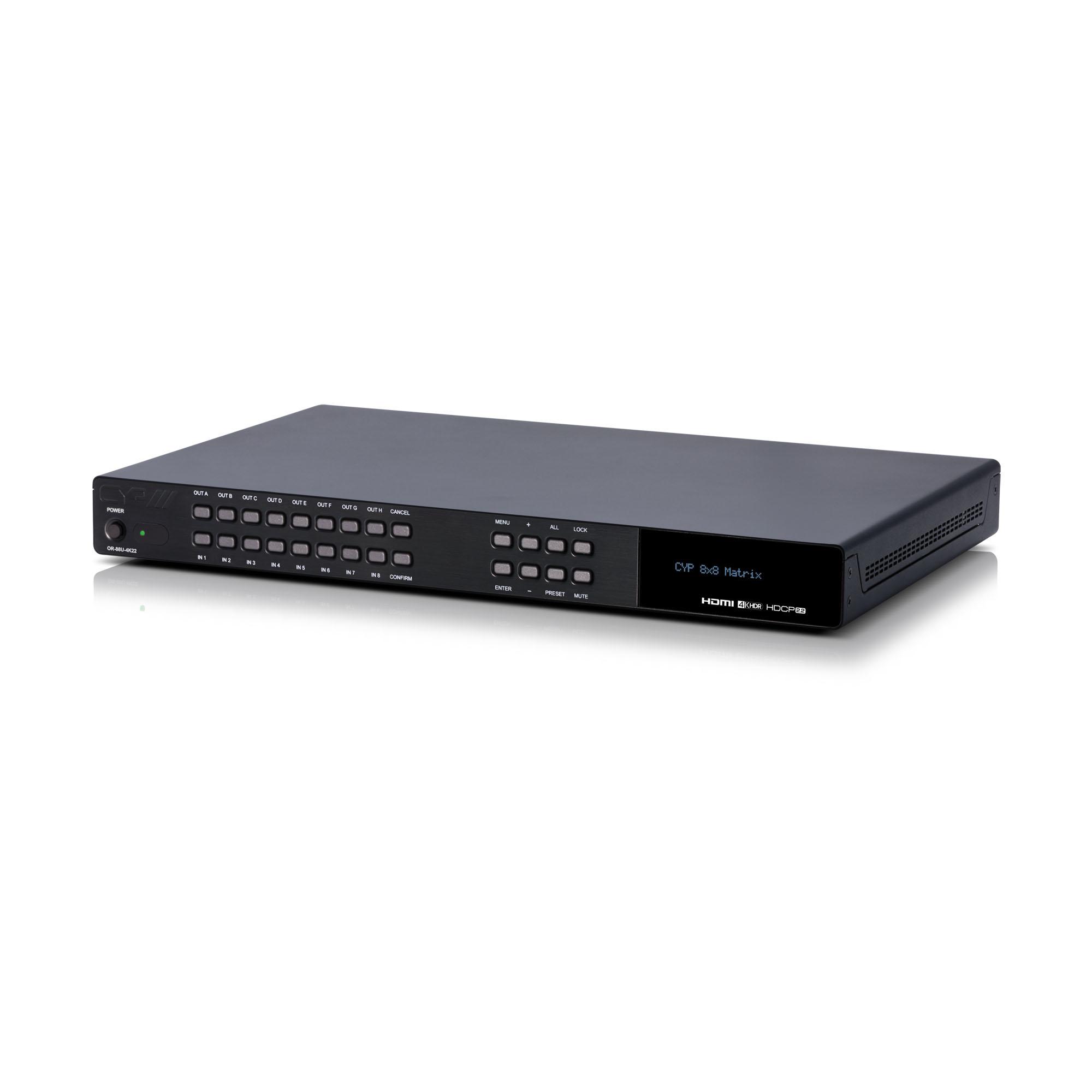

OR-88U-4K22 – 8 x 8 HDMI Full 4K Matrix Switcher with USB Power
$31.2
$47.11
HDMI 2.0a and DVI 1.0 compliant HDCP 2.2 Compliant Eight HDMI inputs matrixed to eight HDMI outputs with 18Gbps (6G) 4K UHD support Supports UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit) plus HDR Supports 16-bit Deep Colour up to 1080p@60Hz Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream Supports six internal EDIDs, eight external EDIDs copied from connected devices, and four user provided EDIDs Eight USB ports to supply 5V/1A power to AOC (Active Optical Cable) fiber extension cables OSD with user definable information text Controllable via front-panel buttons with LCD, Web GUI, Telnet, RS-232, and IR remote Inputs 8x HDMI [8x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x 9pin Dsub [1x RS-232 Data] Outputs 8x HDMI [8x HDMI Uncompressed AV and Data]8x USB Type A [8x 5V 1amp USB power output] PSU 24V/6.25A Dimensions 438mm [W] x 44.5mm [H] x 270mm [D] Net Weight 3.68kg Gross Weight 6kg Product Stock Category Core Product
Matrices
