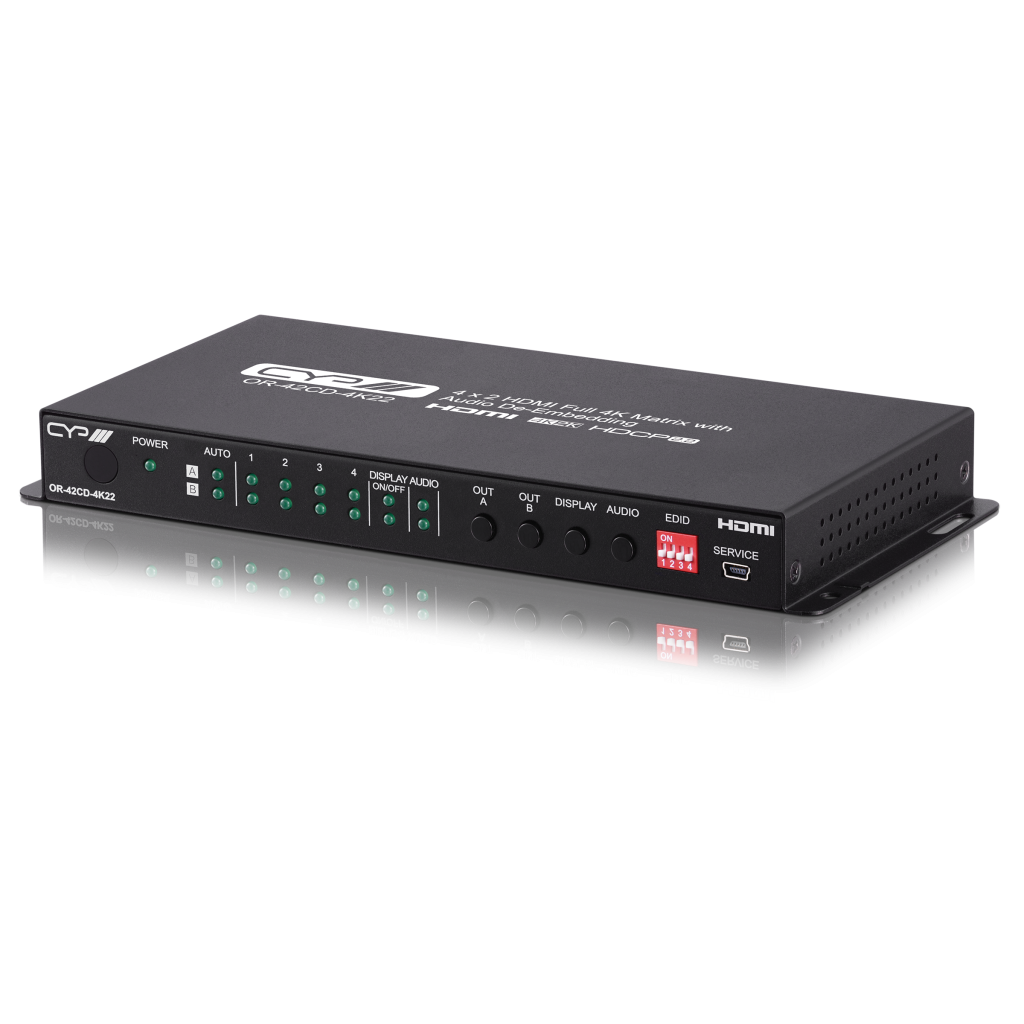

OR-42CD-4K22 – 4 x 2 HDMI Full 4K Matrix with Audio De-Embedding

HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant 4 HDMI inputs and 2 HDMI outputs Matrix switching with sequential input selection via front panel controls or discrete input selection via IR remote and RS-232 Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit & HDR) video input and output Supports 10-bit and 12-bit HDR (High Dynamic Range) input and output Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream High-quality DAC provides local analogue stereo audio breakout from the selected HDMI output (LPCM 2.0 sources only) Independent input based EDID management with internal or external EDID options Basic display power automation via RS-232 and CEC Controllable via front-panel buttons, RS-232, and IR remote Inputs  4x HDMI [4x HDMI Uncompressed AV and Data]1x Phoenix (3 pin) [1x Console control RS-232]1x USB Type B [1x Service port Propriety Data] Outputs  2x HDMI [2x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Analogue Audio Stereo(L/R)]1x Phoenix (3 pin) [1x Display control RS-232] PSU 5V/2.6A Dimensions  231.5mm [W] x 25mm [H] x 108mm [D] Net Weight  620g Gross Weight  1.06kg Product Stock Category Core Product
