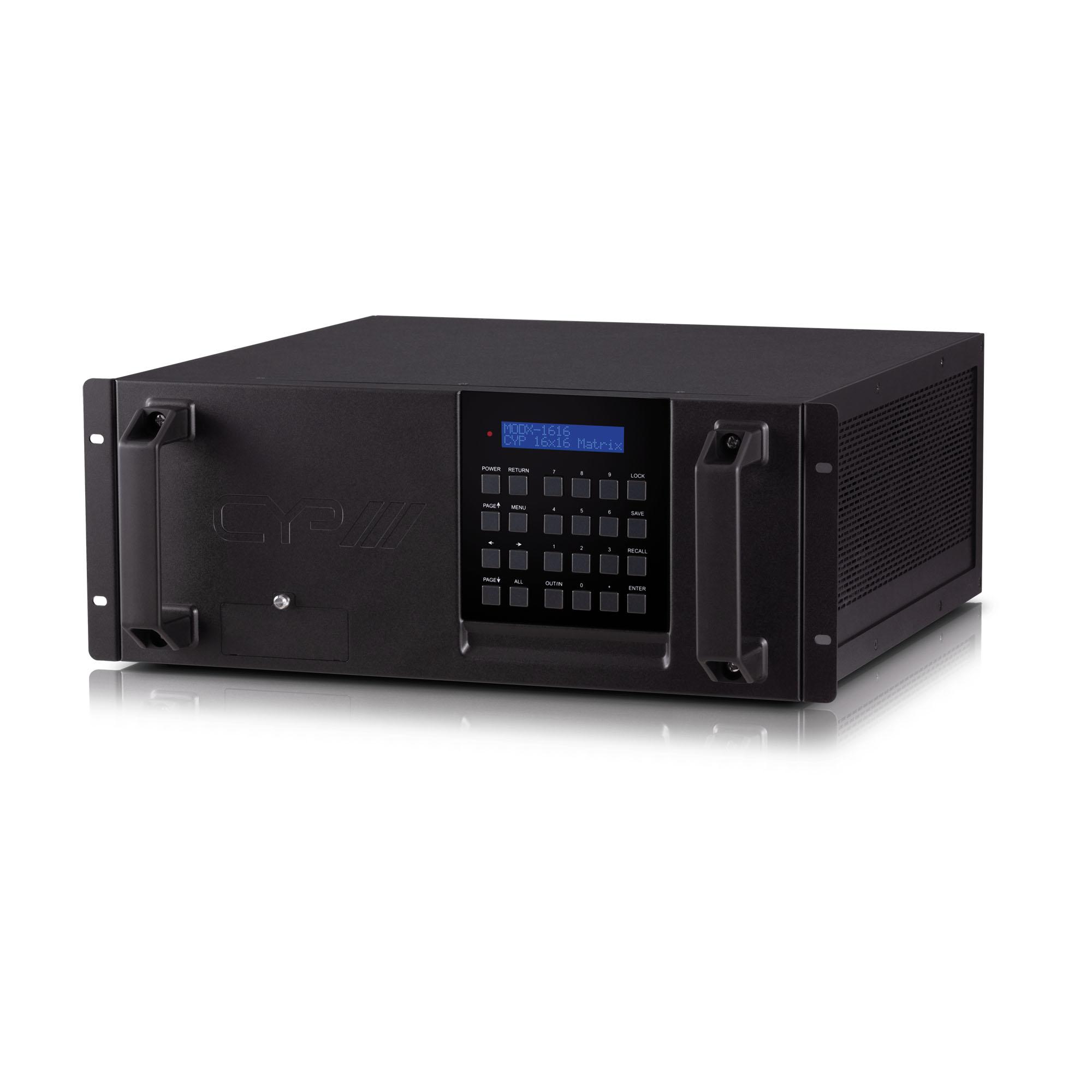

Input and output card slots support 18Gbps (600MHz) 4K UHD with HDR signals DVI 1.0 compliant with the use of an HDMI-DVI adapter HDCP 1.x and 2.2 compliant 8 high-bandwidth card slots (4 dedicated input slots, 4 dedicated output slots) with a maximum matrix configuration of 16×16 1 CPU and control card slot Supports UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit colour Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream output cards have an integrated scaling function which supports upscale to 4K@60Hz and downscale to 1080p@60Hz if required by the connected display Advanced EDID Management for rapid integration of sources and displays Field updatable firmware 3U rack mounted design Spare power supply for redundancy Control via front panel buttons with LCD menu, Ethernet (Telnet & WebGUI), RS-232, and IR remote 4-port HDMI input and 4-port HDMI output cards available 4-port HDBaseT (with AVLC) input and output cards available 1 system control card slot (with support for 1 high-bandwidth input port and 1 high-bandwidth output port) System Control Card’s HDMI ports support UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) System Control Card’s HDMI ports support 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12-bit color Inputs 16x Modular I/O board [4x I/O cards]1x HDMI [1x HDMI Uncompressed AV and Data]1x 9pin Dsub [1x RS-232 Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]2x USB Type A [2x Service Ports Propriety Data]2x RJ45 [2x IP] Outputs 16x Modular I/O board [4x I/O cards]1x HDMI [1x HDMI Uncompressed AV and Data]11x 3.5mm Stereo mini-jack [11x Infra Red Emitter] POE PSU PoH PSU IEC Dimensions 440mm [W] x 177mm [H] x 429mm [D] Net Weight 15.45kg Gross Weight 22.6kg Product Stock Category Core Product
