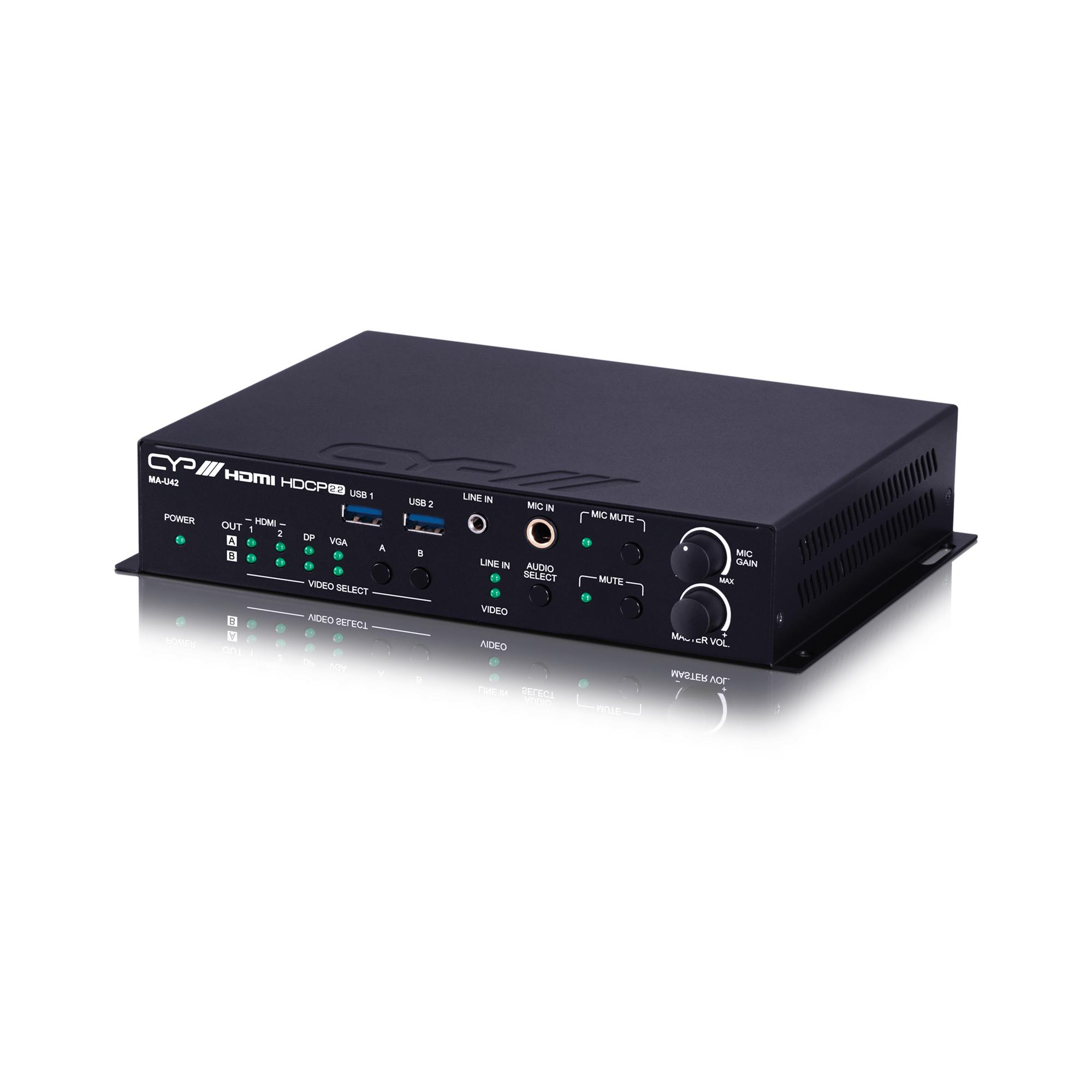

MA-U42 – 4 x 2 HDMI Full 4K matrix with Amplifier & USB Hub

HDMI 2.0 and DVI 1.0 compliant HDCP 1.x and 2.2 compliant 4 video inputs (2×HDMI, 1×DisplayPort, 1×VGA w/ analogue audio) 2 matrixed HDMI outputs HDMI and DisplayPort inputs support resolutions up to 4K@60Hz (4:4:4, 8-bit) VGA input supports resolutions up to 1080p60Hz HDMI outputs support resolutions up to 4K@60Hz (4:4:4, 8-bit) Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output (HDMI/ DisplayPort only) Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats Audio mixer function allows the mixing of audio from any LPCM 2.0 audio source with the microphone input Microphone input supports 48V phantom power and feeds into a DSP mixer allowing adjustable mix levels, automatic ducking, audio output mixing, volume, and mute controls High performance, 2 channel, class D amplifier with 20 watts of power per channel and independent volume control USB 3.0 hub with one host port (Type-B) and three device ports (Type-A) Trigger Control Keypad support for easy, single-button, function activation Comprehensive EDID and HDCP management Controllable via front panel controls, RS-232, Telnet, Web GUI, and triggers Inputs  2x HDMI [2x HDMI Uncompressed AV and Data]1x Display Port [1x Uncompressed AV]1x 15pin Dsub [1x VGA RGBHV]2x 3.5mm Stereo mini-jack [2x Analogue Stereo(L/R)]1x 6.35mm Stereo Jack [1x Microphone]1x USB Type B [1x USB  Propriety Data]1x USB Type A [1x Service Port Propriety Data]1x RJ45 [1x IP Control]1x Phoenix (10 pin) [1x Trigger In (8)]1x Phoenix (3 pin) [1x RS-232] Outputs  2x HDMI [2x HDMI Uncompressed AV and Data]2x RCA [1x Analogue Stereo (L/R)]2x Phoenix (2 pin) [1x Speaker Level Stereo Output]2x USB Type A [2x USB Propriety Data] PSU 24V/3.75A Dimensions  231.5mm [W] x 44mm [H] x 158mm [D] Net Weight  1.22kg Gross Weight  2.36kg  Product Stock Category Special Order
