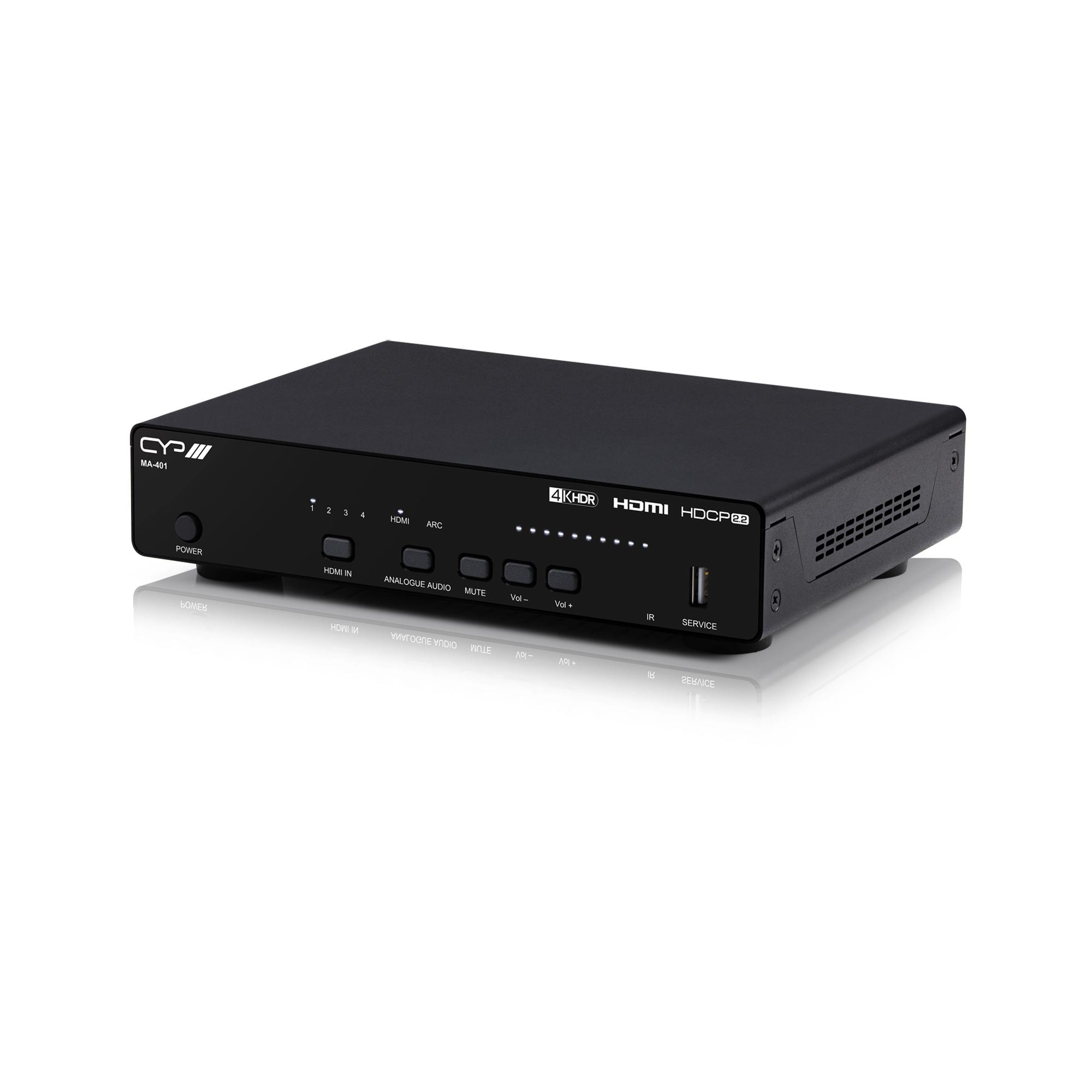

MA-401 – 4×1 HDMI Switcher and Amplifier with AV Control System

Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input / output Supports 10-bit and 12-bit HDR (High Dynamic Range) Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit) Supports CEC Bypass Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio CYP Control APP IR Learning and remote control programming 20w D Class Stereo Power Amplifier 3.5mm Analogue audio Line Level Output Inputs  4x HDMI [4x HDMI  Uncompressed AV and Data]1x RJ45 [1x LAN IR Propriety Data]1x 9pin Dsub [1x RS-232 Data] Outputs  1x HDMI [1x HDMI Uncompressed AV and Data]5x 3.5mm Stereo mini-jack [5x Infra Red Emitter]1x 3.5mm Stereo mini-jack [1x Stereo(L/R)]4x Phoenix (2 pin) [2x Phoenix Speaker Level Stereo Output] PSU 24V/2.7A Dimensions  219mm [W] x 43mm [H] x 156mm [D] Net Weight  1.18kg Gross Weight  2.56kg Product Stock Category Special Order
