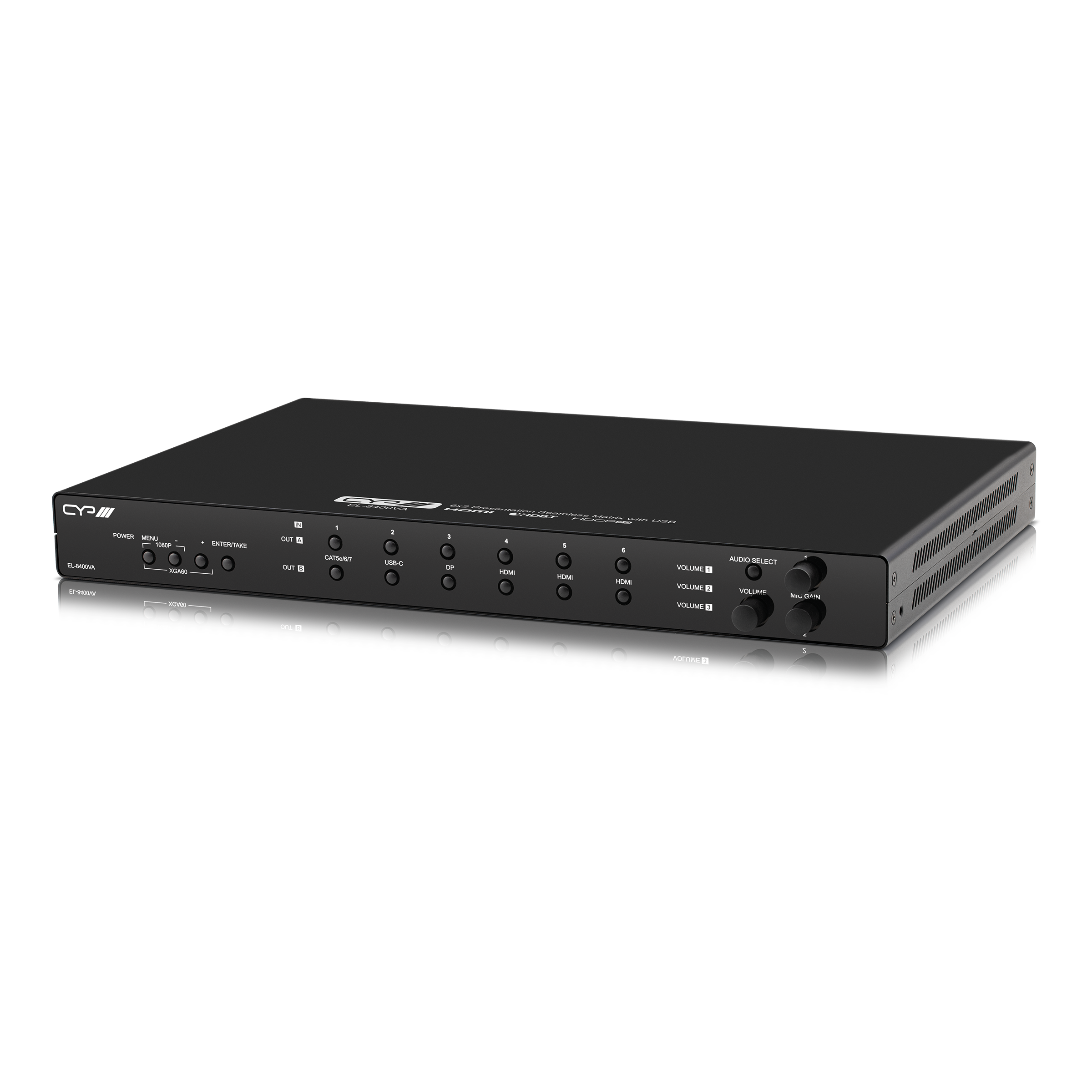

EL-8400VA – 6 x 2 Presentation Seamless Matrix with USB & Audio/Mic I/O plus a built-in audio amplifier

Supports standard PoH (PSE) from both HDBaseT input and output to the connected HDBaseT (PD) transmitter and receiver (compatible transmitter/ receiver only) HDBaseT output transmits video and audio over a single Cat.5e cable of 1080p up to 90m/295ft for input and 70m/230ft for output,Cat.6a cable 100m/328ft at 4K@30 Supports HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, 48V PoH, and Control(Bidirection IR/RS-232/USB pass through) Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI, and triggers USB Type-C port provides up to 60W of power to connected device High performance and efficient Class-D amplifier (20W per channel) Microphone input supports optional 48V or 5V phantom power 6 video inputs (1×USB-C, 1×HDBaseT, 3×HDMI, 1×DisplayPort) and 2 video outputs(HDMI & HDBaseT) 15 audio sources(10 audio inputs and 5 mixers) can be routed independently to any of the 5 audio outputs Audio mixer function allows the mixing of audio from any 4 LPCM 2.0 audio sources, including the microphone inputs with auto-gain functionality Adjustable gain control for individual audio sources and volume control for any outputs Multiple USB hosts may be connected at once (up to 4 total, between the unit and compatible Tx/Rx) with a single selected host active at a time Supports manual input selection or automatic input selection for video and usb, with hot plug detection and “Last Memory” feature Seamless switching (no loss of sync to display) Comprehensive EDID and HDCP management Trigger Control Keypad support for easy, single-button and function activation (Optional) HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12- bit) sources will be automatically color space converted to fit within the available bandwidth Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video input (HDMI, USB-C, DP) and output (HDMI) HDBaseT 2.0 compatible HDMI 2.0, DisplayPort 1.4 compliant HDCP 1.x and 2.2 compliant Inputs 3x HDMI [3x HDMI Uncompressed AV and Data]1x Display Port [1x Display Port Uncompressed AV]1x USB-C [1x USB-C / Thunderbolt]1x RJ45 [1x HDBaseT2 HDMI & Propriety Data]1x Phoenix (5 pin) [1x Dual Microphone inputs]1x Phoenix (5 pin) [1x Analogue Stereo (Balanced or Unbalanced)]1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]1x Phoenix (4 pin) [1x IR I/O connections]1x Phoenix (10 pin) [1x Trigger In (8)]2x USB 3 Type B [2x USB Host Power & Data]1x Phoenix (3 pin) [1x Product Console control RS-232]2x Phoenix (3 pin) [2x HDBaseT Bypass control RS-232]1x RJ45 [1x IP Control & LAN Serving] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x RJ45 [1x HDBaseT2 HDMI & Propriety Data]2x Phoenix (5 pin) [2x Analogue Stereo (Balanced or Unbalanced)]2x Phoenix (2 pin) [1x Speaker Level Stereo Output]1x Phoenix (4 pin) [1x Dual Relays] PSU IEC Dimensions 438mm [W] x 44mm [H] x 270mm [D] Net Weight 4.1kg Gross Weight 5.66kg Product Stock Category Core Product
