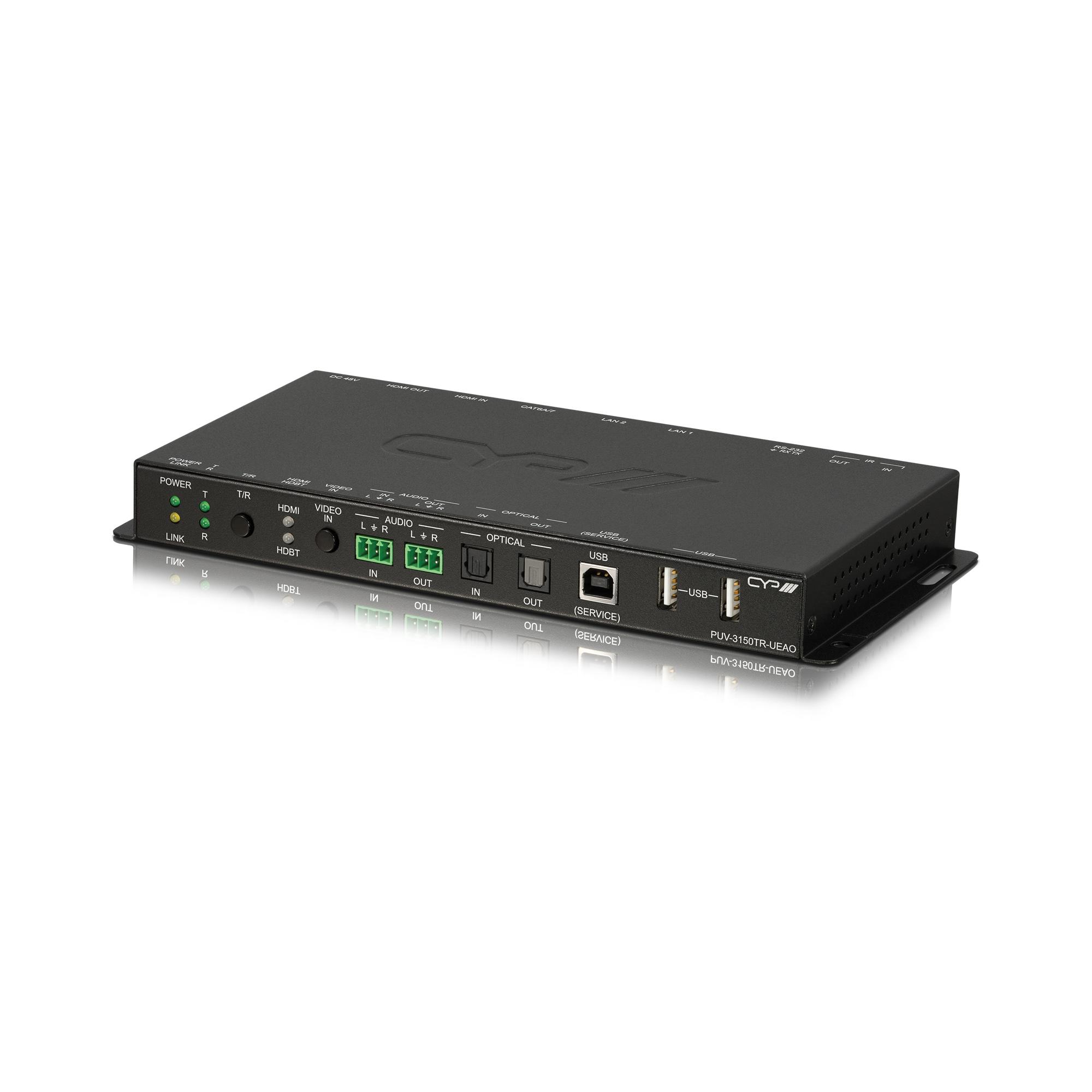

PUV-3150TR-UEAO – HDBaseT3 Full 4K HDMI Transceiver with USB, LAN, PoH, Dual Audio Pathways & HDMI bypass
$21.38
$26.51
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0) HDBaseT extends video, audio and data over a single Cat.6A/7 cable and can reach distances up to 100m/328ft HDBaseT feature support: HD Video and Audio, Gigabit Ethernet, Bi-directional PoH, Bi-directional audio (optical and analogue), and Control (bi-directional USB/IR/RS-232 pass-through) 2 USB 2.0 Type-A device ports and 1 USB 2.0 Type-B host port Selectable HDMI or HDBaseT input in receiver mode HDMI output functions as a local monitor when in transmitter mode Can either receive or provide power via PoH over the HDBaseT connection allowing for flexible installation options Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]2x RJ45 [2x LAN Serving]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x RJ45 [1x HDBaseT 3 (shared port - TX mode HDMI & Propriety Data]1x Phoenix (3 pin) [1x RS-232]1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input]1x Toslink [1x Optical 2 Channel LPCM]1x USB Type B [1x Service Port Propriety Data]2x USB Type A [2x USB pathway Propriety Data] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]1x RJ45 [1x HDBaseT 3 (shared port - RX mode in) HDMI & Propriety Data]1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Output]1x Toslink [1x Optical 2 Channel LPCM] POE PSU PoH PSU 48V/0.83A Dimensions 231.5mm [W] x 25mm [H] x 108mm [D] Net Weight 700g Gross Weight 1.86kg Product Stock Category Core Product
