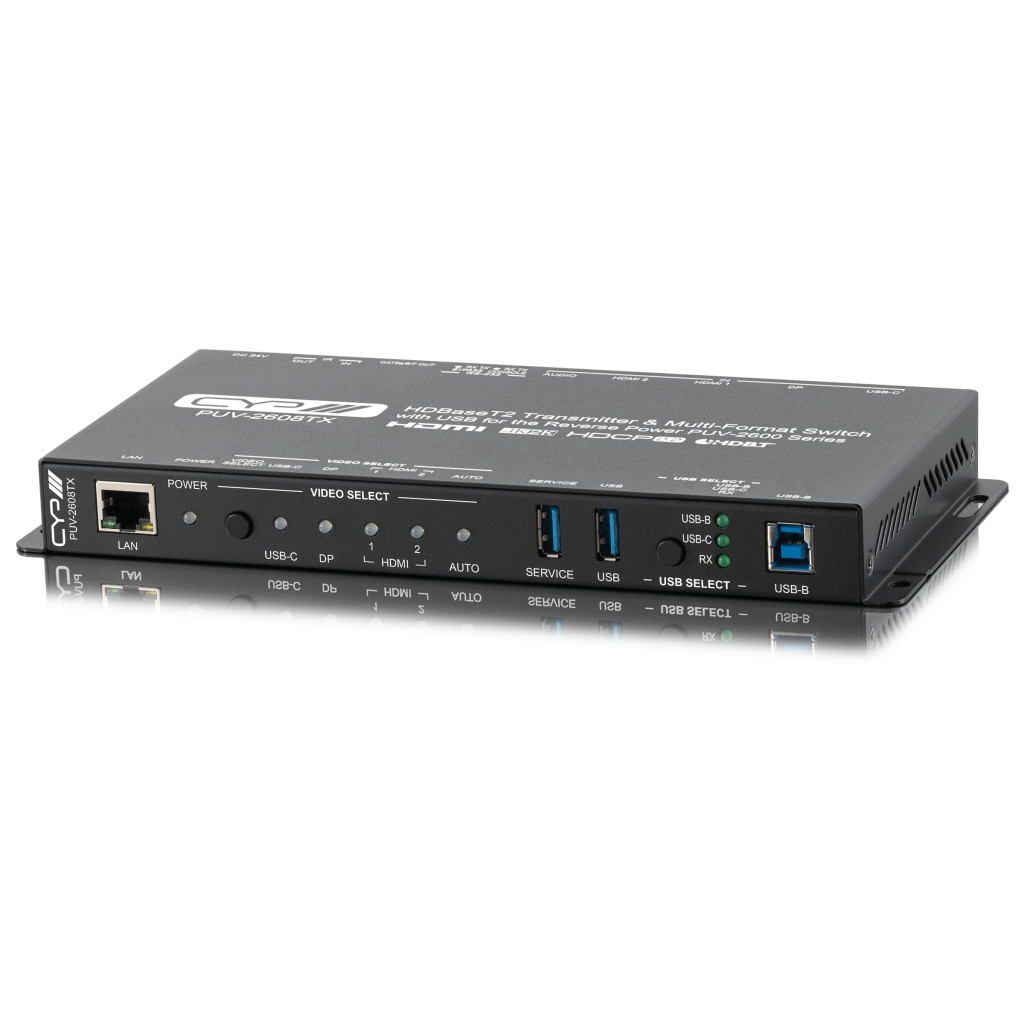

PUV-2608TX – HDBaseT2 Transmitter & Multi-Format Switch with USB for the Reverse Power PUV-2600 Series

HDMI 2.0, DisplayPort 1.4, USB-C, and DVI 1.0 compliant HDCP 1.x and 2.2 compliant 1 HDBaseT output Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input Supports Deep Colour input up to 12-bit Supports 10-bit and 12-bit HDR (High Dynamic Range) input HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) with automatic down conversion to 1080p for any sources that exceed HDBaseT’s bandwidth limitations, such as 4K@60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources Supported HDBaseT feature set: HD Video & Audio, PoH (PD), and Control Extension (Bi-directional IR/RS-232/USB) Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream Analogue audio may be embedded with all sources USB Type-C input can provide power (up to 60W) to any connected device (only available when the unit is powered locally) Per-input EDID management with internal or external EDID options Supports manual input selection or automatic input selection with hot plug detection Basic signal event automation (via RS-232 or CEC) Supports optionally being powered via PoH from a compatible HDBaseT receiver Controllable via front panel button, WebGUI, Telnet, or RS-232 Inputs 2x HDMI [2x HDMI Uncompressed AV and Data]1x Display Port [1x Uncompressed AV]1x USB-C [1x USB-C / Thunderbolt]1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]1x Phoenix (3 pin) [1x Console port RS-232]1x Phoenix (3 pin) [1x Bypass RS-232]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x RJ45 [1x IP Control Propriety Data]1x USB 3 Type B [1x USB Power & Data] Outputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]2x USB Type A [2x USB Propriety Data] POE PSU PoH PSU 24V/3.75A Dimensions 231.5mm [W] x 25mm [H] x 108mm [D] Net Weight 680g Gross Weight 1.88kg Product Stock Category Core Product
