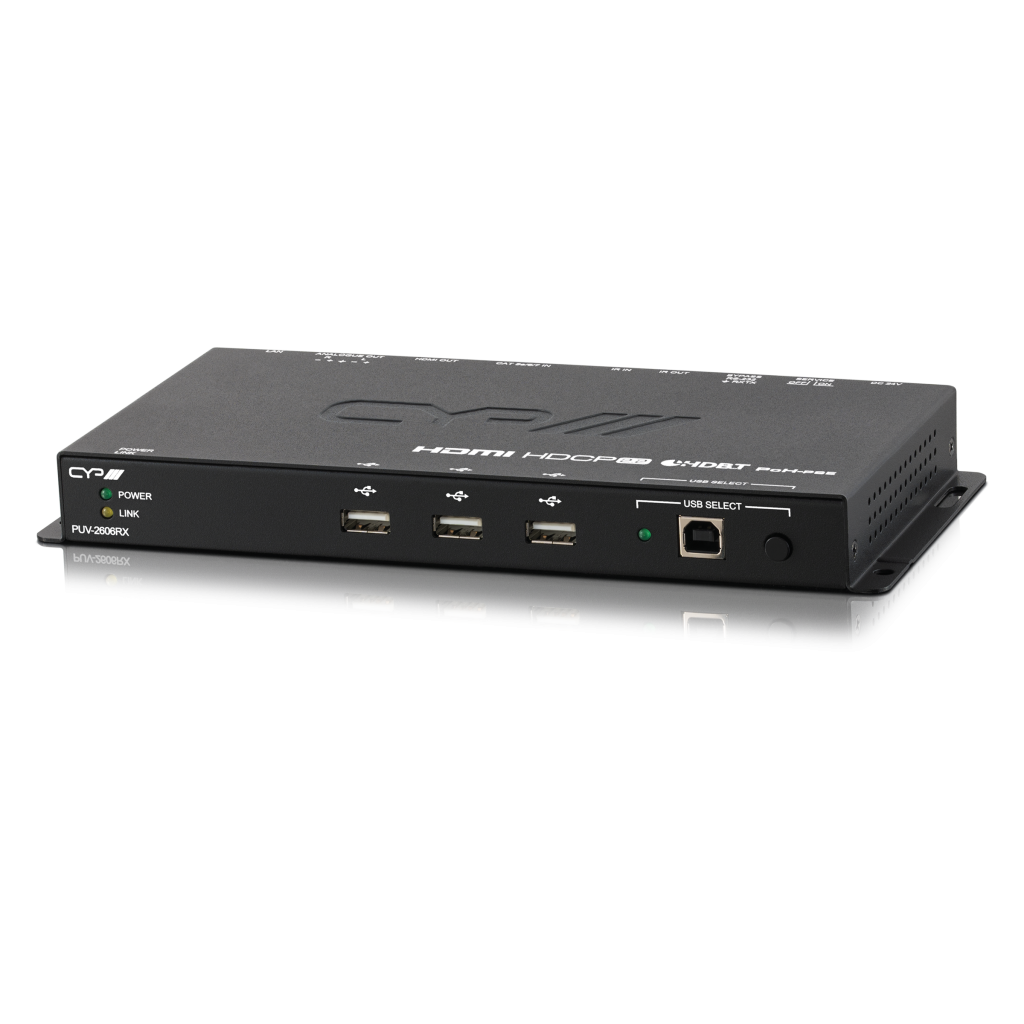

PUV-2606RX – Standard HDBaseT2 Receiver with USB for the Reverse Power PUV-2600 Series

HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant HDBaseT 2.0 compatible 1 HDBaseT input and 1 HDMI output 3 USB 2.0 Type A ports and 1 USB 2.0 Type B port Supports HDBaseT input resolutions up to 4K@60Hz (4:2:0, 8-bit) HDMI output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) HDBaseT input receives video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/230ft at 4K when using Cat.6a/7 HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, PoH (PSE), and control (bi-directional IR/RS-232/USB 2.0) Supports CEC bypass Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI sources Reception of independent analogue stereo audio extension Flexible USB host selection using the front panel button: Note: Multiple USB hosts may be connected at once (up to 2 total, between the Tx and a compatible Rx unit) with a single selected host active at a time Supports local power, or power via PoH from Receiver (PSE) to Transmitter (PD) (compatible Receivers only) Controllable via a front panel button Inputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x USB Type B [1x USB Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x Phoenix (5 pin) [1x Analogue Stereo (Balanced or Unbalanced)]3x USB Type A [3x USB Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]1x RJ45 [1x LAN Serving] PSU 24V/2.7A Dimensions 231.5mm [W] x 25mm [H] x 108mm [D] Net Weight 640g Gross Weight 1.68kg Product Stock Category Core Product
