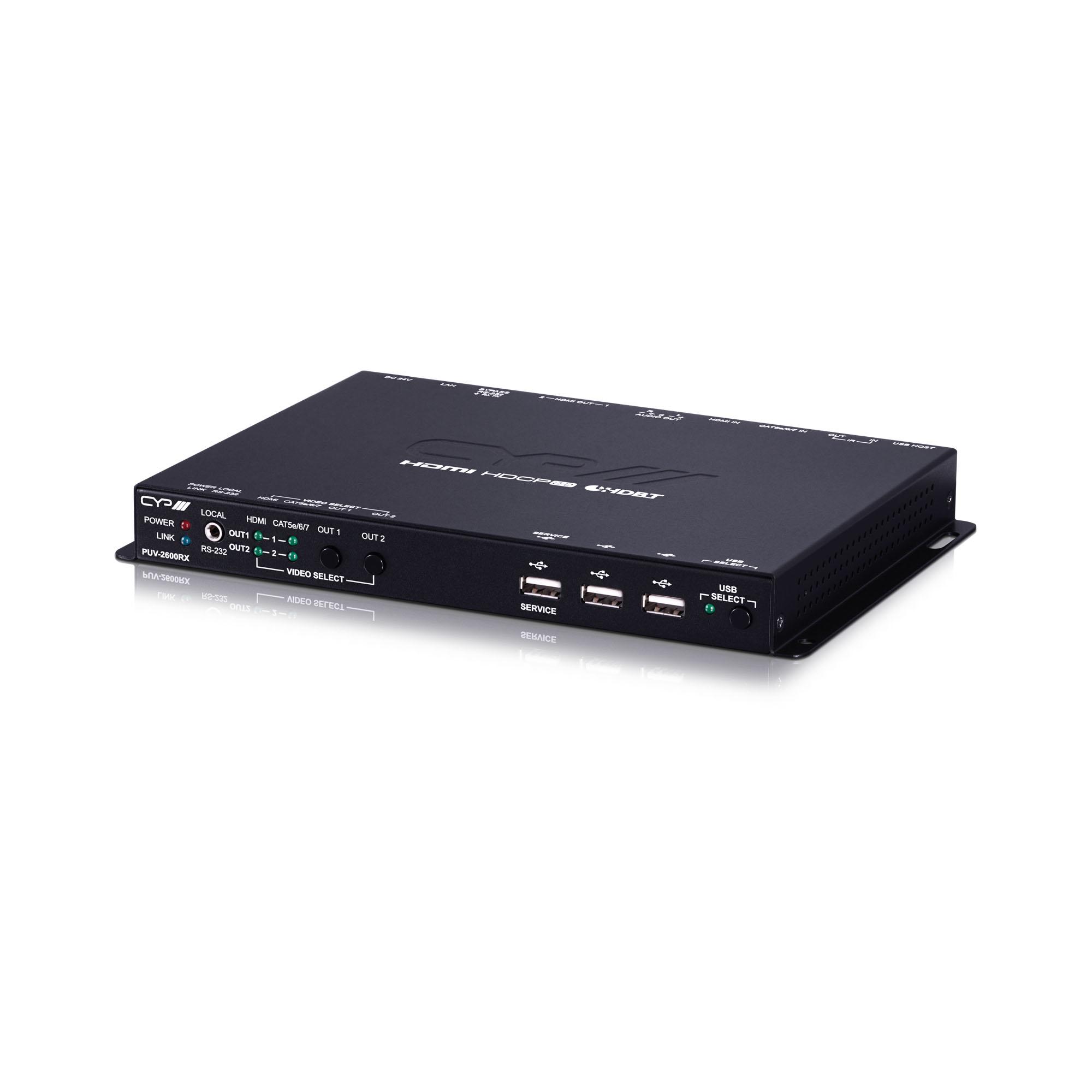

PUV-2600RX – HDBaseT2 Matrix Receiver with USB for the Reverse Power PUV-2600 Series

HDMI with 18Gbps (600MHz), 3D & 4K video support; HDBaseT 2.0 compatible HDCP 1.x & 2.2 compliant Selectable HDMI and HDBaseT inputs HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit) HDBaseT input supports resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) HDMI output supports resolutions up to 4K@60Hz (4:4:4, 8-bit) 2×2 matrix switching (both HDMI outputs are independent) Supported HDBaseT features: HD video and audio, 100BaseT Ethernet, 48V PoH, and control (bidirectional IR/RS-232/USB pass-through) Supports pass-through of LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream audio formats Balanced analogue stereo audio breakout Flexible USB host selection using front panel buttons Multiple USB hosts may be connected at once (up to 3 total, between the Tx and a compatible Rx unit) with a single selected host active at a time Supports 48V PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only) Controllable via front panel buttons, Web GUI, Telnet, and RS-232 Recommended TX: EL-2600V or similar HDBaseT2 product Inputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x RJ45 [1x HDBaseT2 HDMI & Propriety Data]1x RJ45 [1x LAN Serving]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x USB Type B [1x Propriety Data]1x 3.5mm Stereo mini-jack [1x RS-232] Outputs  2x HDMI [2x HDMI Uncompressed AV and Data]1x Phoenix (5 pin) [1x Analogue Stereo (Balanced or Unbalanced)]11x Phoenix (3 pin) [11x RS-232]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]3x USB Type A [3x Propriety Data] PSU 24V/3.75A Dimensions  231.5mm [W] x 25mm [H] x 158mm [D] Net Weight  940g Gross Weight  2.1kg Product Stock Category Core Product
