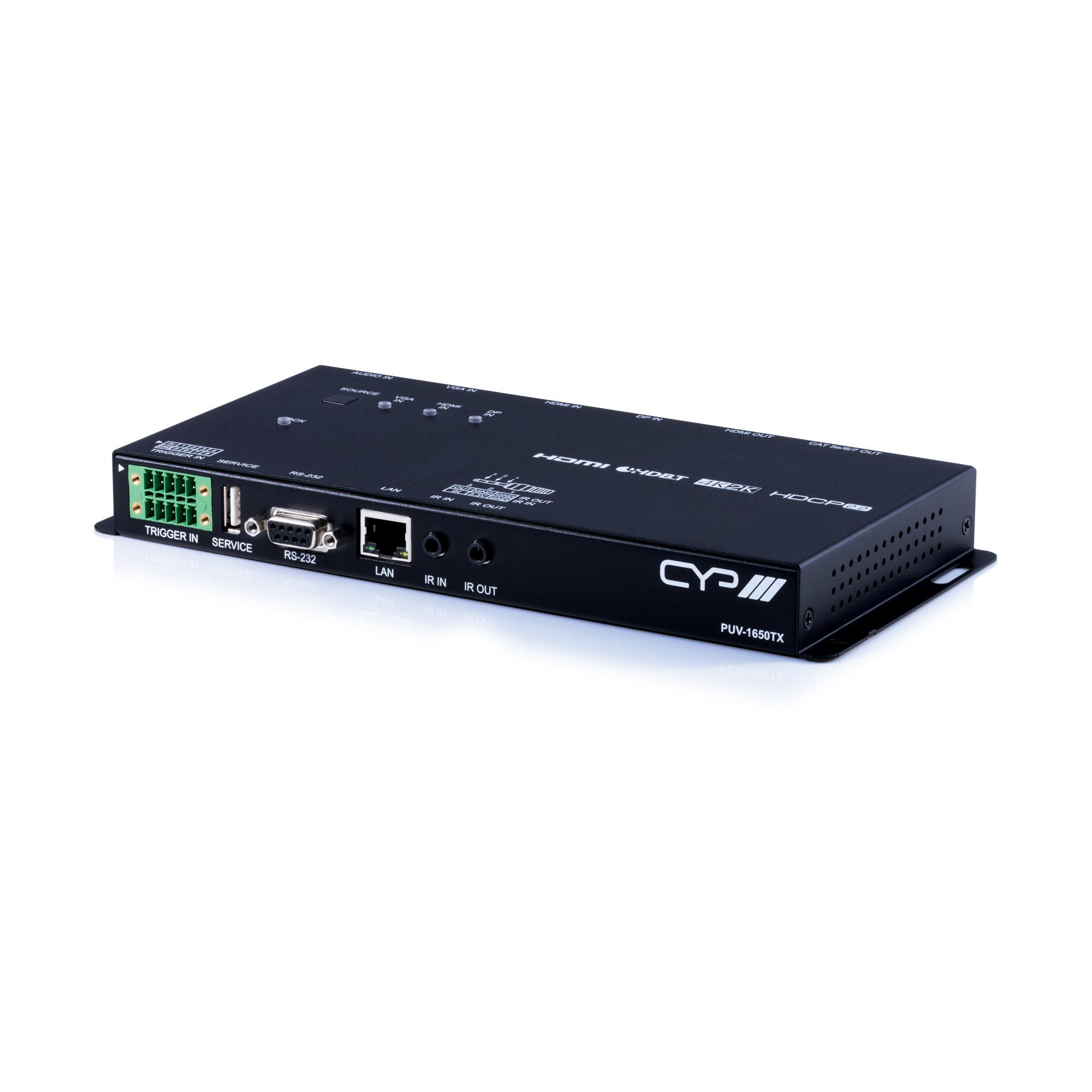

PUV-1650TX – HDBaseT1 multi-format switching Transmitter with Trigger port for the Reverse Power PUV-1600 Series

HDMI, DisplayPort & VGA inputs Input resolution support up to 4K@60Hz (4:4:4 8-bit) HDMI & DisplayPort HDBaseT 5Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-directional IR/RS-232 pass-through) HDCP2.2 Compliant  HDBaseT Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7 Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio Web GUI user programable control interface for timed events within the meeting space: With battery backup Supports HDCP repeating and CEC functions Supports 3D signals OSD, Web GUI, RS232, LAN & Push Button Control IR Learning & Re-transmission of control signals Control Trigger Input Collaboration Mode for easy setup with compatible devices Inputs  1x HDMI [1x HDMI  Uncompressed AV and Data]1x Display Port [1x Display Port Uncompressed AV]1x 15pin Dsub [1x RGBHV]1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]1x Phoenix (10 pin) [1x Trigger In (8)]1x 9pin Dsub [1x RS-232 Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x RJ45 [1x LAN Serving]1x USB Type A [1x Service Port Propriety Data] Outputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] PSU  PoH Dimensions  231.5mm [W] x 25mm [H] x 108mm [D] Net Weight  420g Gross Weight  820g Product Stock Category Special Order
