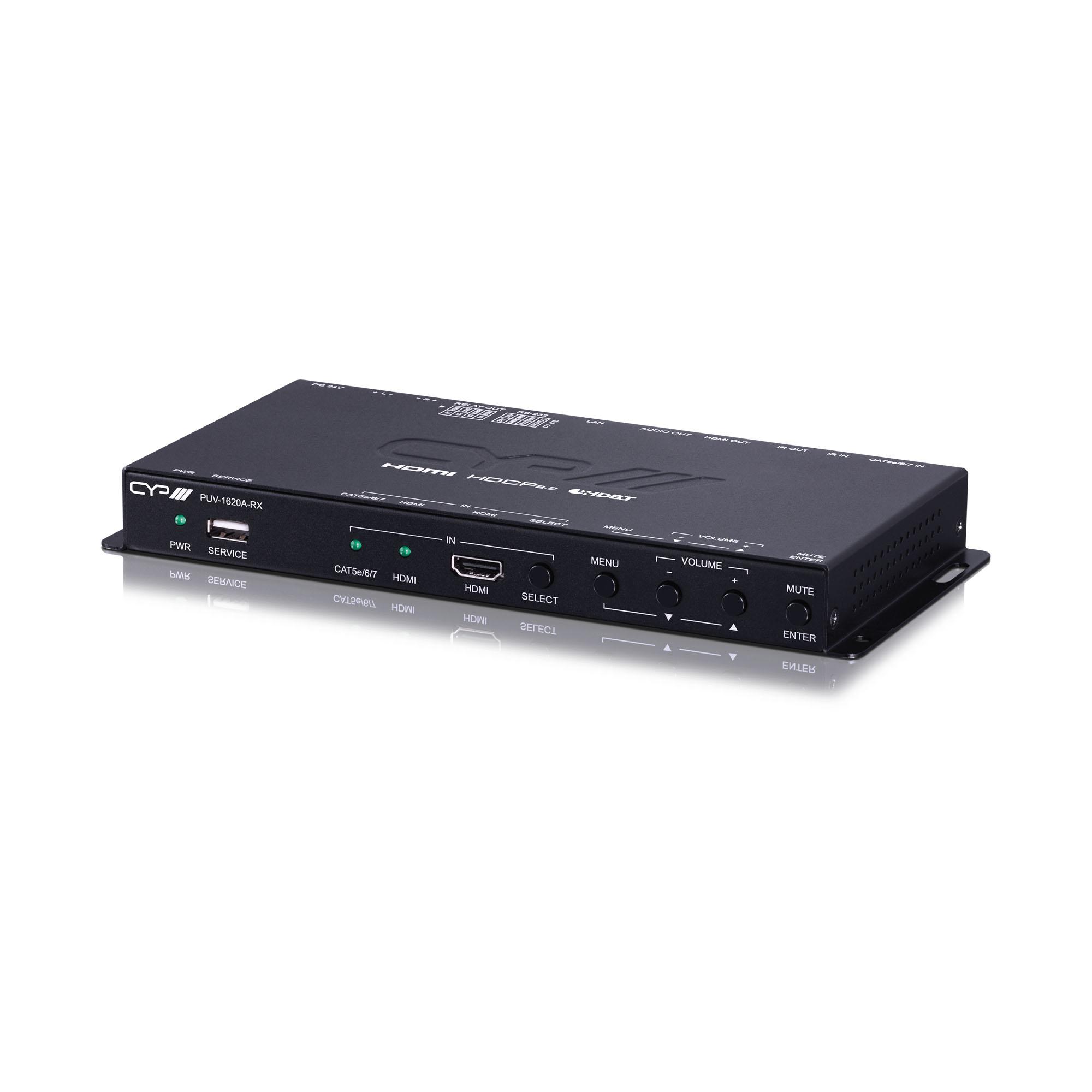

PUV-1620A-RX – HDBaseT1 switching Receiver with built in Amplifier for the Reverse Power PUV-1600 Series

HDMI 2.0 and HDBaseT 1.0 compatible HDCP 1.x and 2.2 compliant 1×HDMI and 1×HDBaseT inputs 1×HDMI output HDBaseT input supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). HDMI input and output supports resolutions up to 4K UHD (18Gbps,4K@60Hz 4:4:4, 8-bit) Supports Deep Colour input and output up to 12-bit at 1080p60 Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output (HDMI bypass only) Supports CEC bypass Comprehensive EDID and HDCP management HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, PoH (PSE) and Control (bi-directional IR/RS-232 pass-through) HDBaseT input receives video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6A/7 Supports standard PoH (PSE) from the HDBaseT input to connected HDBaseT (PD) transmitters (compatible transmitters only) Supports pass-through of HD audio formats including LPCM (up to 8 channels), Bitstream, and HD Bitstream Compact amplifier design High performance and efficient 2 channel, class D amplifier with 20 watts of power per channel and volume control Control via front panel buttons, Web GUI, Telnet, and RS-232 Inputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x Phoenix (3 pin) [1x RS-232]1x USB Type A [1x Service Port Propriety Data] Outputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]2x Phoenix (2 pin) [1x Amplifier Output Speaker Level Stereo Output]1x RJ45 [1x LAN Serving]1x Phoenix (3 pin) [1x RS-232] PSU  24V/3.75A Dimensions  231.5mm [W] x 25mm [H] x 108mm [D] Net Weight  700g Gross Weight  1.96kg  Product Stock Category Core Product
