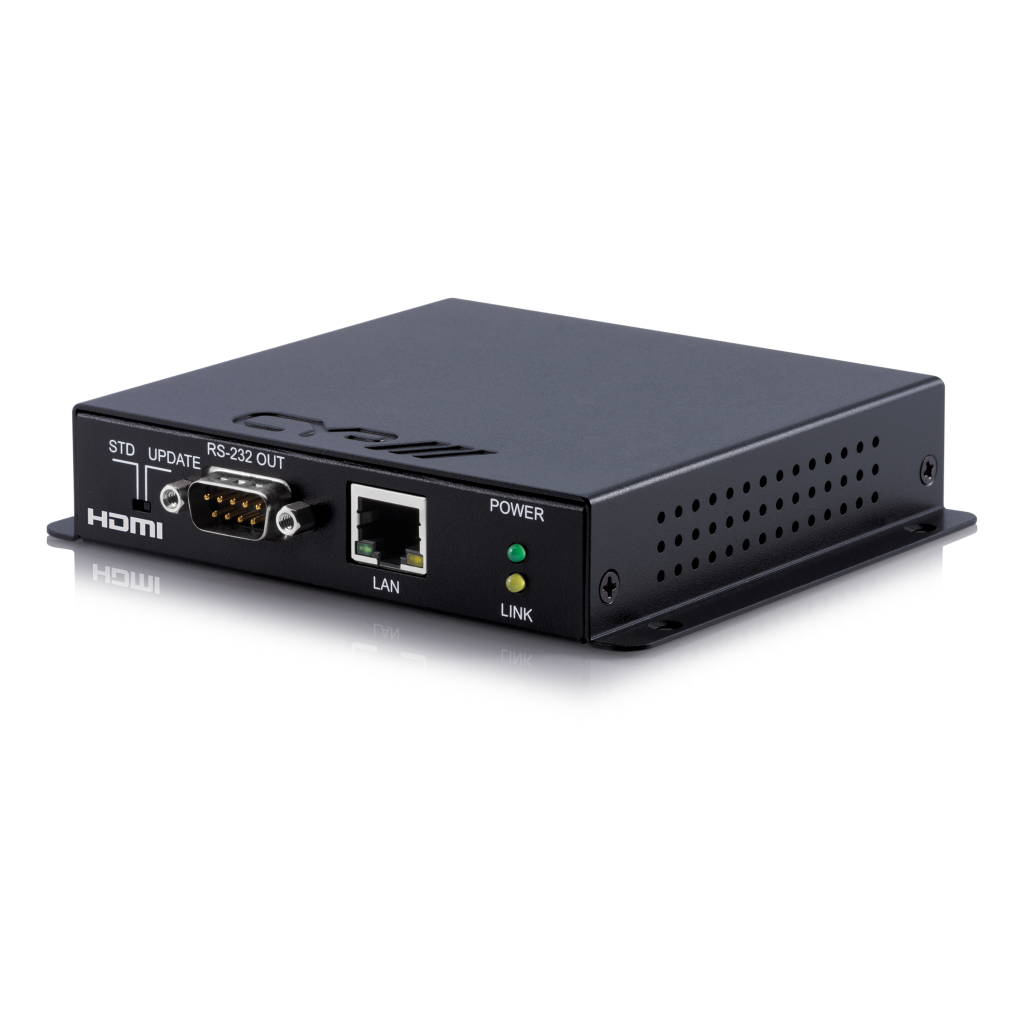

PUV-1610RX – Standard HDBaseT1 Receiver for the Reverse Power PUV-1600 Series
$33.25
$48.21
Supports uncompressed video/audio up to 10.2Gbps Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings HDCP2.2 Compliant Supports HDCP repeating and CEC functions 4K/2K & 4K UHD signals can be received from up to 70m via CAT5e/6 and 100m via CAT6a/7 1080p signals can be received from up to 100m via CAT5e/6/6a/7 Audio support up to 7.1CH & Dolby TrueHD, DTS-HD 5-Play™ convergence: HDMI, LAN, PoH & Control (IR & RS232) Supports 3D signals Inputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x 9pin Dsub [1x RS-232 Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] PSU 48V/0.83A Dimensions 128mm [W] x 25mm [H] x 108mm [D] Net Weight 340g Gross Weight 1.2kg Product Stock Category Core Product
