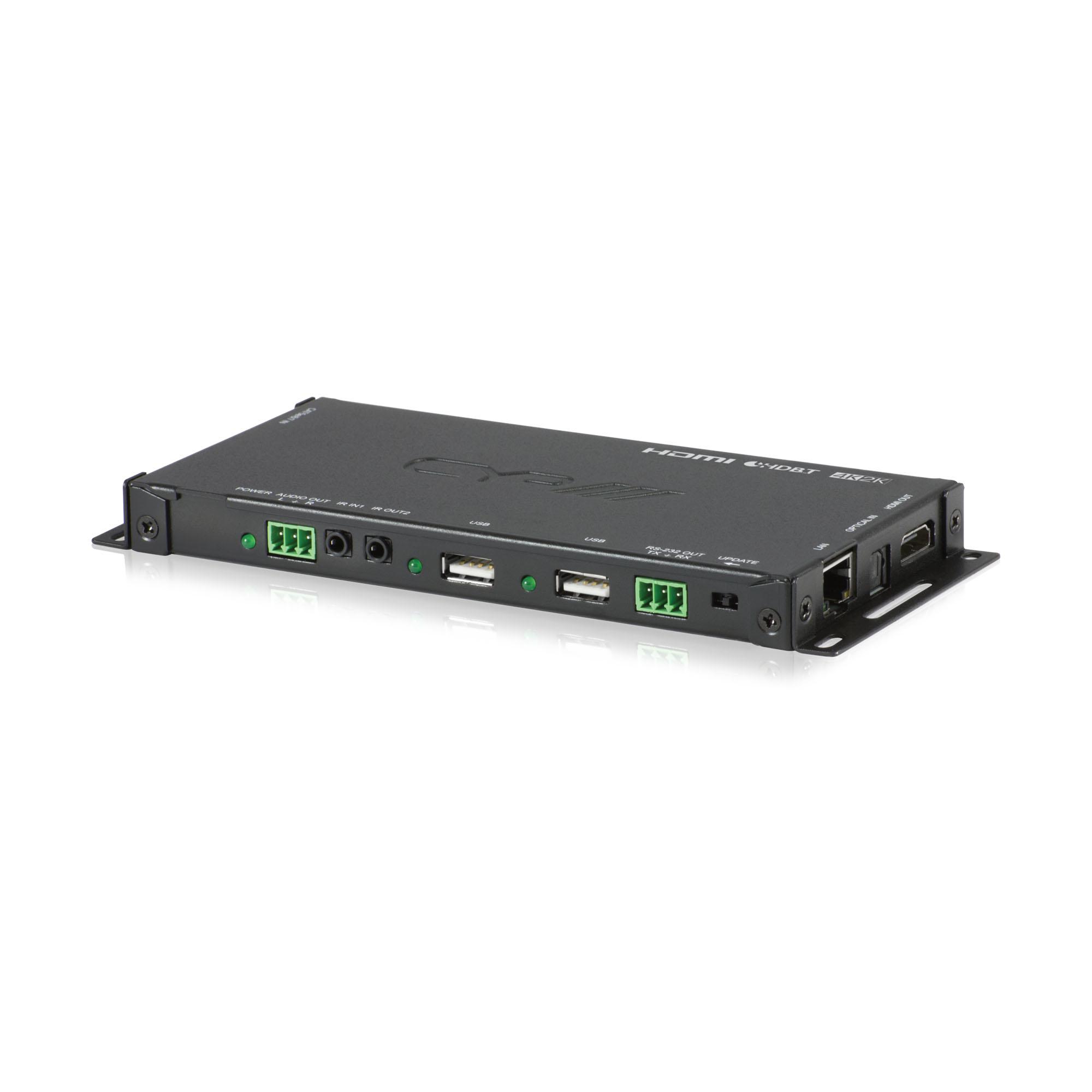

Supports full HDBaseT™ 2.0 specification signals can be received up to a maximum distance of 100m over CAT6a/7 HDCP 2.2, HDMI and DVI compatible HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through) Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio Optical audio return (OAR) Supports optical sampling rate up to 48kHz Audio return channel (ARC) Dedicated channel for analogue stereo audio transmission from a compatible transmitter to receiver. Receiver features 2 x USB 2.0 ports Ultra slim chassis design for ease of installation Inputs 1x RJ45 [1x HDBaseT 2.0 HDMI & Propriety Data]1x Toslink [1x Optical 2 Channel LPCM]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]2x USB Type A [2x USB Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x Phoenix (3 pin) [1x Stereo (L/R) Audio Output]1x Phoenix (3 pin) [1x RS-232] PSU PoH Dimensions 163mm [W] x 16mm [H] x 78mm [D] Net Weight 200g Gross Weight 540g Product Stock Category Core Product
