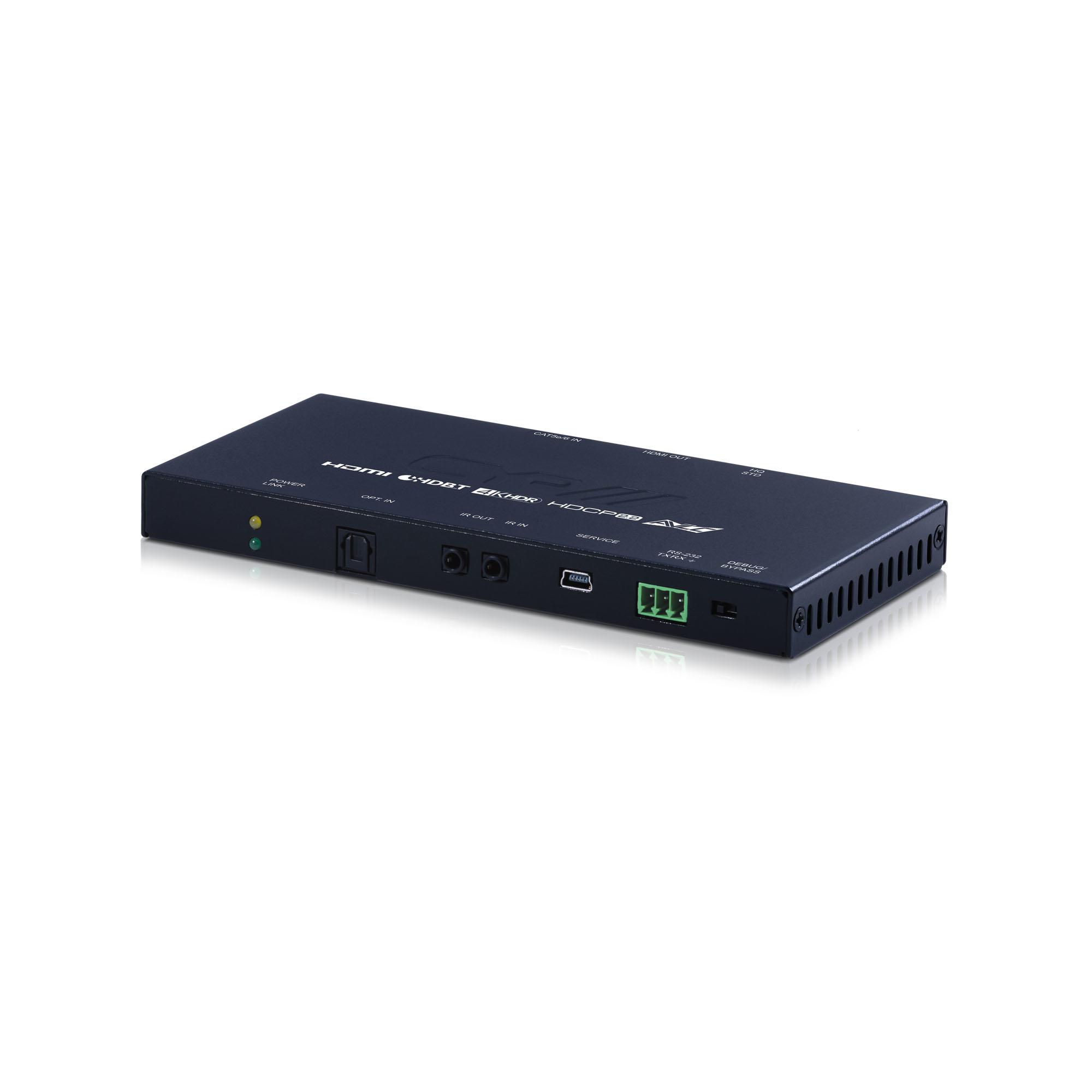

PUV-1730PLRX-AVLC – HDBaseT1 LITE 4K AVLC Series Receiver with OAR & PoH

HDBaseT™ convergence: High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through) Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output AVLC (Adaptive Visually Lossless Compression) AVLC Features manual selection between High Quality and standard compression from TX (Useful for longer cable runs) Supports 10-bit and 12-bit HDR (High Dynamic Range) Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit) Supports Deep Colour input and output up to 12-bit Supports CEC Bypass OAR (Optical Audio Return) returning audio to the TX from the Optical input 4K 3G Timings and 1080p up-to 70 Metres, 4K 6G Timings up to 35 Metres Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio Supports 3D signals Inputs  1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x Toslink [1x OAR pathway DTS / Dolby Digital / 2 Channel LPCM]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] Outputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]1x 9pin Dsub [1x RS-232 Data] PSU PoH Dimensions  163mm [W] x 16mm [H] x 78mm [D] Net Weight  180g Gross Weight  480g Product Stock Category Special Order
