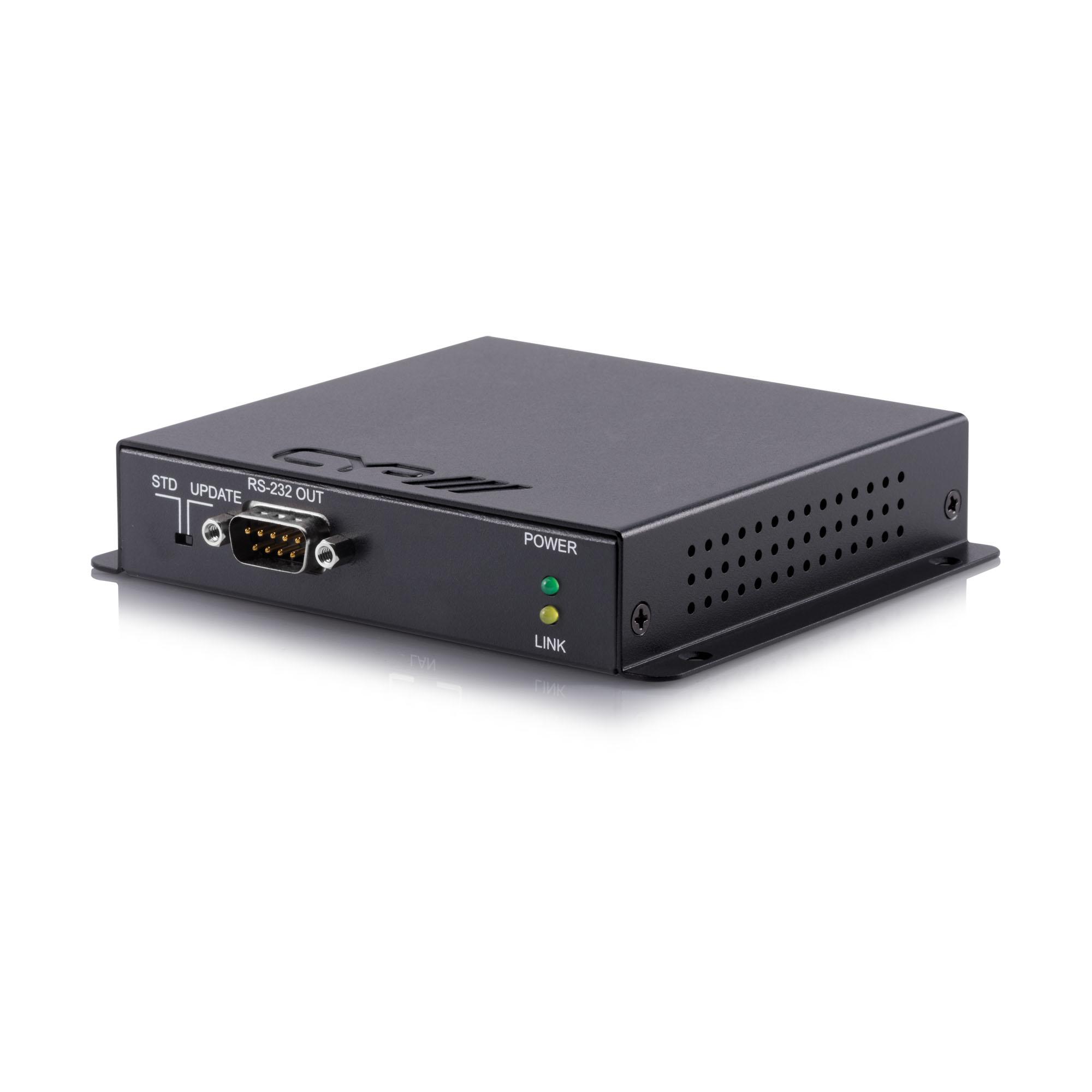

HDCP2.2 Compliant High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through) Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7 Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio Supports HDCP repeating and CEC functions Supports 3D signals Inputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]1x 9pin Dsub [1x RS-232 Data] PSU PoH Dimensions 128mm [W] x 25mm [H] x 108mm [D] Net Weight 200g Gross Weight 400g Product Stock Category Core Product
