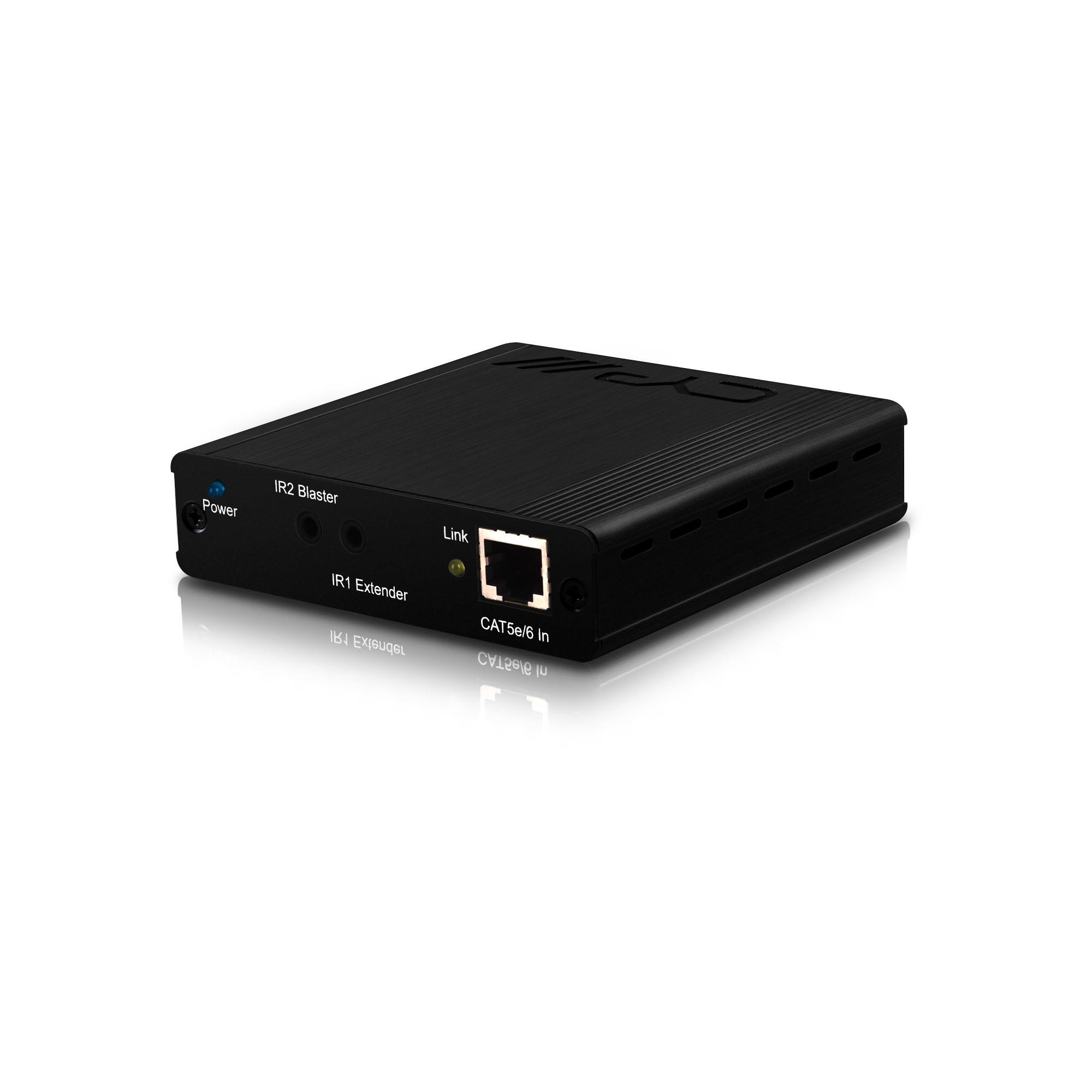

PU-507RX – 5-Play HDBaseT1 (100m) Receiver with LAN & PoC

HDCP 2.2 Compliant Supports all v1.4 HDMI resolutions plus 4k. Supports uncompressed video/audio up to 10.2Gbps Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings HDMI, HDCP, & DVI compliant Supports HDCP repeating and CEC functions Supports 1080p distances up to 100 meters through CAT5e/6 cables Uncompressed video 1080p, 60Hz, 48bits Audio support up to 7.1CH & Dolby TrueHD, DTS-HD 5-Play™ convergence: HDMI, LAN, PoC & Control (IR & RS232) Supports 3D signals Supports 4K/2K & 4K UHD - CAT5e/6 = 70m & CAT6a/7 = 100m Inputs  1x RJ45 [1x HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] Outputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x 9pin Dsub [1x RS-232 Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]1x RJ45 [1x Ethernet (I/O) IP] PSU  PoC Dimensions  102mm [W] x 25mm [H] x 102mm [D]  Net Weight  260g Gross Weight  460g Product Stock Category Core Product
