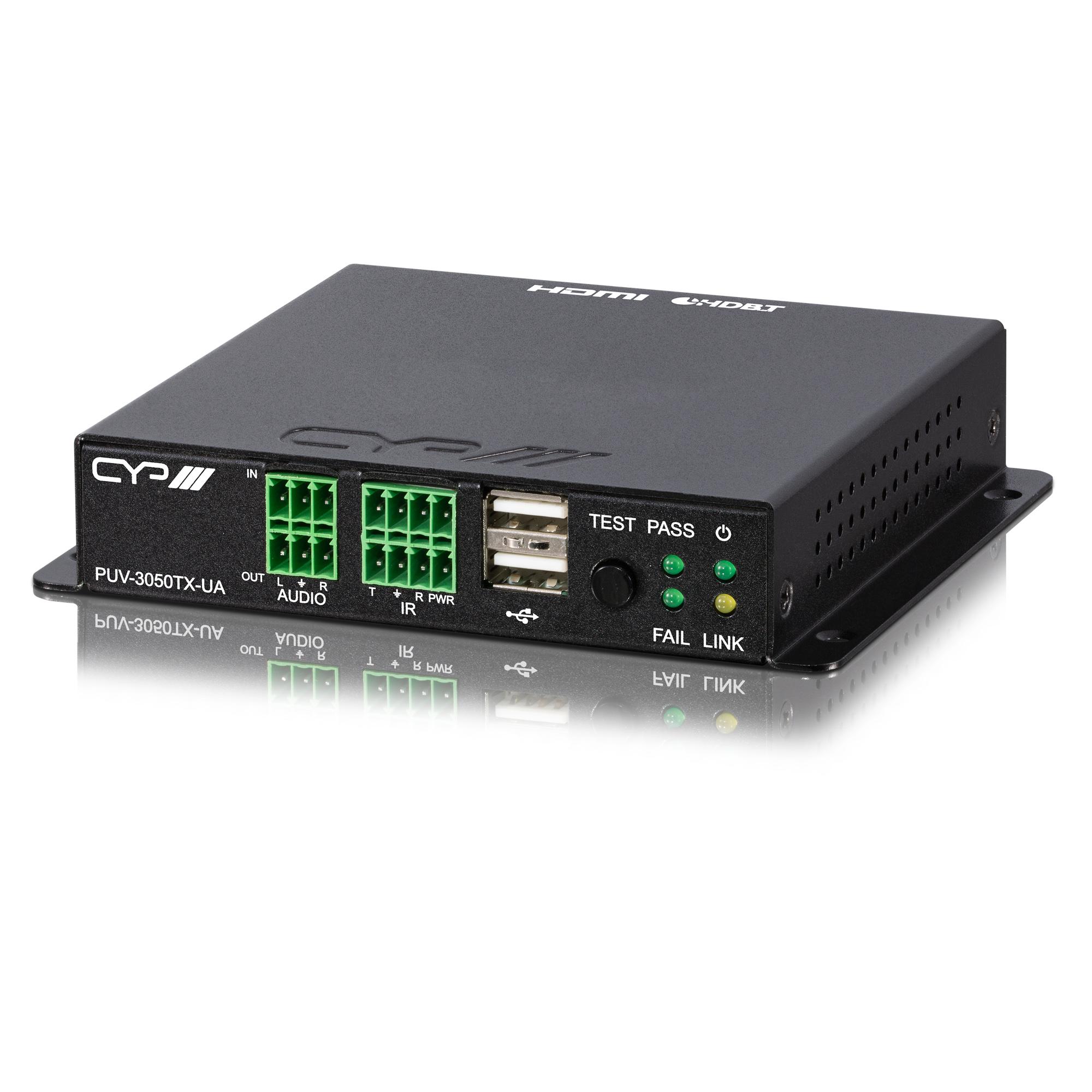

PUV-3050TX-UA – HDBaseT3 Full 4K HDMI Transmitter with USB, PoH, Audio Pathway & HDMI bypass
$25.25
$42.42
Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video over HDBaseT HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0) Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output HDBaseT feature support: HD Video and Audio, Bi-directional analogue audio, and control (bidirectional USB/IR/RS-232 pass-through) USB 2.0 Type-A device ports and 1 Micro USB 2.0 host port Supports providing PoH power from Transmitter to Receiver in same HDBaseT port. Analogue audio I/O pathway across the HDBaseT link Local HDMI output Local analogue audio output (from analogue line in) Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x USB Micro [1x Service Port Propriety Data]1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input]2x USB Type A [2x USB pathway Propriety Data] Outputs 1x HDMI [1x HDMI local bypass Uncompressed AV and Data]1x RJ45 [1x HDBaseT 3 HDMI & Propriety Data]1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Output] PSU 24V/2.7A Dimensions 128mm [W] x 25mm [H] x 108mm [D] Net Weight 400g Gross Weight 1.38kg Product Stock Category Core Product
