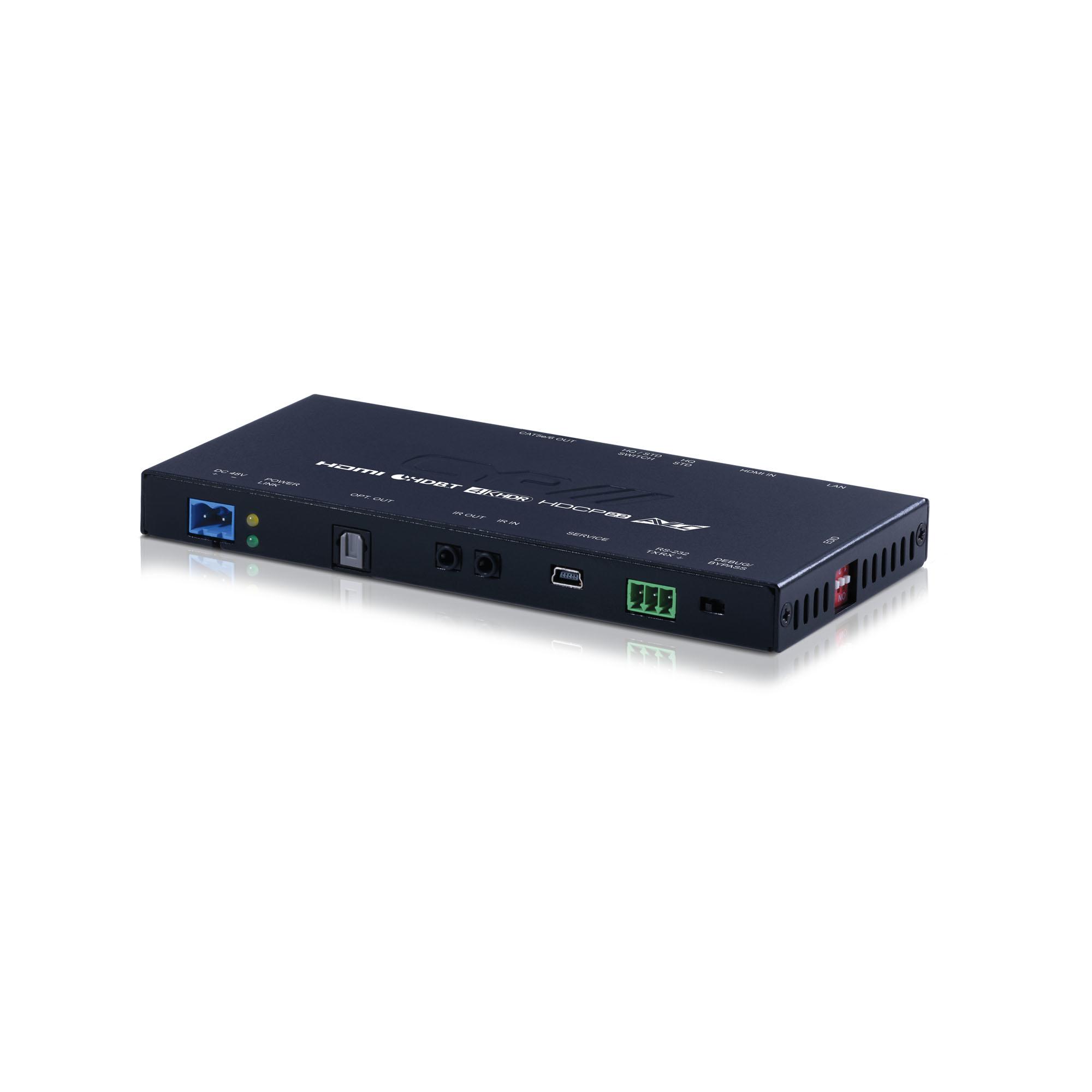

PUV-1830TX-AVLC – HDBaseT1 Full 4K AVLC Series Transmitter with OAR, LAN & PoH

HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through) Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input AVLC (Adaptive Visually Lossless Compression) AVLC Features manual selection between High Quality and Standard compression (Useful for longer cable runs) Supports OAR (Optical Audio Return) Supports 10-bit and 12-bit HDR (High Dynamic Range) Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit) Supports Deep Colour input and output up to 12-bit Supports CEC Bypass 4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings upto 70 Metres Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio Supports 3D signals Inputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x Phoenix (3 pin) [1x RS-232]1x RJ45 [1x LAN Serving]1x USB 3 Type B [1x Service Port Power & Data] Outputs  1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x Toslink [1x Optical 2 Channel LPCM / DTS / Dolby Digital]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] PSU 48V/0.83A Dimensions  163mm [W] x 16mm [H] x 78mm [D] Net Weight  180g Gross Weight    Product Stock Category Special Order
