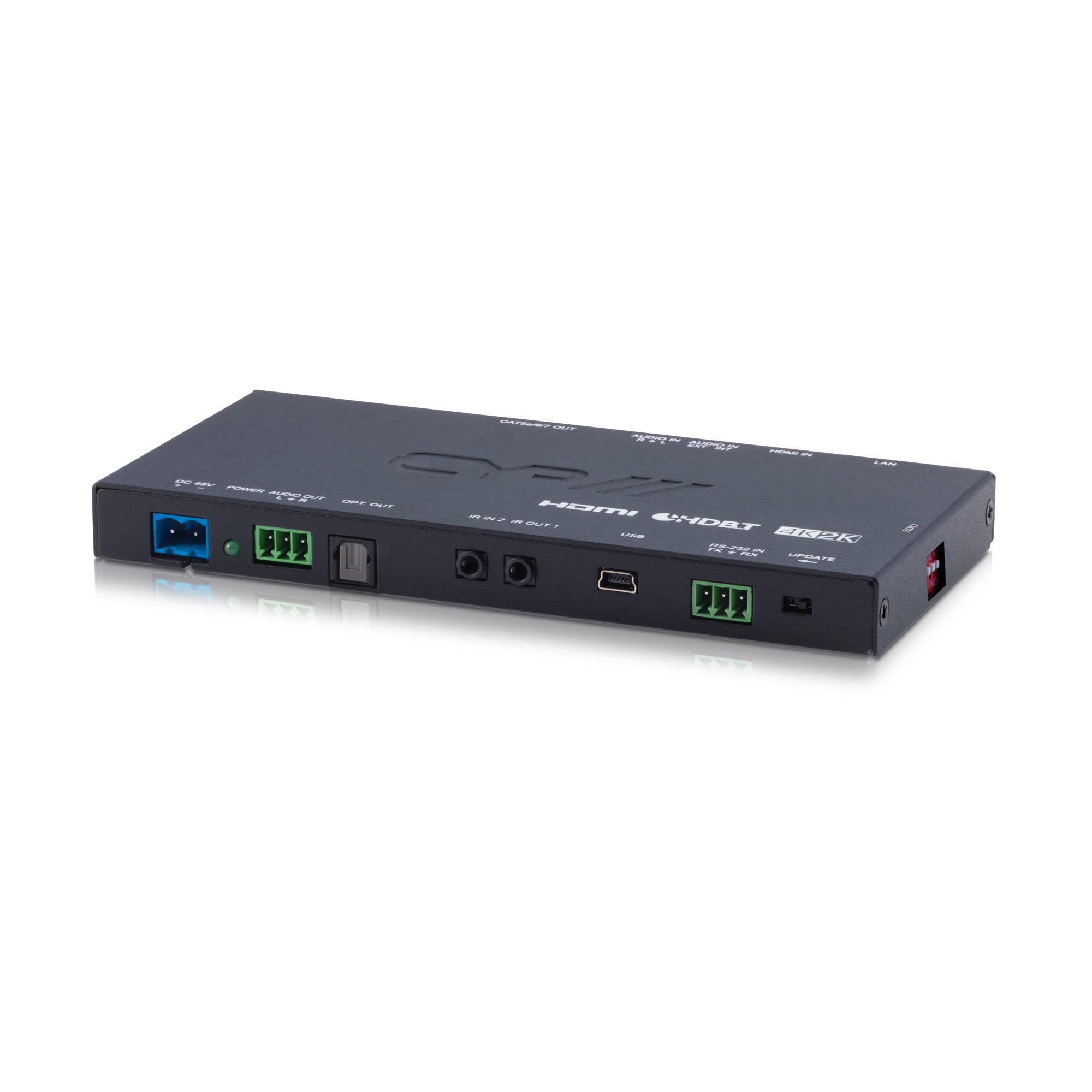

PUV-1530TX – HDBaseT1 Transmitter with LAN, Audio/OAR & PoH

HDCP 2.2 Compliant  HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through) Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7 Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio Optical Audio Return (OAR) Supports HDCP repeating and CEC functions Supports 3D signals Inputs  1x HDMI [1x HDMI Uncompressed AV and Data]1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x Phoenix (3 pin) [1x RS-232]1x RJ45 [1x LAN Serving]1x USB 3 Type B [1x Service Port Power & Data] Outputs  1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Output]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] PSU PoH PSU 48V/0.83A Dimensions  163mm [W] x 16mm [H] x 78mm [D]  Net Weight  200g Gross Weight  1.1kg Product Stock Category Special Order
