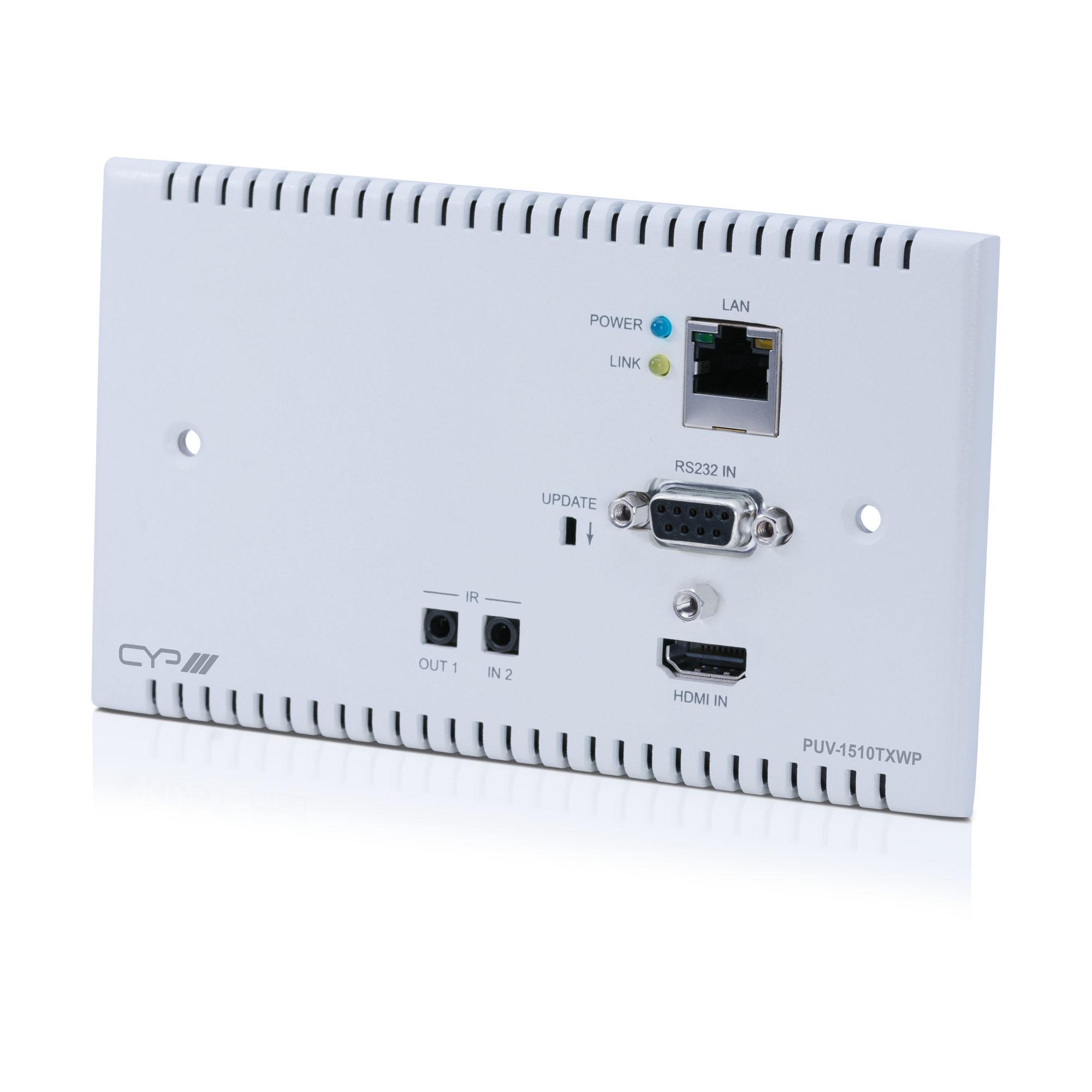

PUV-1510TXWP – HDBaseT1 Wallplate Transmitter with LAN & PoH
$13.6
$22.98
HDCP 2.2 & 1.x Compliant Supports uncompressed video/audio up to 10.2Gbps Supports HDCP repeating and CEC bypass Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7 1080p signals can be transmitted up to 100m via CAT5e/6/6a/7 Supports all common digital audio formats 5Play™ convergence: HDMI, LAN, PoH & Control (IR & RS232) 2-gang UK back box Wall plate version Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x 9pin Dsub [1x RS-232 Data] Outputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]1x RJ45 [1x LAN Serving] PSU 48V/0.83A Dimensions 156mm [W] x 90mm [H] x 38mm [D] Net Weight 0.29kg Gross Weight 0.70kg Product Stock Category Special Order
