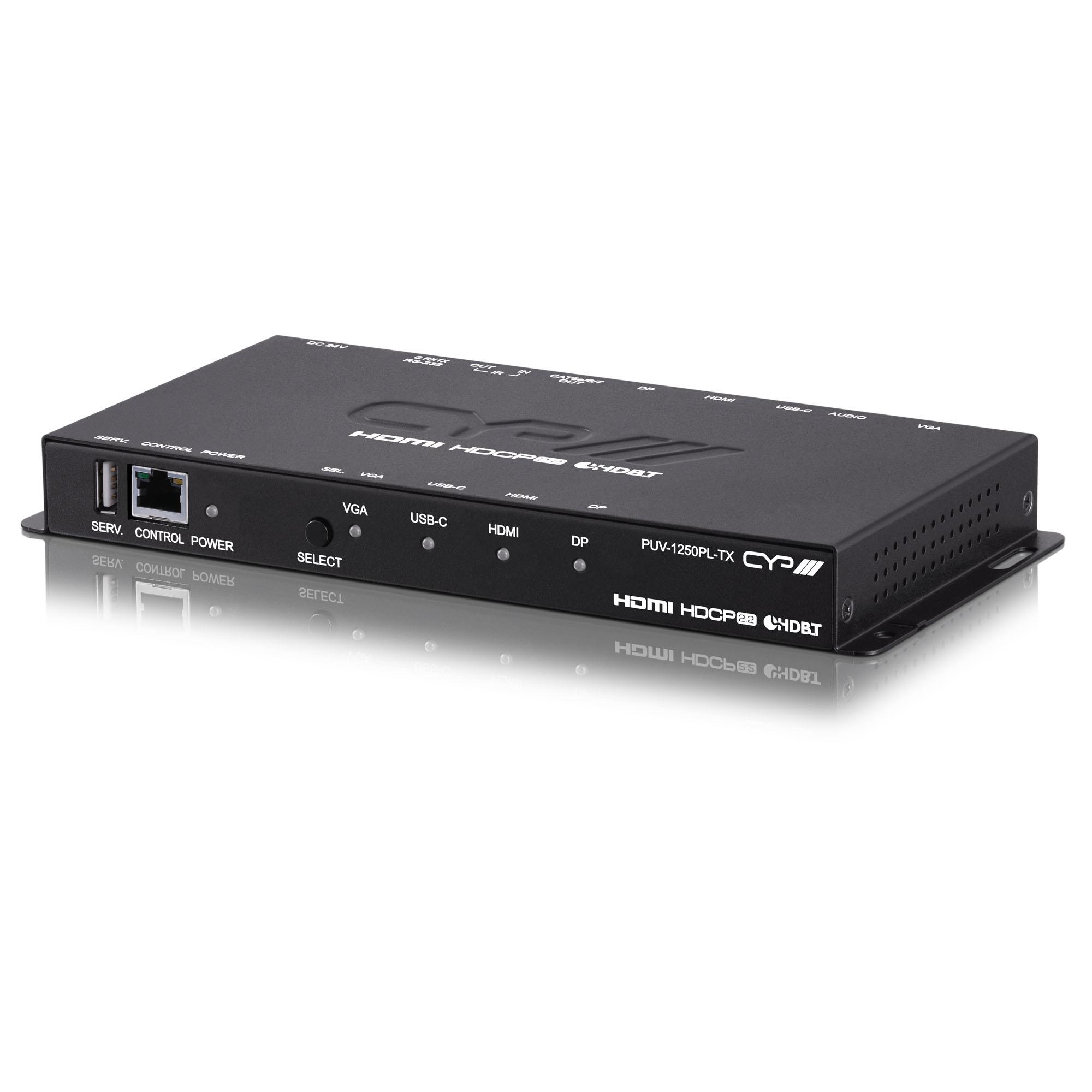

PUV-1250PL-TX – HDBaseT1 LITE multi-format Switching Transmitter

HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources will be automatically converted to 1080p. HDMI 2.0, DisplayPort 1.4, and DVI 1.0 compliant HDMI, DisplayPort, VGA with analogue audio, and USB Type-C inputs Integrated auto-switching across all digital video inputs Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream Signal event automation using CEC commands Comprehensive EDID & HDCP management USB Type-C port provides power (up to 60W) or charge to any compatible device Inputs  1x 15pin Dsub [1x VGA RGBHV]1x USB-C [1x USB-C / Thunderbolt]1x HDMI [1x HDMI Uncompressed AV and Data]1x Display Port [1x Display Port Uncompressed AV]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x Phoenix (3 pin) [1x Local  RS-232]1x Phoenix (3 pin) [1x Remote RS-232]1x RJ45 [1x IP Control]1x USB Type A [1x Service Port Propriety Data] Outputs  1x RJ45 [1x HDBaseT HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] PSU  24V/3.75A Dimensions  231.5mm [W] x 25mm [H] x 108mm [D] Net Weight  660g Gross Weight  1.86kg Product Stock Category Special Order
