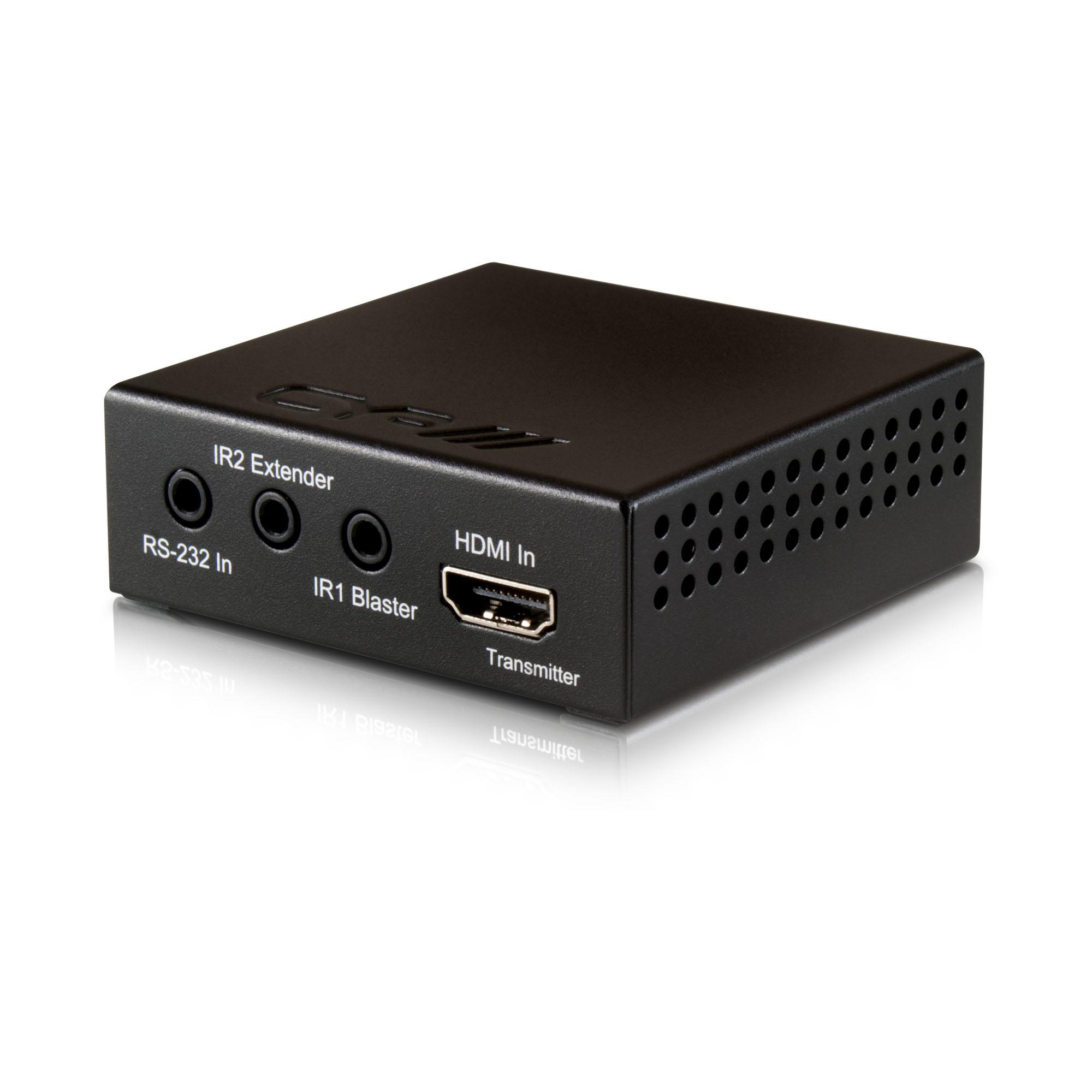

PU-515PL-TX – HDBaseT1 LITE (60m) Transmitter with PoC
$19.18
$28.77
HDCP 2.2 Compliant HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 40m via CAT6a/7 Complies with HDBaseT™- Lite specifications Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings HDMI input up to 15m with 8-bit deep colour, or 10m with 12-bit deep colour Supports HDMI output up to 15m with 8/12-bit deep colour Supports two-way IR, RS-232 Control, and Power Over Cable (PoC) Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]1x 3.5mm Stereo mini-jack [1x RS-232] Outputs 1x RJ45 [1x HDBaseT Lite HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] PSU 24V/1.25A Dimensions 71mm [W] x 23mm [H] x 73.5mm [D] Net Weight 200g Gross Weight 580g Product Stock Category Special Order
