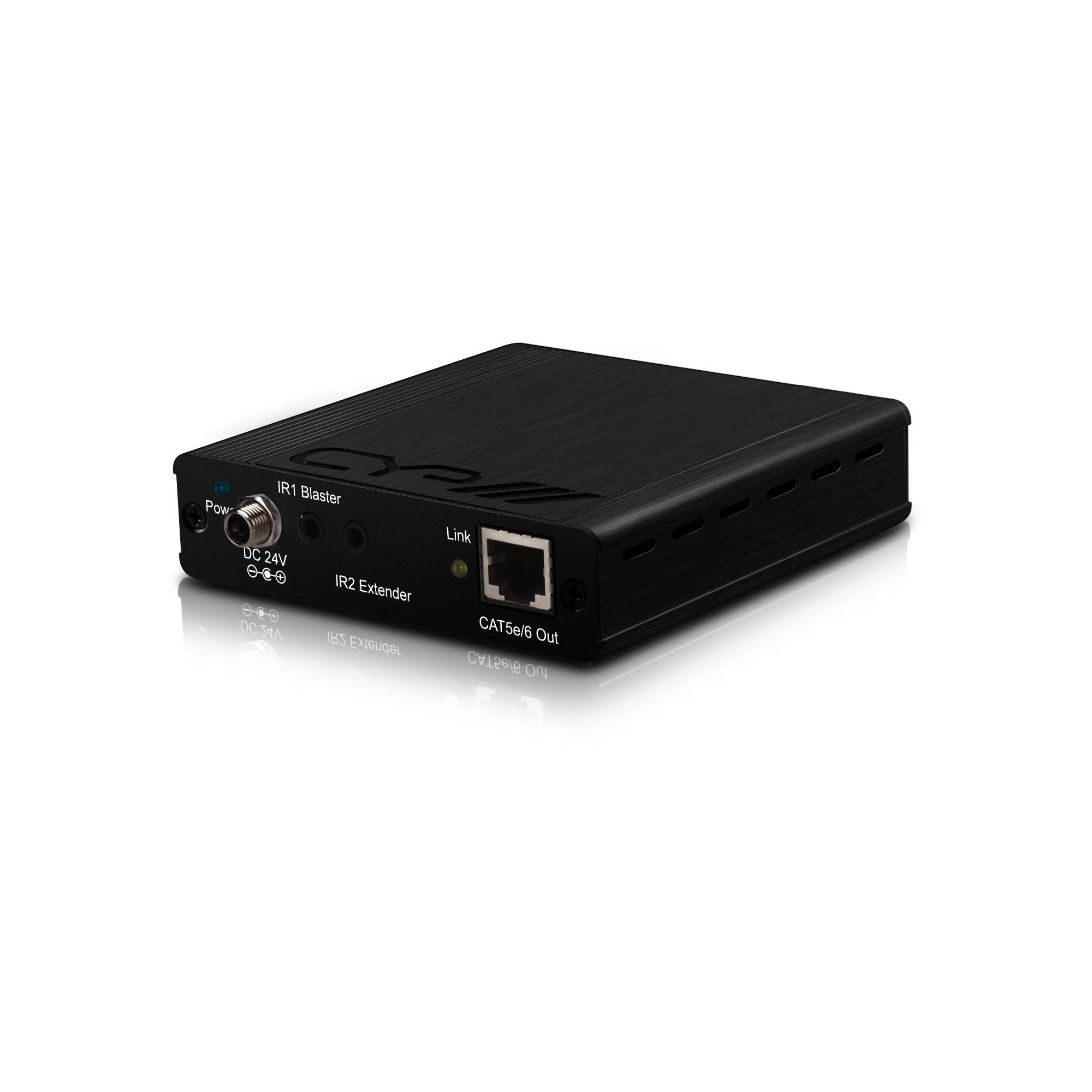

PU-507TX – 5-Play HDBaseT1 (100m) Transmitter with LAN & PoC
$23.57
$46.43
HDCP 2.2 Compliant Supports all v1.4 HDMI resolutions plus 4k. Supports uncompressed video/audio up to 10.2Gbps Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings HDMI, HDCP, & DVI compliant Supports HDCP repeating and CEC functions 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7 1080p signals can be transmitted up to 100m via CAT5e/6/6a/7 Uncompressed video 1080p, 60Hz, 48bits Audio support up to 7.1CH & Dolby TrueHD, DTS-HD 5-Play™ convergence: HDMI, LAN, POE & Control (IR & RS232) Supports 3D signals Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]1x 9pin Dsub [1x RS-232 Data]1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] Outputs 1x RJ45 [1x HDMI & Propriety Data]1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]1x RJ45 [1x Ethernet (I/O) IP] PSU 24V/1.25A Dimensions 102mm [W] x 25mm [H] x 102mm [D] Net Weight 260g Gross Weight 700g Product Stock Category Core Product
